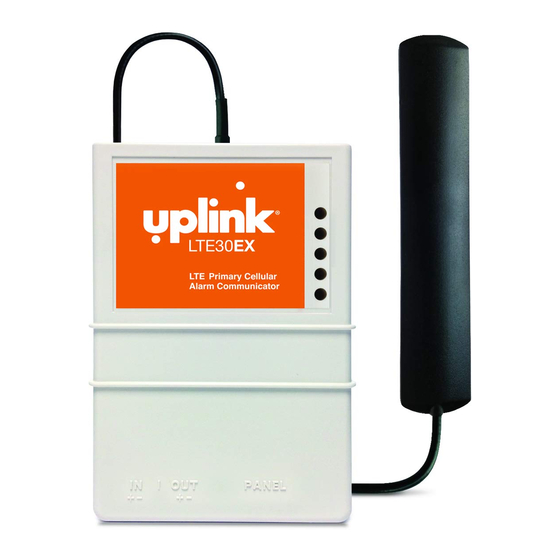

  • Page 1 LTE30EX LTE Primary Cellular Alarm Communicator INSTALLATION & USER’S GUIDE...
  • Page 2 LTE30EX Alarm Communicator © 2017 Uplink Security, LLC. All rights reserved. Uplink is a trademark of Uplink Security, LLC. No part of this publication may be reproduced or used in any form without permission in writing from Uplink. This includes electronic or mechanical means, such as photo- copying, recording, or information storage and retrieval systems.

  • Page 3: Table Of Contents

    B. DIP Switch Settings ..............12 C. LEDs .....................13-14 D. Locating and Installing the LTE30EX ..........15 E. Connecting the LTE30EX to the Alarm Panel ........17 F. Configuring Input 1 ................19 G. Activating the LTE30EX..............21 H. Programming and Central Station Reporting .......22 I.
  • Page 4 LTE Primary Cellular LTE30EX Alarm Communicator...

  • Page 5: Introduction

    Once the LTE30EX completes a communications session with the alarm panel, it will transmit the alarm information using the local LTE cellular communications network.

  • Page 6: Key Features

    • Unit Disabled by Dealer Command • Watchdog Circuit Activation F. Power Source Monitoring (Low DC Input Voltage Reporting). The LTE30EX can report a low input Voltage condition to the central station when its DC input voltage drops below 10.2V DC. It will report Low input Voltage Restoral at 11.4V DC.

  • Page 7: Key Features

    Alarm Communicator KEY FEATURES (cont.) G. Automated Testing. The LTE30EX can be programmed to send an automated test signal to the central station on a monthly, weekly or daily interval. H. LTE Network Supervision. Supervises the local LTE network. If the unit no longer locates the local LTE Network, its output relay can be set up to report this trouble condition.

  • Page 8: Warranty & Limitation Of Liability

    Uplink. Uplink’s warranty does not extend to end user consumers of Uplink products or to other parties not in privity of contract with Uplink and, to the maximum extend permissible under applicable law, Uplink expressly disclaims...

  • Page 9: Warranty & Limitation Of Liability

    IN NO EVENT SHALL UPLINK’S AGGREGATE LIABILITY TO ANY END USER CONSUMER OF AN UPLINK PRODUCT AND/OR SERVICE OR OTHER PARTY NOT IN PRIVITY OF CONTRACT WITH UPLINK ARISING OUT OF OR RELATED TO AN UPLINK PRODUCT AND/OR SERVICE, WHETHER ARISING OUT OF OR...

  • Page 10: Fcc And Regulatory Compliance & Part 15

    LTE Primary Cellular LTE30EX Alarm Communicator FCC & INDUSTRY CANADA REGULATORY COMPLIANCE Part 15 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 11: Fcc Rf Exposure Information

    LTE Primary Cellular LTE30EX Alarm Communicator FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters.

  • Page 12: Technical Support

    Before calling technical support please ensure you have read the installation guide completely. Technical support requires the caller to provide: • Login name • Password • Serial number of the LTE30EX Uplink Security, LLC. 400 Interstate N Pkwy. Suite 1350...

  • Page 13: Installation

    S4 and move the unit to a location that gives him the best signal strength.) b. Proximity to the alarm panel and where to route the LTE30EX relay output that connects to an alarm panel input. B. DIP Switch Settings The LTE30EX has a four-position dipswitch.

  • Page 14: Leds

    +12V (See manual) INSTALLATION (cont.) TELCO TO C. LEDs R R1 PANEL Normal Mode: Upon initial power up, the 5 LEDs on the LTE30EX will begin to function as follows: RJ31X LTE30EX LED Status - Normal Mode SIGNAL FLASH POWER...
  • Page 15 Panel State Detection (See manual) INSTALLATION (cont.) RSSI Mode: When the LTE30EX is placed in Received Signal Strength Indicator T1 T R R1 (RSSI) Mode by turning Dipswitch S4 to ON, the five LEDs indicate the follow signal strength information:...

  • Page 16: Locating And Installing The Lte30Ex

    INSTALLATION (cont.) D. Locating and Installing the LTE30EX The LTE30EX is housed in a plastic enclosure. The installer needs to supply DC power from the panel via the AUX output, or battery, via a separate DC power source. Input DC current is listed on page 25.
  • Page 17 LTE Primary Cellular LTE30EX Alarm Communicator INSTALLATION (cont.) STATUS LEDS DIP SWITCHES FIGURE 1: Model LTE30EX PC Board Details INPUT OUTPUT RJ 45 DC TERMINAL BLOCK CAUTION: Incorrect Connections May Result in Damage to the Unit (INSTALLATION continued next page)

  • Page 18: Connecting The Lte30Ex To The Alarm Panel

    Jack JP3. 3. Output The LTE30EX has one relay output that can be used to activate an input on the alarm panel or for other local purposes. Decide on how to use this output (see section 6. Programming) then wire it from the terminal strip to the external panel...
  • Page 19 +12V (See manual) TELCO TO T1 T R R1 PANEL TO RJ31X LTE30EX LED Status - Normal Mode RECEIVED SIGNAL FIGURE 2: Connections between the LTE30EX and the Alarm Panel FLASH STRENGTH POWER LED1 LED1 PANEL HOOK STATUS LED2 GREEN...

  • Page 20: Configuring Input 1

    F. Configuring Input 1 (Via Over the Air programming) Input 1 can be configured to perform one of four functions and is programmable Over-The-Air via the Uplink Dealer web site. 1. Standard Input - (Default mode) This mode configures the unit to be tripped from a DC voltage ranging from 9 V DC to 12 V DC or an open collector.
  • Page 21 LTE Primary Cellular LTE30EX Alarm Communicator INSTALLATION (cont.) Input 1 if Standard Type FIGURE 3: Wiring example for voltage trip Voltage Trip - Input 1 if set for standard input can be tripped by applying 12 V to the + input and 0 V to the - input.

  • Page 22: Activating The Lte30Ex

    Activation Agreement”. 4. Enter the device serial number and select “Activate”. 6. If you are offering Remote Services, enroll the unit in Uplink Remote. 7. You will be directed to the Edit Unit Settings page, where you will enter all appropriate customer information.

  • Page 23: Programming And Central Station Reporting

    The normal state of the Output Relay can be changed from the dealer website. 4. Output Relay 1 Mapping (Default = #1 Loss of Cellular Service) There are 8 trouble states that can be declared by the LTE30EX, and each of these states can be programmed from the dealer website to activate the Output Relay.

  • Page 24: Default Event/Email Messages

    LTE30EX that can be sent to the central station receiver. See Appendix B for a list of the default event codes transmitted by the LTE30EX. The LTE30EX supports Pulse 4/2 with any combination of :10, :20, or :40 PPS. Two round or checksum, 1400 Hz or 2300 Hz handshake.
  • Page 25 LTE Primary Cellular LTE30EX Alarm Communicator...

  • Page 26: Specifications

    LTE Primary Cellular LTE30EX Alarm Communicator SPECIFICATIONS DIGITAL DIALER INTERFACE Format Compatibility Contact ID, SIA, Modem IIe/IIIa , Pulse 4/2 (:10, :20, or :40 PPS) Connector RJ45 and screw terminals Simulated telco line voltage 48 V DC On-Hook Dial tone 350 + 440 Hz +/- 0.2%...

  • Page 27: Specifications

    LTE Primary Cellular LTE30EX Alarm Communicator SPECIFICATIONS (cont.) RADIO Frequencies 850/1900 MHz Sensitivity -106 dB (typical) ENVIRONMENTAL Temperature Range -30° to +70° C Humidity 0 to 95% non-condensing PHYSICAL Height 2.5 inches Width 5.4 inches Depth 10.5 inches...
  • Page 28 CONTACT ID, SIA EVENT, AND MODEM II /III CODES Following is a list of event codes that can be sent to the central station receiver for events generated by the LTE30EX: EVENT DESCRIPTION CONTACT ID SIA DC-03 MODEM IIe/llla EVENT CODE...
  • Page 29 LTE Primary Cellular LTE30EX Alarm Communicator APPENDIX A: CONTACT ID, SIA EVENT, AND MODEM IIe/IIIa CODES (cont.) EVENT DESCRIPTION CONTACT ID SIA DC-03 MODEM IIe/llla EVENT CODE EVENT CODE Low Temperature Restoral R159 Medical Alarm E100 Medical Restoral R100 Opening...

  • Page 30: Appendix B: Lte30Ex Default Event Codes

    Alarm Communicator APPENDIX B: LTE30EX DEFAULT EVENT CODES The LTE30EX is defaulted to send both the Alarm/Trouble condition and the Restoral condition for all of the events listed below. Reporting of individual events can be controlled from the Dealer Website.
  • Page 31 Alarm Communicator UPLINK LTE30EX LTE PRIMARY ALARM COMMUNICATOR INSTALLATION, OPERATION AND PROGRAMMING GUIDE © 2017 Uplink Security, LLC. All rights reserved. Uplink is a trademark of Uplink Security, LLC. UPLINK SECURITY, LLC. 400 INTERSTATE N PKWY. SUITE 1350 ATLANTA, GEORGIA 30339 888-987-5465 (888-9-UPLINK) WWW.UPLINK.COM...
  • Page 32 FOR SALES, PRODUCT INFORMATION & TECHNICAL SUPPORT Uplink Security, LLC. 400 Interstate N Pkwy. Suite 1350 Atlanta, Georgia 30339 1-(888) 9-UPLINK, 1-(888)-987-5465 Fax 1-(888)-542-9105 sales@uplink.com www.uplink.com...
