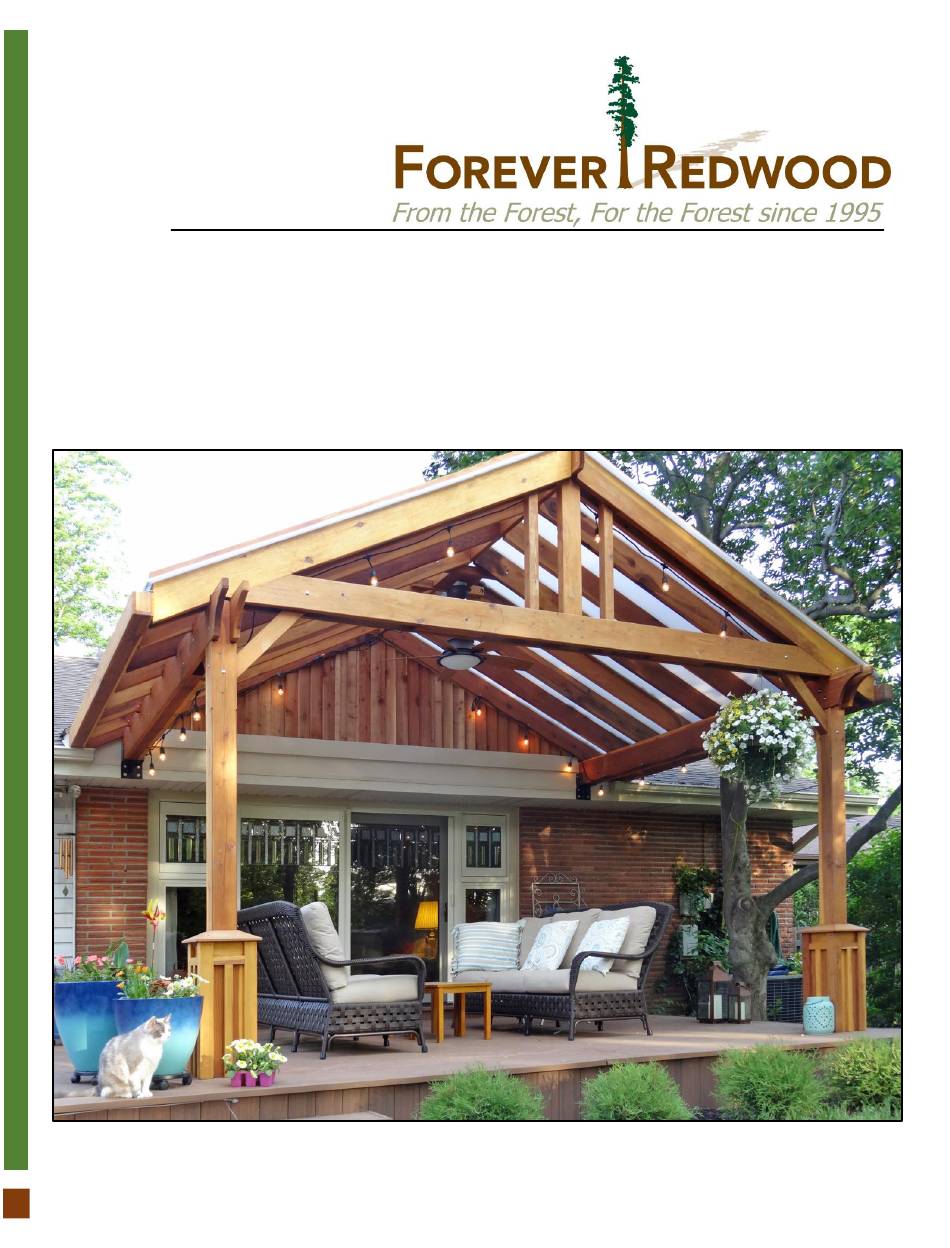

- Page 1 866.332.2403 (TOLL FREE); 7am – 7pm Pacific Time, Monday-Saturday ASSEMBLY INSTRUCTIONS FOR THE THE ILLUMINATI PORCH PAVILION...
- Page 2 P| 1 THE ILLUMINATI PORCH PAVILION www.ForeverRedwood.com...
- Page 3 P| 2 THE ILLUMINATI PORCH PAVILION www.ForeverRedwood.com...
- Page 4 P| 3 THE ILLUMINATI PORCH PAVILION www.ForeverRedwood.com...
- Page 5 P| 4 THE ILLUMINATI PORCH PAVILION www.ForeverRedwood.com...
- Page 6 All options of posts (No posts decorative trim, vertical posts decorative trim and horizontal posts decorative trim) will be installed in the same way. Step 2: Attach the wall mounted anchors (15) to the wall with ½´´ X 4 ´´ anchor bolts or lag bolts (C). P| 5 THE ILLUMINATI PORCH PAVILION www.ForeverRedwood.com...
- Page 7 Step 4: Put up the supports with in-between blocking (3), into the post notches as shown and attach to the posts with the single support bolts. Each part has a series of numbers that indicate where to attach the part with the corresponding number. P| 6 THE ILLUMINATI PORCH PAVILION www.ForeverRedwood.com...
- Page 8 3/8´´ X 6´´ Bolts Step 6: Use 5/16´´ x 3´´ lag bolts (B) to attach the wall mounted anchors (15) to the supports. 5/16´´ X 3´´ Lag Bolts P| 7 THE ILLUMINATI PORCH PAVILION www.ForeverRedwood.com...
- Page 9 Step 8: Attach the main knee braces (5) to the posts with 3/8´´ x 8´´ bolts (H) and to the supports with 3/8´´ x 6´´ Bolts (D). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´ X 6´´ Bolts 3/8´´ X 8´´ Bolts P| 8 THE ILLUMINATI PORCH PAVILION www.ForeverRedwood.com...
- Page 10 Step 10: Put the roof beam (7) into the triangle notch, as shown. After that, use 3” deck screws + (E) to attach the triangle to the roof beam. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3´´ Deck Screws + P| 9 THE ILLUMINATI PORCH PAVILION www.ForeverRedwood.com...
- Page 11 2´´ deck screws □ with neoprene washers (F). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 2´´ Overlapping 2´´ Deck Screws □ With Neoprene washers P| 10 THE ILLUMINATI PORCH PAVILION www.ForeverRedwood.com...
- Page 12 Step 14: Attach the cover trims (10) to the polycarbonate sheets & rafters, use 3´´ deck screws □ with neoprene washers (G). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3´´ Deck Screws □ With Neoprene washers 3´´ Deck Screws □ With Neoprene washers P| 11 THE ILLUMINATI PORCH PAVILION www.ForeverRedwood.com...
- Page 13 5/16´´ X 3 ½´´ Bolts Step 16: Attach the curtain rod bases (16) to the posts with 2 ½´´ deck screws (J). 2 ½´´ Deck Screws P| 12 THE ILLUMINATI PORCH PAVILION www.ForeverRedwood.com...
- Page 14 Step 17: Place the curtain rod (12) on the curtain rod bases. Step 18: Finally, attach the boots (13) to each post with 3’’ deck screws + (E). 3´´ Deck Screws + P| 13 THE ILLUMINATI PORCH PAVILION www.ForeverRedwood.com...
- Page 15 This completes the Pavilion assembly. Hope you enjoy your set for many decades. If you ever have a problem or a question, don't hesitate to call us (866 332 2403) or email us. We are here to support you. P| 14 THE ILLUMINATI PORCH PAVILION www.ForeverRedwood.com...
