866.332.2403 (TOLL FREE); 7am – 7pm Pacific Time, Monday-Saturday
ASSEMBLY INSTRUCTIONS FOR THE
ARCHED THICK TIMBER PAVILION

Advertisement

loading
Need help?

Need help?

Do you have a question about the ARCHED THICK TIMBER PAVILION and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Forever Redwood ARCHED THICK TIMBER PAVILION

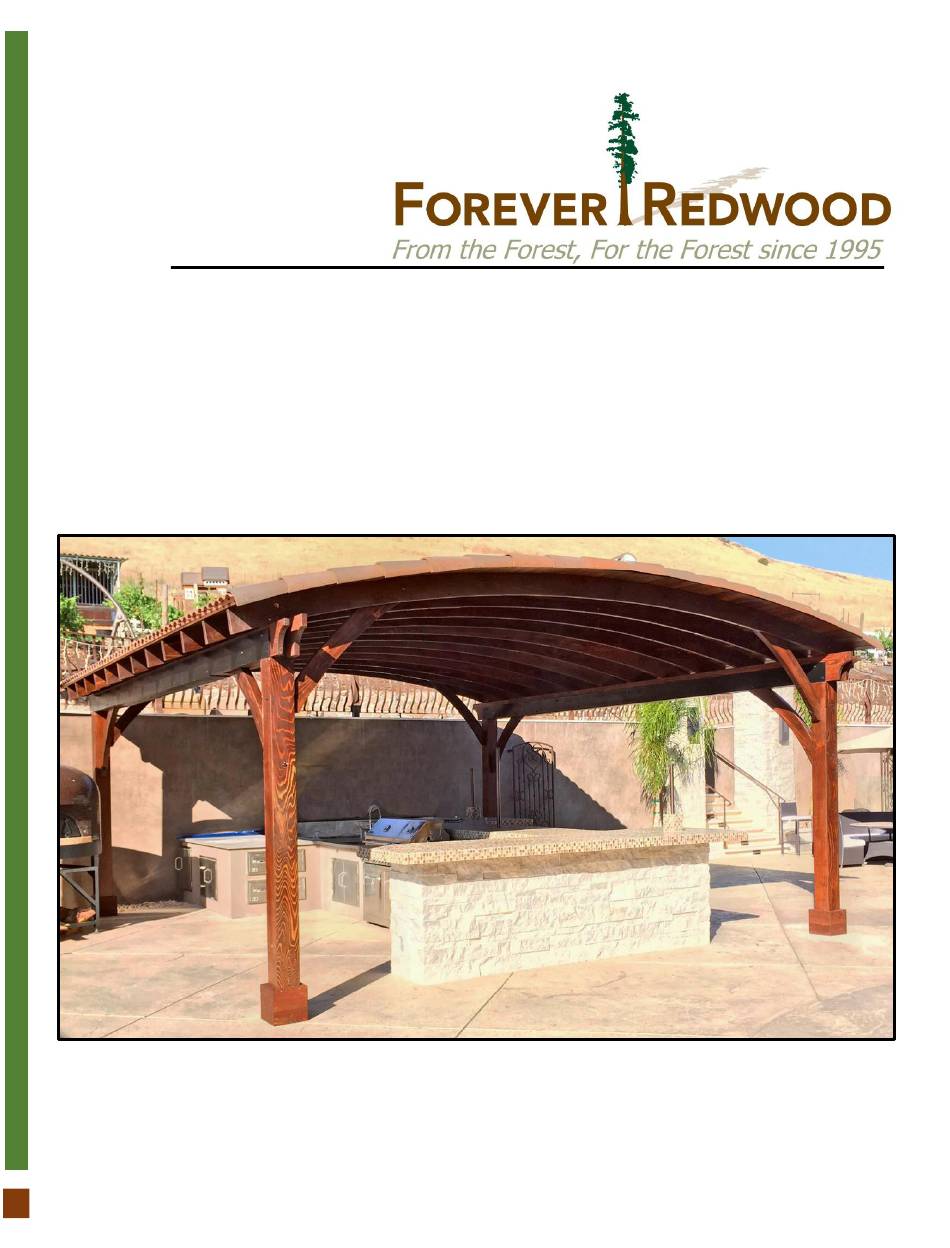

  • Page 1 866.332.2403 (TOLL FREE); 7am – 7pm Pacific Time, Monday-Saturday ASSEMBLY INSTRUCTIONS FOR THE ARCHED THICK TIMBER PAVILION...
  • Page 2 P| 1 ARCHED THICK TIMBER PAVILION www.ForeverRedwood.com...
  • Page 3 P| 2 ARCHED THICK TIMBER PAVILION www.ForeverRedwood.com...
  • Page 4 P| 3 ARCHED THICK TIMBER PAVILION www.ForeverRedwood.com...
  • Page 5 Step 2: First attach the single supports (2) to the posts with 3/8´´ X 7´´ bolts (C). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´ X 6 ½´´ Bolts P| 4 ARCHED THICK TIMBER PAVILION www.ForeverRedwood.com...
  • Page 6 Step 4: Attach the single supports (2) to the supports with in-between blocking (3), use 3/8´´ X 7´´ bolts (C). The quantity of bolts depends on the length of the supports. 3/8´´ X 7´´ Bolts P| 5 ARCHED THICK TIMBER PAVILION www.ForeverRedwood.com...
  • Page 7 Step 6: Attach the secondary knee braces (5) to the posts with 3/8´´ x 8´´ bolts (E) and to the arched rafters with 5/16´´ x 5 ½´´ bolts (F). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 5/16´´ x 5 ½´´ Bolts 3/8´´ X 8´´ Bolts P| 6 ARCHED THICK TIMBER PAVILION www.ForeverRedwood.com...
  • Page 8 Step 8: Use 8´´ x 3´´ deck screws (G) to attach the other arched rafters (4) to the supports. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3´´ Deck Screws P| 7 ARCHED THICK TIMBER PAVILION www.ForeverRedwood.com...
  • Page 9 Put the central boards first. Step 10: Finally, attach the boots (8) to the posts with 8´´ x 3´´ deck screws (G). 8´´ X 3´Deck Screws P| 8 ARCHED THICK TIMBER PAVILION www.ForeverRedwood.com...
  • Page 10 This completes the Pavilion assembly. Hope you enjoy your set for many decades. If you ever have a problem or a question, don't hesitate to call us (866 332 2403) or email us. We are here to support you. P| 9 ARCHED THICK TIMBER PAVILION www.ForeverRedwood.com...
  • Page 11 Step 1: First remove the deck screws to remove the boots of the post. Don´t add the lag bolt over the trim piece initially. Step 2: Loosen the nut on the bolt support. P| 10 ARCHED THICK TIMBER PAVILION www.ForeverRedwood.com...
  • Page 12 Step 3: The bolt of the post and the brace must be flush with the post. Bolt. Step 4: Swing the brace aside. After that, remove the trim. Note: The dimensions of the trim are standard, adjust if necessary. P| 11 ARCHED THICK TIMBER PAVILION www.ForeverRedwood.com...
