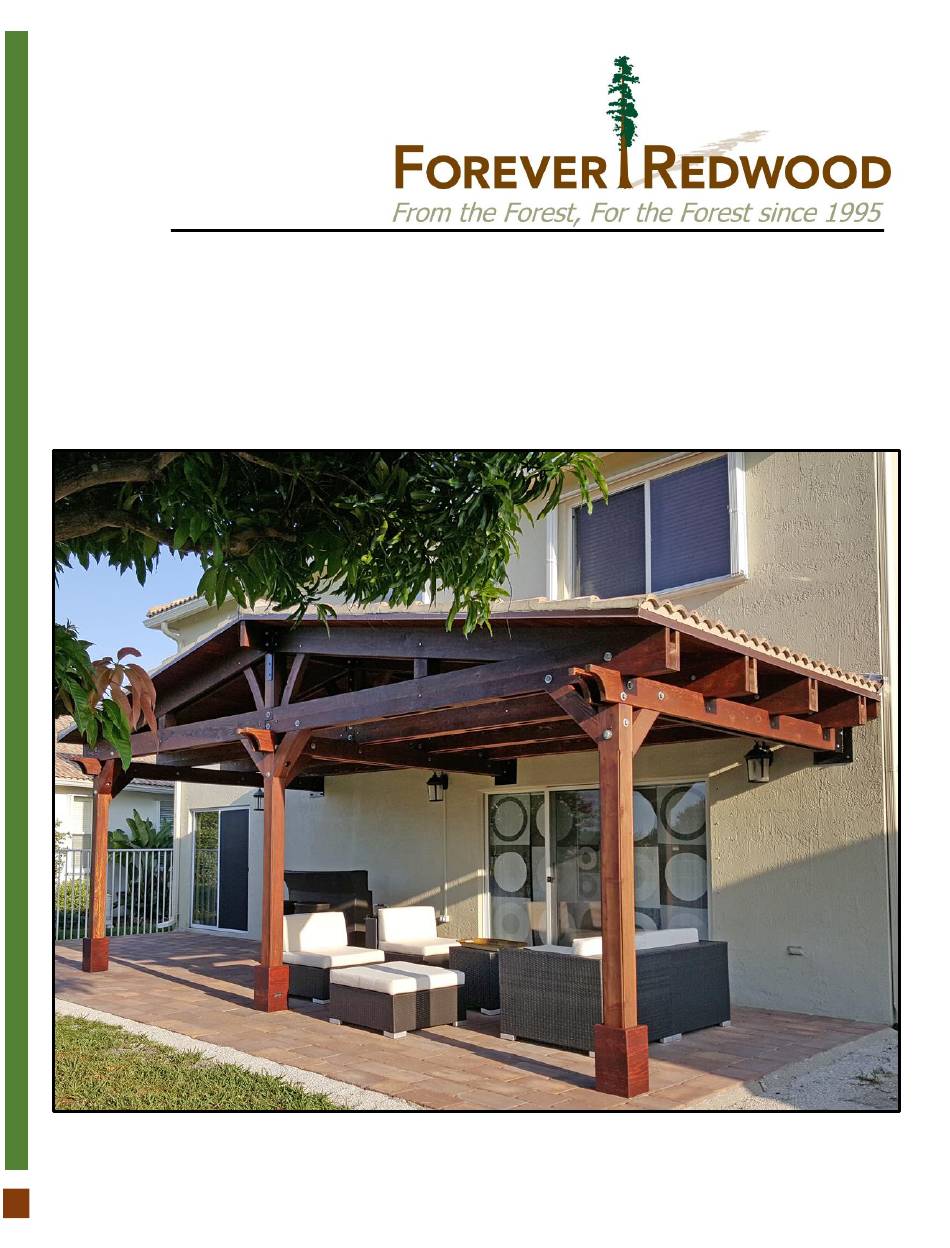

- Page 1 866.332.2403 (TOLL FREE); 7am – 7pm Pacific Time, Monday-Saturday ASSEMBLY INSTRUCTIONS FOR THE ATTACHED PAVILION KIT...
- Page 2 P| 1 ATTACHED PAVILION KIT www.ForeverRedwood.com...
- Page 3 P| 2 ATTACHED PAVILION KIT www.ForeverRedwood.com...
- Page 4 P| 3 ATTACHED PAVILION KIT www.ForeverRedwood.com...
- Page 5 P| 4 ATTACHED PAVILION KIT www.ForeverRedwood.com...
- Page 6 NOTE: In order to know where the post needs to be placed, check the numbers on them. If the post is not marked, then place the single Supports on the ground to locate the markings for each post position and clearly set your bearings. (“Don´t attach yet, only place them on the ground to begin with”).
- Page 7 Step 3: Attach the single supports (2) to the posts with 3/8´´´x 6 ½´´ bolts (D). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´ X 6 ½´´ Bolts Step 4: Put up the supports with in-between blocking (3), into the post notches as shown and attach to the posts with the single support bolts.
- Page 8 Step 5: Attach the single supports to the supports with in-between blocking, use 3/8´´ X 6 ½´´ bolts (D). The quantity of bolts depends on the length of the supports. 3/8´´ X 6 ½´´ Bolts Step 6: Use 3/8´´ x 3´´ lag bolts (E) to attach the wall mounted anchors to the supports. 3/8´´...
- Page 9 Step 7: Attach the perimeter triangle (4) or the perimeter arched rafter (4) to the posts with 3/8´´ x 6 ½´´ bolts (D) and to the supports with 3´´ deck screws (J). Each part has a series of numbers that indicate where to attach the part with the corresponding number.
- Page 10 Step 8: Attach the main knee braces (5) to the posts with 3/8´´ x 10´´ bolts (G) and to the supports with 3/8´´ x 6 ½´´ Bolts (D). Each part has a series of numbers that indicate where to attach the part with the corresponding number. Del Norte Type: 3/8´´...
- Page 11 Step 9: Attach the secondary knee braces (6) to the posts with 3/8´´ x 10´´ bolts (G) and to the triangle or the arched rafter with 3/8´´ x 6 ½´´ Bolts (D). Each part has a series of numbers that indicate where to attach the part with the corresponding number. Del Norte Type: 3/8´´...
- Page 12 Step 10: Use 3” deck screws () to attach the rest of triangles (4) or arched rafters (4) to the supports. Each part has a series of numbers that indicate where to attach the part with the corresponding number. Del Norte Type: 3´´...
- Page 13 Backyard Type: Step 11: Use 1 5/8´´ deck screws (K) to attach the roof boards (7) to the arched rafters. Each part has a series of numbers that indicate where to attach the part with the corresponding number. Put the central board first.
- Page 14 Step 12: Attach the roof panels (7) to the triangles with 2 ¼´´ deck screws (F). 2 ¼´´ Deck Screws Step 13: Attach the roof fascia’s (8) to the roof panels with 2 ¼´´ deck screws (F). Each part has a series of numbers that indicate where to attach the part with the corresponding number.
- Page 15 Step 14: Finally, attach the boots (8 or 9) to each post with 3’’ deck screws (J). Del Norte Type: 3´´ Deck Screws Backyard Type: 3´´ Deck Screws P| 14 ATTACHED PAVILION KIT www.ForeverRedwood.com...
- Page 16 Del Norte Type: Backyard Type: P| 15 ATTACHED PAVILION KIT www.ForeverRedwood.com...
- Page 17 This completes the Pavilion assembly. Hope you enjoy your set for many decades. If you ever have a problem or a question, don't hesitate to call us (866 332 2403) or email us. We are here to support you. P| 16 ATTACHED PAVILION KIT www.ForeverRedwood.com...
