- Page 1 F-782CTW5 CGG-F782CTW5 1xPON+2LAN+1POTS+1USB+WiFi5+CATV...
-
Page 2: Table Of Contents
F-782CTW5 Content Product OverView ..........................3 Product appearance features ......................4 ...............................4 Application Chart ..........................5 Technical parameters .........................6 Table 2 Technical parameters ......................8 Panel lights .............................8 Interface description ........................9 Software function..........................10... -
Page 3: Product Overview
F-782CTW5 Product OverView 2GE+1POTS+WiFi+CATV GPON/EPON HGU WiFi Mesh terminal devices are designed for fulfilling FTTH and triple play service demand of fixed network operators. These boxes are based on the mature Chipset (Realtek) technology, which have high ratio of performance to price, and the technology of IEEE802.11b/g/n/ac WiFi, Layer 2/3, Wi-Fi EasyMesh,and high quality VoIP as well. -
Page 4: Product Appearance Features

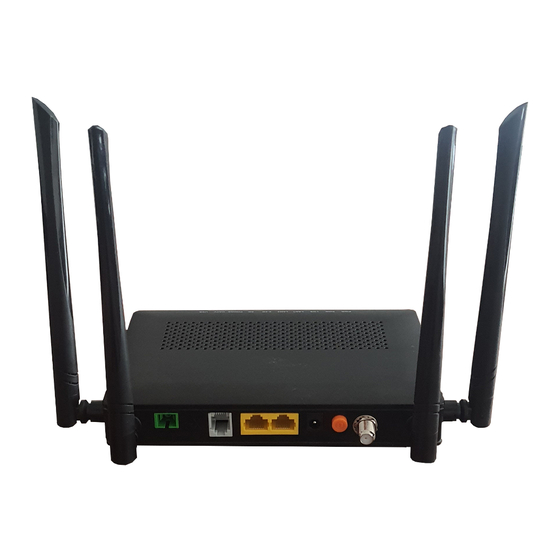

F-782CTW5 Product appearance features Figure 1 2LAN+1POTS+1USB+WiFi4/5 HGU... -
Page 5: Application Chart
F-782CTW5 Application Chart Figure 2 Application Chart... -
Page 6: Technical Parameters
F-782CTW5 Technical parameters Technical item 1*xPON+2*GE+1*POTS+WiFi+USB 1 G/EPON port(EPON PX20+ and GPON Class B+) Receiving sensitivity: ≤-28dBm PON interface Transmitting optical power: 0～+4dBm Transmission distance: 20KM Wavelength Tx1310nm,Rx 1490nm Optical SC/UPC connector interface 2*10/100/1000Mbps auto adaptive Ethernet interfaces, Full/Half, RJ45 LAN interface connector USB interface USB 3.0, Transmission Rate: 4.8Gbps... - Page 7 F-782CTW5 G.711A/G.711U/G.723/G.729 Codec,T.30/T.38/G.711 Fax mode, DTMF Relay Compliant with IEEE802.11b/g/n/ac 2.4GHz Operating frequency: 2.400-2.483GHz (WiFi 4) WiFi interface 5.0GHz Operating frequency: 5.150-5.825GHz (WiFi 5 wave 2) WiFi:4*4 MIMO,,5dBi antenna, rate up to 1.167Gbps,Multiple SSID TX power: 11n--22dBm/11ac--24dBm 5, For Status of PON/LOS, WiFi,TEL,LAN1,LAN2 Temperature: 0℃～+50℃...
-
Page 8: Panel Lights
F-782CTW5 Table 2 Technical parameters Panel lights Blink The device is The device is powered up powered down Green is registered Green is registering Device is not to the PON system to the PON system registered to the PON system Device does not Device have received receive optical... -
Page 9: Interface Description
F-782CTW5 Interface description Port Type Function Connect PON port with internet by SC/APC type, single mode optical fiber cable. LAN 1/2 Connect device with ethernet port by RJ-45 cat5 cable. Press down reset button and keep about 5seconds to make the device restart and recover from the factory default settings. -
Page 10: Software Function
F-782CTW5 Software function Fuction Description Management OAM/OMCI,Telnet,WEB,TR069,Support full management by Mode Full speed non-blocking switching 2K MAC address table 64 full range VLAN ID Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc Data Service Support auto polarity detection of Ethernet ports (AUTO... - Page 11 F-782CTW5 Modulation type: DSSS,CCK and OFDM Encoding scheme: BPSK,QPSK,16QAM and 64QAM SIP protocol(IMS compatible) seamless compatible with all popular call agent Integrate heartbeat function and support active/standby call agent Voice coding: ITU-T G.711/G.722/G.729, auto-negotiate with call agent Echo cancellation exceeding ITU-T G.165/G.168-2002, up to POTS Service 128ms tail length Function...
- Page 12 F-782CTW5 For More Information Please visit our website www.comcast-sa.com or contact your local sales representative. Comcast Nicaragua Comcast Guatemala Comcast México Ovearseas Sales Subsidiary Ovearseas Sales Subsidiary Ovearseas Sales Subsidiary 3ra. Entrada las Colinas, Embajada 20 calle 23-70 Zona 10 Cal.
- Page 13 F-782CTW5...
