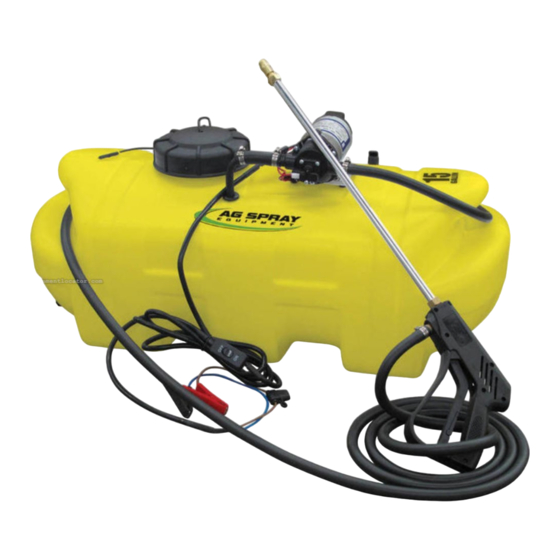

Model: GOLD15 (5302848)
(15 Gallon Lawn & Garden
Spot Sprayer)
15 Gal. Corrosion-Resistant Polyethylene Tank
12 Volt Diaphragm Pump, 2.2 GPM, 100 PSI
Deluxe Pistol Grip Handgun
15 Ft. Handgun Hose
IF YOU SHOULD HAVE A QUESTION OR EXPERIENCE A
PROBLEM WITH YOUR AG SPRAY PRODUCT GIVE US A CALL
BAKERSFIELD, CA
COLUMBUS, NE
877-724-2236
800-274-1025
FARGO, ND
HOPKINSVILLE, KY
701-280-2862
800-637-7172
NEWTON, KS
PASCO, WA
800-394-7662
800-634-2026
BEFORE YOU CALL, PLEASE HAVE THE FOLLOWING
INFORMATION AVAILABLE: SALES RECEIPT & MODEL
NUMBER. IN MOST CASES, AN AG SPRAY EMPLOYEE
CAN RESOLVE THE PROBLEM OVER THE PHONE
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your
lawn & garden spot sprayer.
Retain a copy of your receipt for your unit,
as it will be required to validate any warranty service
Products are warranted against manufacturer or workmanship
defects for one year from date of purchase for home owner
usage and 90 days for commercial usage.
For technical assistance, visit our website @ www.agspray.com or
call: Toll Free to one of the above phone numbers
Our Technical Support Representatives will be happy to help you.
To obtain prompt, efficient service, always remember to give the
following information...
Correct Part Description and/or part number
Model #/Serial # of your sprayer
Part descriptions and numbers can be obtained from the illustrated
parts list section(s) of this manual.

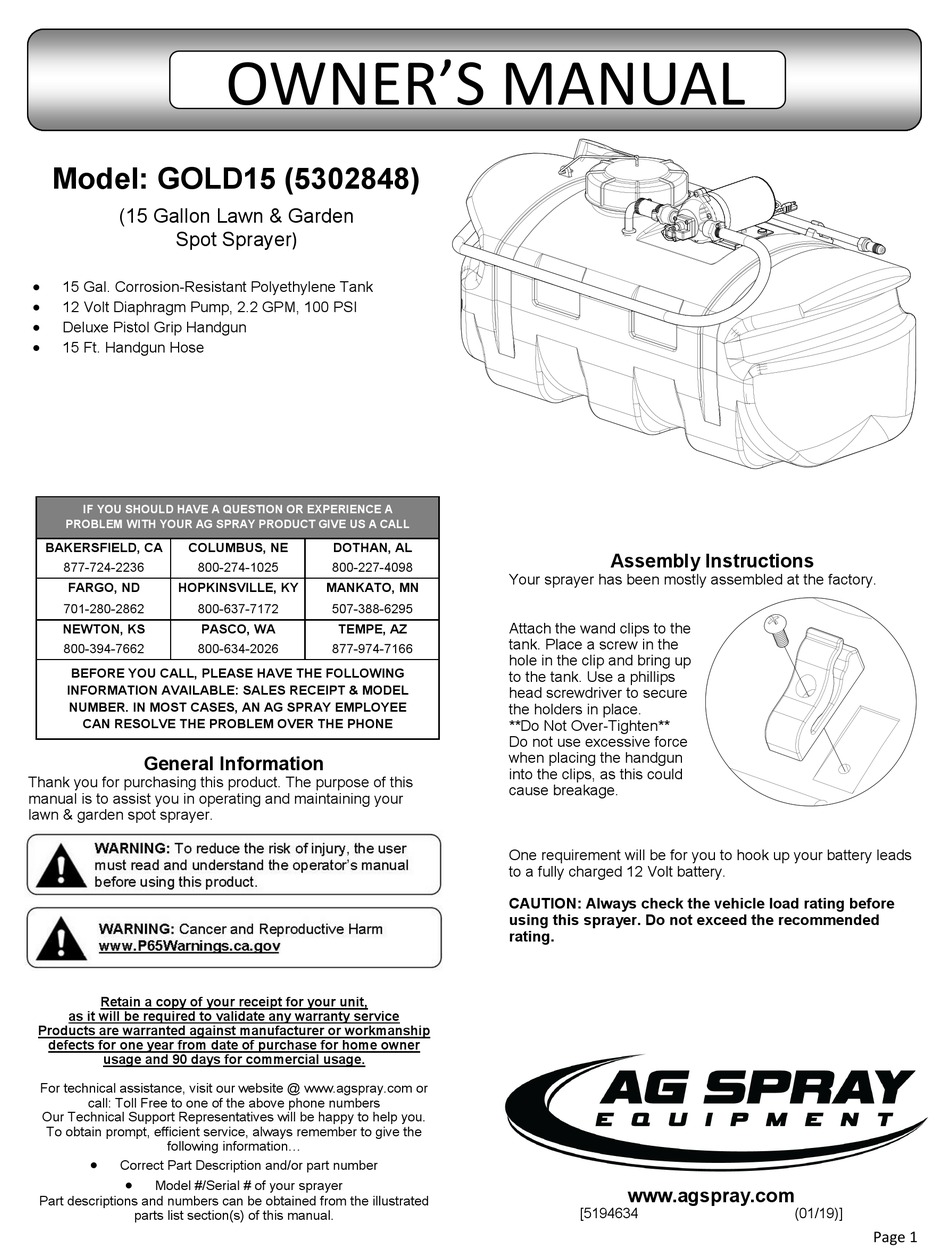

OWNER'S MANUAL
DoTHAN, AL
800-227-4098
MANKATO, MN
507-388-6295
TEMPE, AZ
877-974-7166
Assembly Instructions
Your sprayer has been mostly assembled at the factory.
Attach the wand clips to the
tank. Place a screw in the
hole in the clip and bring up
to the tank. Use a phillips
head screwdriver to secure
the holders in place.
**Do Not Over-Tighten**
Do not use excessive force
when placing the handgun
into the clips, as this could
cause breakage.
One requirement will be for you to hook up your battery leads
to a fully charged 12 Volt battery.
CAUTION: Always check the vehicle load rating before
using this sprayer. Do not exceed the recommended
rating.
www.agspray.com
[5194634
(01/19)]
Page 1
