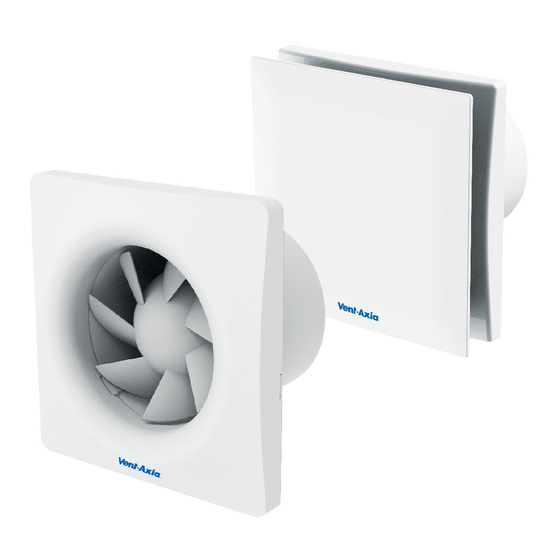

Silent Fan
Open Fronted Range
Installation and Wiring Instructions
220-240V~50Hz
PLEASE READ INSTRUCTIONS IN CONJUNCTION WITH ILLUSTRATIONS.
PLEASE SAVE THESE INSTRUCTIONS.
Fixed Speed Models
Stock Ref. N°
495697
495698
495699
495705
Lo-Carbon Models
Stock Ref. N°
495700
495701
495702
495703
495704
IPX5
- VASF100BO
- VASF100TO
- VASF100HTO
- VASF100PIRO
- VASF100BVO
- VASF100TVO
- VASF100HTVO
- VASF100TCO
- VASF100HTCO
Advertisement
Related Manuals for Vent-Axia VASF100BO
Summary of Contents for Vent-Axia VASF100BO
- Page 1 Silent Fan Open Fronted Range Installation and Wiring Instructions Fixed Speed Models Stock Ref. N° 495697 - VASF100BO 495698 - VASF100TO 495699 - VASF100HTO 495705 - VASF100PIRO Lo-Carbon Models Stock Ref. N° 495700 - VASF100BVO 495701 - VASF100TVO 495702 - VASF100HTVO...
-
Page 2: Safety And Guidance Notes
E. The Fan should only be used in conjunction with the appropriate Vent-Axia products. F. The Fan should only be used in conjunction with fixed wiring. G. When the Fan is used to remove air from a room containing a fuel- burning appliance, ensure that the air replacement is adequate for both the fan and the fuel-burning appliance. -
Page 3: Installation
L. Stationary appliances not fitted with means for disconnection from the supply mains having a contact separation in all poles that provide full disconnection under over voltage category III, the instructions state that means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules. M. - Page 4 Fixed Speed Range – Fig1, 2, 3, 4, 5 & 6 VASF100BO – Basic - Remote or light switch operation. 2 Speed options selectable at install. VASF100TO – Timer* - Overrun timer adjustable 5-30min. 2 Speed options selectable at install.
-
Page 5: Servicing And Maintenance
2. Wipe the inlets and front face with a damp cloth until clean. The fan has sealed for life bearings, which do not require lubrication. Fig.1: VASF100BO, VASF100PIRO, VASF100BVO 220-240V ~ 50Hz 3 AMP Fig.2:... - Page 6 To remove the grille, push both clips on each To INCREASE the operating time, use a small side (1) screwdriver to turn the adjuster CLOCKWISE. Fig.5: VASF100BO , VASF100TO Timer Adjustment: To REDUCE the operating time, use a small screwdriver to turn the adjuster ANTI-CLOCKWISE.
- Page 7 Fig.6: VASF100HTO Humidity Adjustment To INCREASE SET POINT, turn the adjuster clockwise. This makes the controller LESS sensitive. To REDUCE SET POINT, turn the adjuster anti-clockwise. This makes the controller MORE sensitive. Humidity Speed selection (JP2). Adjustment The fan is factory set to low speed with jumper JP2 fitted. To activate the high speed setting remove jumper JP2.
- Page 8 Vent-Axia guarantees the fixed speed products for 2 years and the Lo-Carbon products for 5 years from date of purchase against faulty material or workmanship. In the event of any part being found to be defective, the product will be repaired, or at the Company’s option replaced, without charge, provided that the product:- ...
