B-Tech Mountlogic BT11 Installation Manual & Parts List page 5

8
10
9
11
12
13
PLEASE KEEP THIS FOR FUTURE REFERENCE

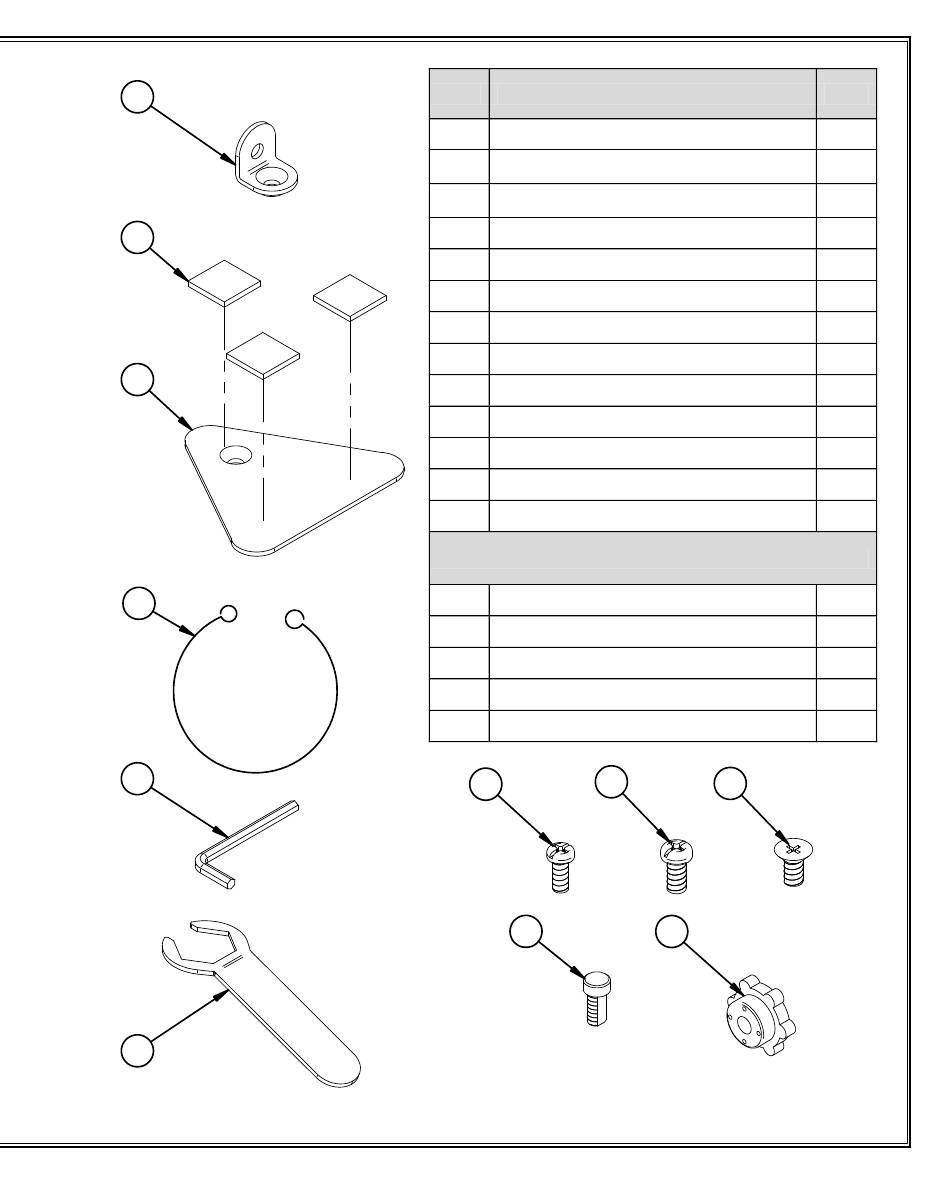

REF PART NAME
1 TUBE ASSEMBLY
2 HEIGHT ADJUSTMENT COLLAR
3 FLOOR BASE
4 M16 NUT
5 RUBBER FEET
6 M6 X 25mm HEX SCREW
7 DUAL POINT SPEAKER FIXING
8 SINGLE POINT SPEAKER FIXING
9 SPEAKER PLATFORM
10 'HOOK & LOOP' FIXING (FOR PART 9)
11 SPEAKER CABLE PULL-THROUGH WIRE
12 4mm HEX KEY (FOR PART 6)
13 22mm SPANNER (FOR PART 4)
INTERFACE KIT
A M5 X 12mm SCREW
B M6 X 12mm SCREW
C ¼" X ½" UNC SCREW
D ¼" X ½" UNC SCREW (FOR PART E)
E THUMB WHEEL (FOR PART D)
B
A
D
QTY
2
2
2
2
6
2
2
2
2
6
1
1
1
4
4
4
2
2
C
E
5
