DC-E1-FG
User Guide
This product records videos while the vehicle is operating.
Read and follow the instructions in this guide to properly use and maintain the product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DC-E1-FG and is the answer not in the manual?

Questions and answers

Related Manuals for Thinkware DC-E1-FG

Summary of Contents for Thinkware DC-E1-FG

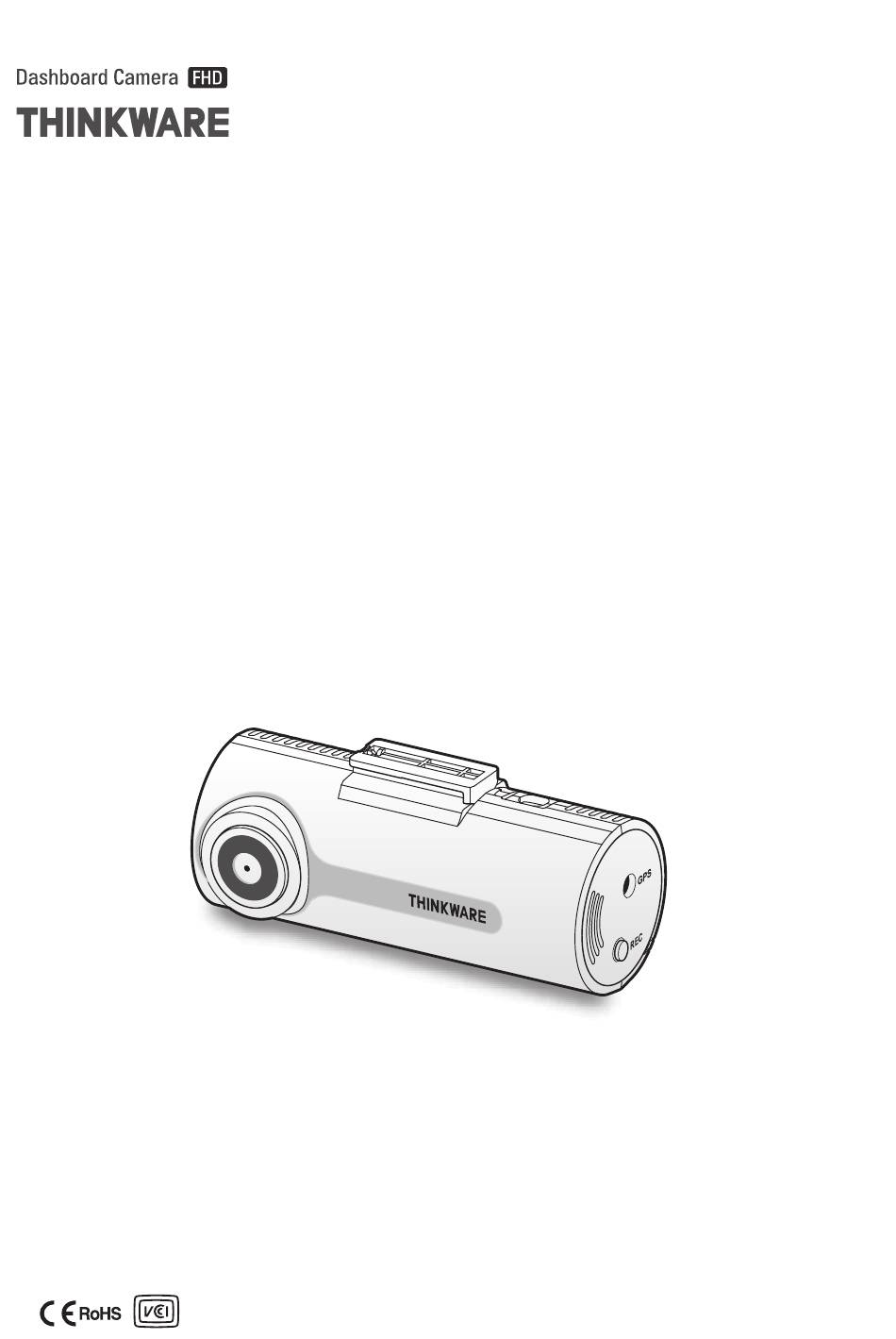

  • Page 1 DC-E1-FG User Guide This product records videos while the vehicle is operating. Read and follow the instructions in this guide to properly use and maintain the product.
  • Page 2 THINKWARE is not responsible for any loss caused by an accident, nor is it responsible for providing any support regarding the outcome of an accident.
  • Page 3 FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.

  • Page 4: Table Of Contents

    Contents Safety information 5. Settings 5.1 Managing the memory card 1. Product overview 5.1.1 Partitioning the memory card 1.1 Included items 5.1.2 Formatting the memory card 5.1.3 Configuring the video 1.1.1 Standard items overwriting function 1.1.2 Accessories (sold separately) 5.2 Setting the camera 1.2 Part names 5.2.1 Setting the brightness of the 1.2.1 Front camera (main unit) - front view...

  • Page 5: Safety Information

    Safety information Read the following safety information to properly use the product. Safety symbols in this guide "Warning" - Indicates a potential hazard which, if not avoided, may result in injury or death. "Caution" - Indicates a potential hazard which, if not avoided, may result in minor injury or property damage. "Note"...
  • Page 6 • Do not modify or cut the power cable. Also, do not place heavy objects on the power cable or pull, insert, or bend the power cable using excessive force. Doing so may result in electrical fire or electrocution. • Use only genuine accessories from THINKWARE or an authorized THINKWARE dealer. THINKWARE does not guarantee compatibility and normal operation of third-party accessories.
  • Page 7 • THINKWARE is NOT responsible for the loss of any recorded video during operation. • Although the device was designed to withstand high-impact car collisions, THINKWARE does not guarantee the recording of accidents when the device is damaged as a result of the accident.

  • Page 8: Product Overview

    1. Product overview 1.1 Included items Ensure that all the items are included when you open the product box. 1.1.1 Standard items Front camera (main unit) Mount Car charger Adhesive cable holder MicroSD memory card Quick start guide & Warranty with adapter / CS information / User guide (consumable)

  • Page 9: Part Names

    Product overview 1.2 Part names 1.2.1 Front camera (main unit) - front view Mount connector Used to connect the mount. DC-IN power port Used to connect the power cable. Front camera lens Records the front view. GPS port Used to connect the external GPS receiver (optional) for additional features.

  • Page 10: Front Camera (Main Unit) - Rear View

    Product overview 1.2.2 Front camera (main unit) - rear view Speaker Outputs the voice guide and buzzer sounds to indicate the product’s status. Microphone Used for voice recording. Memory card slot Insert a memory card to save recordings. Status LED Indicates the operating status of the product.

  • Page 11: Removing And Inserting The Memory Card

    • Ensure that the memory card is in the correct direction before inserting it into the product. The memory card slot or the memory card may be damaged if it is inserted incorrectly. • Use only authentic memory cards from THINKWARE. THINKWARE does not guarantee compatibility and normal operation of third-party memory cards.

  • Page 12: Installing The Product

    2. Installing the product 2.1 Installing the front camera (main unit) Follow the instructions to properly install the product. 2.1.1 Selecting an installation location Select an installation location that can record the entire view in front of the vehicle without obstructing the driver’s vision.
  • Page 13 Installing the product Remove the protective film from the adhesive mount, and then press the mount to the installation location. Remove the product from the mount and push the mount against the windshield to ensure that the mount is firmly fixed. Align the product to the mount, and then slide it into the locking position until you hear a click.

  • Page 14: Connecting The Power Cable

    The location and specifications of the power socket may differ by vehicle make and model. • Use the authentic THINKWARE car charger. Use of third party power cables may damage the product and result in electrical fire or electrocution due to the voltage difference.

  • Page 15: Installing The External Gps Receiver (Optional)

    Installing the product 2.2 Installing the external GPS receiver (optional) To activate the safety camera feature or record driving information (the speed and location), follow the instructions and install the external GPS receiver on the upper part of the front windshield. Install the external GPS receiver near the product, taking the receiver's cable length into account.

  • Page 16: Using Recording Features

    3. Using recording features 3.1 Turning the product on or off The product is turned on automatically and continuous recording starts when you turn on the ACC or start the engine. Wait until the product is completely booted up after turning it on, and then begin operating the vehicle. The video recording does not begin until the product is completely turned on (booted up).

  • Page 17: Recording Manually

    Using recording features • Wait until the product is completely booted up after turning it on, and then begin operating the vehicle. The video recording does not begin until the product is completely turned on (booted up). • When incident continuous recording starts, the buzzer sounds as a notification. This function saves you time when checking the status LED to know the operating status of the product.

  • Page 18: Checking The Video File Storage Location

    Using recording features 3.5.1 Checking the video file storage location You can insert the memory card used for recording into a PC to check the video file storage location. Also, you can play the videos on a PC using the PC viewer. For more information about how to play videos via the PC viewer, refer to "4.

  • Page 19: Using The Pc Viewer

    Insert the memory card into a memory card reader connected to your PC. Run the installation file, and complete the installation according to the instructions given in the installation wizard. After the installation is complete, there will be a shortcut icon to THINKWARE Dashcam Viewer.

  • Page 20: Pc Viewer Screen Layout

    Move the file named "Dashcam Viewer.zip" to the desktop. Right-click the Dashcam Viewer.zip and click Open With > Archive Utility. The THINKWARE Dashcam Viewer opens. 4.3 PC viewer screen layout The following provides brief information about the PC viewer's screen layout.

  • Page 21: Playing Recorded Videos On The Pc Viewer

    Using the PC viewer 4.4 Playing recorded videos on the PC viewer Follow the instructions to play recorded videos. Turn off the product and remove the memory card. Insert the memory card into a memory card reader connected to your PC. Double-click the shortcut to the PC viewer ( ) to open the program.

  • Page 22: Video Control Menu Overview

    Using the PC viewer 4.5 Video control menu overview The following provides brief information about the PC viewer's video control menu. ➐ ➑ ➒ ➓ ➊ ➋ ➌ ➍ ➎ ➏ Number Item Description Play the previous file Play the previous file in the currently selected folder. ➊...

  • Page 23: Settings

    5. Settings You can set the product features according to your needs and preferences using the PC Viewer. 5.1 Managing the memory card 5.1.1 Partitioning the memory card You can partition the memory card to adjust the storage space for different types of video recordings. Refer to the following instructions to partition the memory card.

  • Page 24: Setting The Camera

    Settings 5.2 Setting the camera You can adjust the brightness of the front view. 5.2.1 Setting the brightness of the front camera You can set the brightness of the front view recording. Refer to the following instructions to set the brightness.

  • Page 25: Setting Parking Mode

    Settings 5.3.2 Setting parking mode You can set the operating mode of the product while the vehicle is parked. Follow the instructions to set parking mode. To use parking mode, you must install the hardwiring cable (optional). If continuous power is not supplied to the product, the product will stop recording when the vehicle engine is turned off.

  • Page 26: Setting The Record Timer Feature

    If you have installed the hardwiring cable to record the video for an extended period during parking, connect the authentic THINKWARE external dashcam battery. 5.3.6 Setting the battery protection feature You can set to use the battery protection feature.

  • Page 27: Setting The Battery Cutoff Voltage Feature

    Settings 5.3.7 Setting the battery cutoff voltage feature You can set the voltage limit to stop recording at when using the Low Voltage Off feature. Refer to the following instructions to set the voltage. From the PC Viewer, click Settings Dash Cam Settings Record Settings.

  • Page 28: Setting Road Safety Features

    Settings 5.4 Setting road safety features You can activate or deactivate a safety camera alert system and a front vehicle departure warning (FVDW). 5.4.1 Setting the safety cameras When the vehicle approaches or passes the speed limit zone, the safety camera alert system will collect GPS signals and safety camera data.

  • Page 29: Configuring The System Settings

    Settings 5.5 Configuring the system settings This menu allows you to configure the hardware settings that are globally applied to the system during operation, such as the display language. 5.5.1 Setting the display language Select a language (English, French, or Spanish) to display on the screen. Follow the instructions to select a language.

  • Page 30: Setting The Daylight Saving Time

    Settings 5.5.4 Setting the daylight saving time Follow the instructions to set the daylight saving time. From the PC Viewer, click Settings Dash Cam Settings System Settings. > > From Daylight Saving, select Enabled or Disabled. Click Save. 5.5.5 Setting the speed unit Follow the instructions to set the speed unit.

  • Page 31: Upgrading The Firmware

    Follow the instructions to upgrade the firmware. On your PC, open a web browser and go to http://www.thinkware.com/Support/Download. Select the product and download the latest firmware upgrade file.

  • Page 32: Troubleshooting

    • Ensure that the memory card is an authentic product distributed by THINKWARE. THINKWARE does not guarantee compatibility and normal operation of third-party memory cards. The recorded video cannot be The recorded videos are stored as MP4 video files. Ensure that the video player played on a PC.

  • Page 33: Specifications

    To see the product specifications, refer to the following table. Item Specification Remarks Model name DC-E1-FG 78 x 34.6 x 31.5 mm / 42.4 g Dimensions / Weight 3.1 x 1.4x 1.2 inch /0.1 lb - UHS-1: 16 GB, 32 GB, 64 GB...
  • Page 34 Every product requested for repair is regarded as a device that has had its data backed up. The customer service center does not back up your data. THINKWARE is not responsible for any loss, such as data loss.
  • Page 35 Ver. 1.0 (Mar. 2018)
