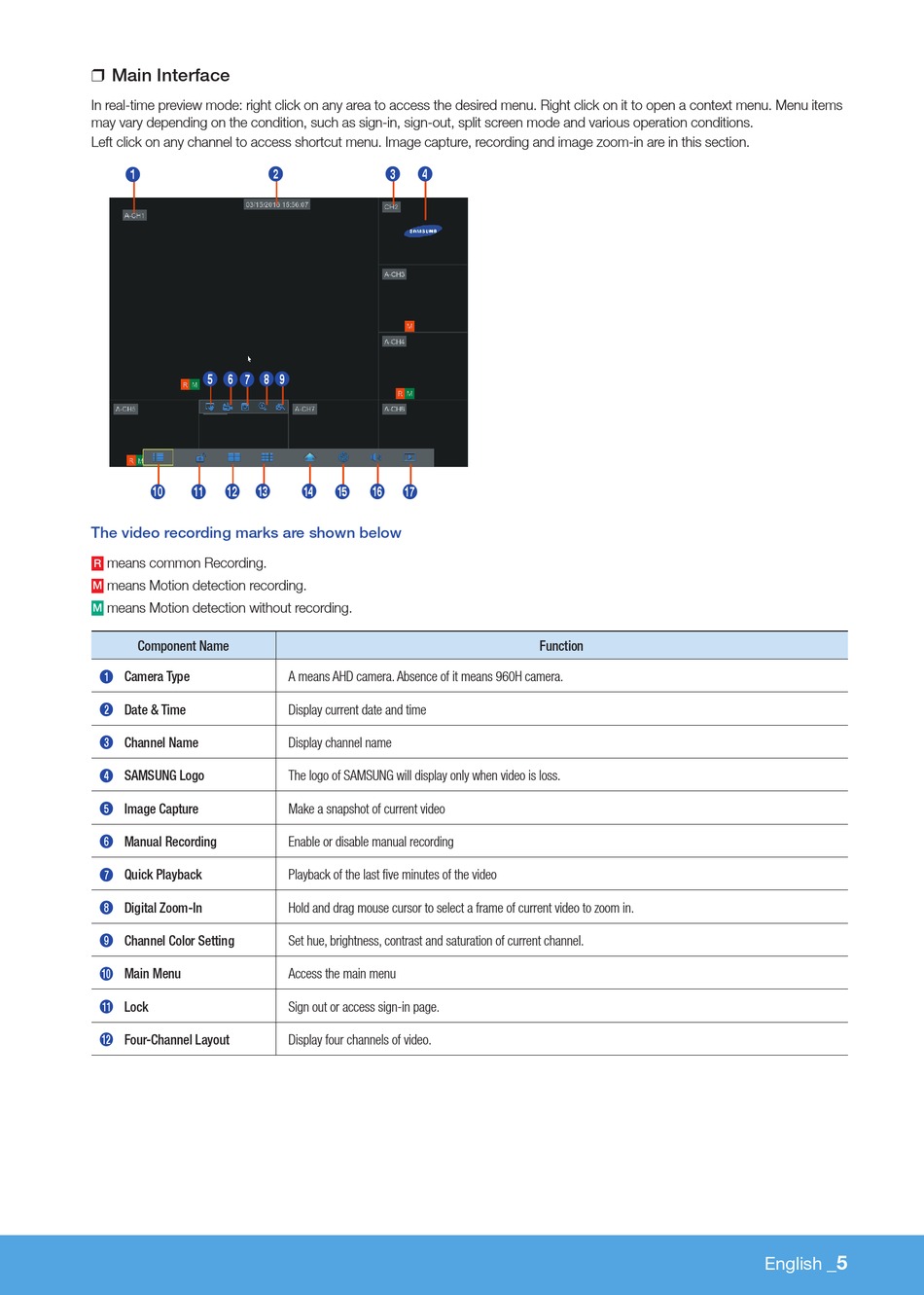

❒ Main Interface

In real-time preview mode: right click on any area to access the desired menu. Right click on it to open a context menu. Menu items
may vary depending on the condition, such as sign-in, sign-out, split screen mode and various operation conditions.
Left click on any channel to access shortcut menu. Image capture, recording and image zoom-in are in this section.
1
5 67 89
0 ! @ #
The video recording marks are shown below
means common Recording.
R
means Motion detection recording.
M
means Motion detection without recording.
M
Component Name
Camera Type
1
Date & Time
2
Channel Name
3
SAMSUNG Logo
4
Image Capture
5
Manual Recording
6
Quick Playback
7
Digital Zoom-In
8
Channel Color Setting
9
Main Menu
0
Lock
!
Four-Channel Layout
@
2 3 4
$ % ^ &
A means AHD camera. Absence of it means 960H camera.
Display current date and time
Display channel name
The logo of SAMSUNG will display only when video is loss.
Make a snapshot of current video
Enable or disable manual recording
Playback of the last five minutes of the video
Hold and drag mouse cursor to select a frame of current video to zoom in.
Set hue, brightness, contrast and saturation of current channel.
Access the main menu
Sign out or access sign-in page.
Display four channels of video.
