Installation Instructions ESW4802Vi en-CA Installation, repair and maintenance work should be performed by a Miele authorized service technician in accordance with national and local safety regulations and the provided installation instructions.
Installation Miele appliances can be installed flush or proud. Discuss your installation requirements with your architect, designer and installer. Check that the base of the warming drawer is clean and level. Only then will it function properly. When inserting the appliance, wear work gloves to avoid injuries.
Carefully lift the control panel out of the drawer. Be careful not to pull or damage the power cord. ESW 4082-14 / ESW 4088-14 ESW 47x2 / ESW 48x2 Miele appliances can be installed flush or proud. Discuss your installation requirements with you architect, designer and installer.

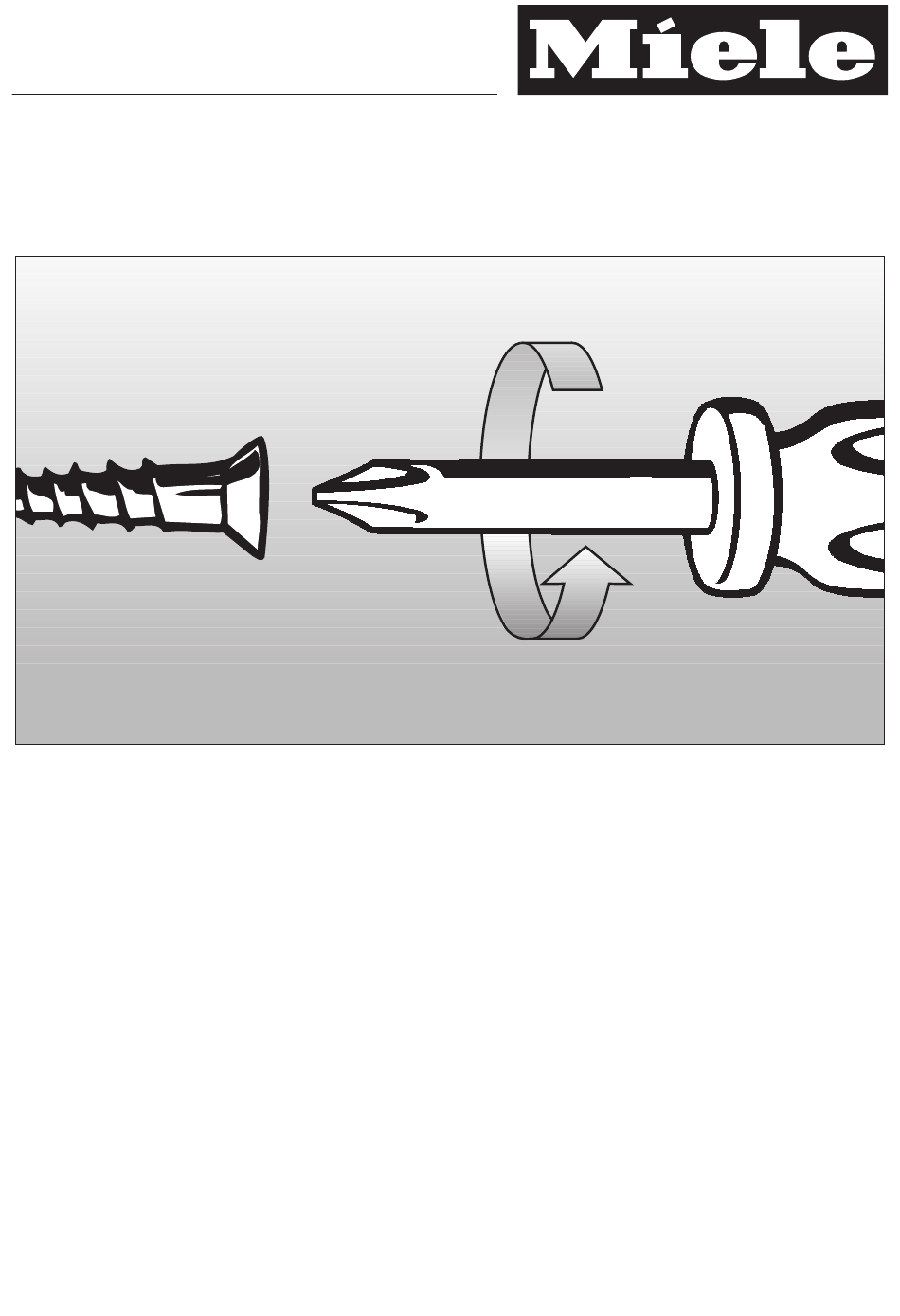

Installation ^ Loosen the 2 screws b on the inside of the drawer front. ^ Align the front. ^ Tighten the screws on the inside of the drawer front. ^ Replace the control panel, use caution with the power cord. ^ Replace the screws on the left and right sides of the drawer front.
Installation Integrated installations Custom made front panels can be installed with models ESW 4702 FB and ESW 4802 FB. The custom panel must be at least " (10 mm) thick and made of heat resistant material 140 °F (60 °C). The front panel, including handle, must not exceed 11 lb (5 kg) in weight.
Installation ^ Remove the cable tie from the panel. ^ Screw the removed panel to the custom panel (see illustration). ^ Hook the panel into the bottom. Make sure the seal is seated correctly. ^ Replace and slightly tighten the screws on the inside of the drawer front.
Electrical connection Power supply CAUTION: Before servicing, This appliance is equipped with a 5 ft disconnect the power supply by (1.5 m) long power cord with a either removing the fuse, shutting off three-prong grounding plug ready for the power main or manually connection to a 120 V, 15 A, 60 Hz "tripping"...
