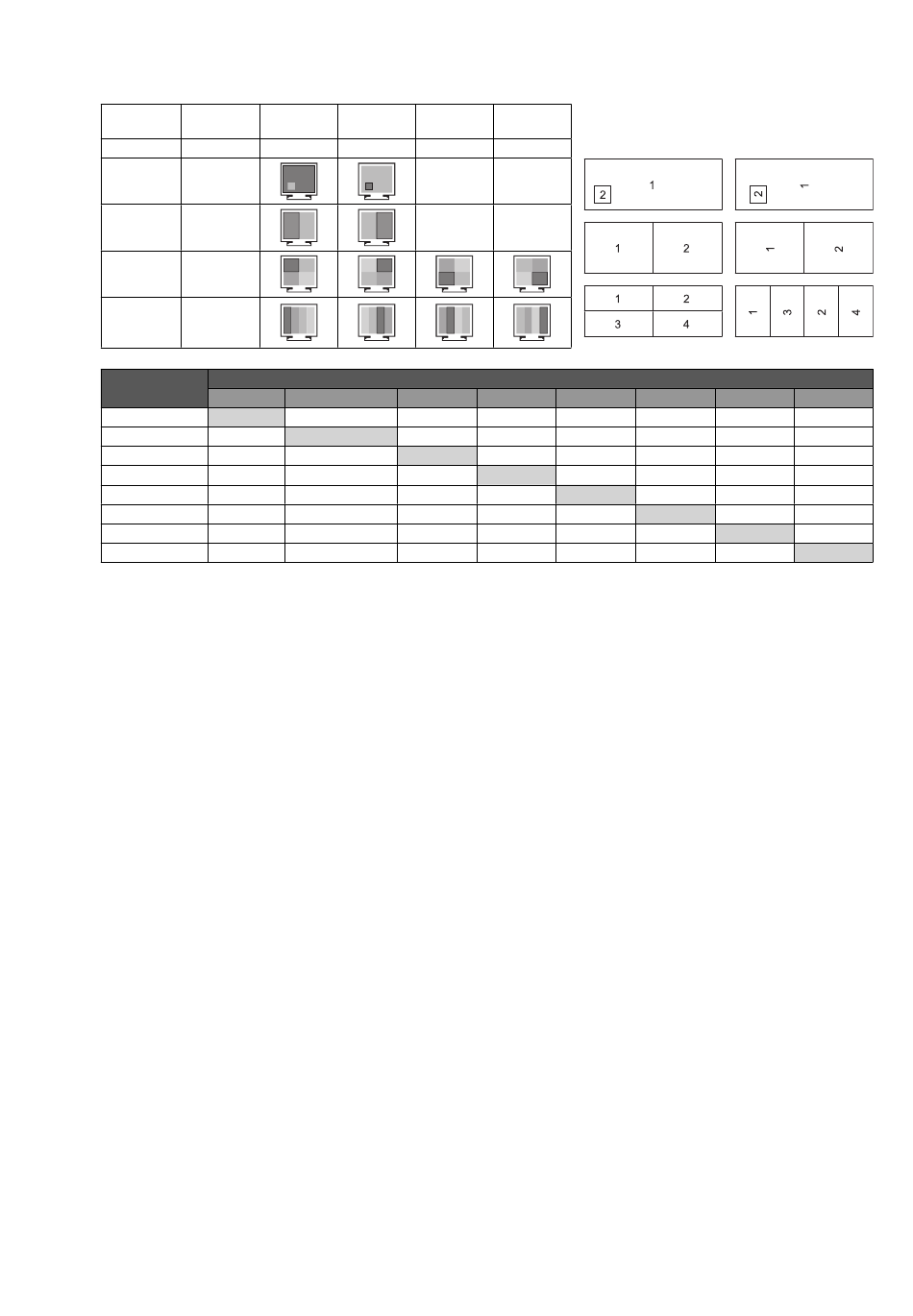

PIP SIZE
Selects the size of the sub-picture used in PIP mode.
MULTI
Picture 1
PATTERN
OFF
-
PIP
-
PBP
2
PBP
4*
2
PBP
2
(Portrait
4*
mode)
DP1
DP1
OPTION (built-in)
Yes*
Yes*
1
HDMI1
Yes
Yes
HDMI2
Yes
Yes
HDMI3
Yes
Yes
HDMI4
Yes
Yes
DVI-D1
Yes
Yes
DVI-D2
Yes
Yes
1
*
This combination is not available in PIP (Picture In Picture) mode.
2
*
The built-in option board does not be displayed.
NOTE: Depending on the option board which you use, some combinations may not be available. Please contact your
supplier for available option boards.
USB SELECT
Change USB upstream input (1 or 2) associated with the current display input. When connecting a computer to each
of the upstream ports, the monitor's USB downstream ports can be used by selecting this setting for the current input
signal.
You can change the active display and upstream USB port combination by using the Input button (see page 13).
You can set the USB selection for each input signals in Advanced menu (see page 23).
When using only one upstream port, the connected upstream port is used by default.
NOTE: To avoid data loss, before changing USB upstream ports, ensure that no USB storage devices are in use by
the operating system of the computer attached to the USB upstream port.
VIDEO DETECT
Selects the method of video detection when more than one video input is connected for active picture.
FIRST: When current video input signal is not present, then the monitor searches for a video signal from the other
video input port(s)*
3
. If a video signal is present in another port, then the monitor switches the video source input port
to the new found video source automatically. The monitor will not look for other video signals while the current video
source is present.
LAST: When the monitor is displaying a signal from the current source and a new secondary source is supplied to
the monitor, then the monitor will automatically switch to the new video source. When current video input signal is not
present, then the monitor searches for a video signal from the other video input port(s)*
in another port, then the monitor switches the video source input port to the new found video source automatically.
NONE: The Monitor will not search the other video input port unless the monitor is turned on.
NOTE: When HDMI1 or DVI1 is set, HDMI and DisplayPort Input Card signal (OPTION) detection is not available.
When HDMI and DisplayPort Input Card input (OPTION) is set, HDMI1 or DVI1 detection is not available.
When HDMI and DisplayPort Input Card input (OPTION) is set, LAST may not work.
3
*
When HDMI1, DVI1 or HDMI and DisplayPort (OPTION) is set, this function may not work.
OFF TIMER
Monitor will automatically power-down when you have selected a pre-determined amount of time.
Before powering off, a message will appear on the screen asking if you want to delay the turn off time by 60 minutes.
Press any OSD button to delay the power-down time.
Picture 2
Picture 3
-
-
-
-
-
OPTION (built-in)
HDMI1
Yes*
Yes*
1
Yes
Yes
No*
No*
1
1
No*
No*
1
Yes*
Yes*
Yes
Yes
1
Yes*
Yes*
Yes
Yes
Yes*
Yes*
1
Yes
Yes
No*
No*
1
No
No
Yes*
Yes*
1
No
No
English-16
PICTURE is OFF in
Picture 4
ROTATION in
Advanced Menu TagA
-
-
-
HDMI2
HDMI3
HDMI4
Yes
Yes
Yes
Yes
Yes
Yes
Yes*
Yes*
1
Yes*
Yes*
1
Yes*
Yes*
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
No
No
No
No
No
No
No
No
No
No
No
3
PICTURE is ON in
ROTATION in
Advanced Menu TagA
DVI-D1
DVI-D2
Yes
Yes
Yes
Yes
1
No*
No*
1
Yes*
Yes*
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
Yes
Yes
Yes
Yes
. If the video signal is present
1
