WPEQ-405AX
WiFi 6 (802.11ax) 4x4 MU-MIMO
5GHz Single Band Mini PCIe Module
802.11ax with MU-MIMO 4x4 Solution
The first WiFi-6 (802.11ax) Qualcomm based AP solution on module formfactor from SparkLAN.

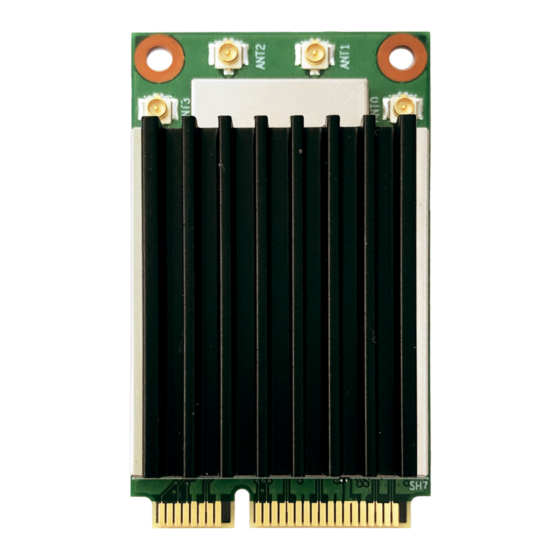

WPEQ-405AX, is based on QCN9074 chipset solution. This is a true enterprise based wireless module that
powers 4T4R (4x4) MU-MIMO, in 5Ghz Single band mode, hitting a theoretical speed of up to 4.8Gbps with
160MHz support.
Unlike typical Qualcomm reference design around QCN9074 (PN02.1), WPEQ-405AX shrink the traditional
50mmx50mm M.2 E-Key design to a more popular Mini PCIe Full size formfactor of just 50mm x 30mm, run
at 3.3V voltage. Provides a greater versatility to use on more common seen design.
WPEQ-405AX performs both AP and STA functionality with 4 spatial streams, although recommended more
for hardware AP applications as it supports 4096-QAM, OFDMA technology, makes it perfect for heavy
lifting applications such as Enterprise grade AP, UTM, public & transportation Hotspot, and other industrial
capable Access Points.
Embedded Application
Applications include Multimedia
Router and AP solution., etc.
All Rights Reserved. SparkLAN may make changes to specification and descriptions at any time without prior notice.
www.sparklan.com / sales@sparklan.com / +886 2 2659-1880
Wireless Module
Key Feature
• 5GHz, 4x4 MU-MIMO OFDMA Technology,
up to 4804Mbps physical data rate
• Single Band 5GHz 4x4 Wi-Fi 6 (802.11ax)
• 4 spatial streams (4SS)
• Perfect for AP solutions
• Support standard full size Mini PCIe module
WPEQ-405AX
Ver.0.94
