M-system 6TS1 Instruction Manual

INSTRUCTION MANUAL
THERMOCOUPLE TRANSMITTER
(field-configurable, non-linearization)

BEFORE USE ....

Thank you for choosing M-System. Before use, please check
contents of the package you received as outlined below.
If you have any problems or questions with the product,
please contact M-System's Sales Office or representatives.
■ PACKAGE INCLUDES:
Signal conditioner (body + CJC sensor) .............................(1)
(Option) DIN rail mounting plate (model: A-31) .........(1 set)
(Option) Spring clip (model: A-02) ................................(1 set)
■ MODEL NO.
Confirm Model No. marking on the product to be exactly
what you ordered.
■ INSTRUCTION MANUAL
This manual describes necessary points of caution when
you use this product, including installation, connection and
basic maintenance procedures.
POINTS OF CAUTION
■ GENERAL PRECAUTIONS
• Before you remove the unit or mount it, turn off the power
supply and input signal for safety.
■ ENVIRONMENT
• Indoor use.
• When heavy dust or metal particles are present in the
air, install the unit inside proper housing with sufficient
ventilation.
• Do not install the unit where it is subjected to continuous
vibration. Do not subject the unit to physical impact.
• Environmental temperature must be within -5 to +70°C
(23 to 158°F) with relative humidity within 30 to 90% RH
in order to ensure adequate life span and operation.
■ WIRING
• Do not install cables close to noise sources (relay drive
cable, high frequency line, etc.).
• Do not bind these cables together with those in which
noises are present. Do not install them in the same duct.
■ AND ....
• The unit is designed to function as soon as power is sup-
plied, however, a warm up for 10 minutes is required for
satisfying complete performance described in the data
sheet.
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
MODEL

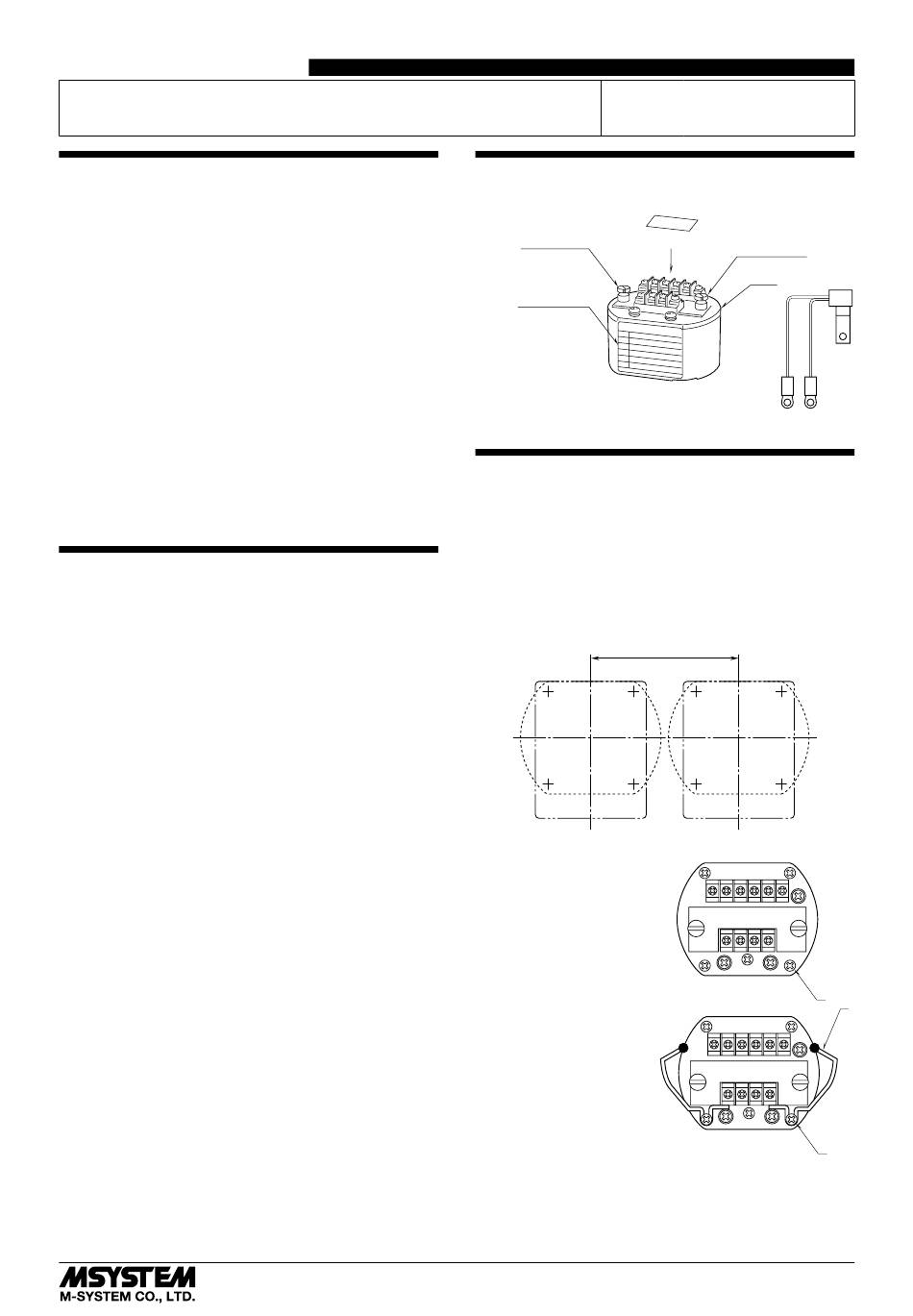

COMPONENT IDENTIFICATION

Connection Diagram
Knurled Knob
Specifications

INSTALLATION

■ 35-mm DIN RAIL MOUNTING PLATE A-31 (optional) unit: mm (inch)
1) Attach the unit to the DIN rail mounting plate with
screws included in the package.
2) Set the plate so that its DIN rail adapter is at the bottom.
Hang the upper hook at the rear side on the DIN rail
and push in the lower. When removing the plate, push
down the DIN rail adapter utilizing minus screwdriver
and pull.
80 (3.15) MIN.
■ SPRING CLIP A-02 (optional)
1) Remove the two flat-
head screws A located at
the bottom as shown to
the right.
2) Set Spring Clip B on
the mounting hole and
tighten it as shown to
the right with a binding
screw C included in the
package.
3) Check that the clips
contract and release
smoothly.
6TS1
(Top)
Knurled Knob
Body
CJC Sensor
A
C
EM-4211 Rev.7 P. 1 / 4
B
