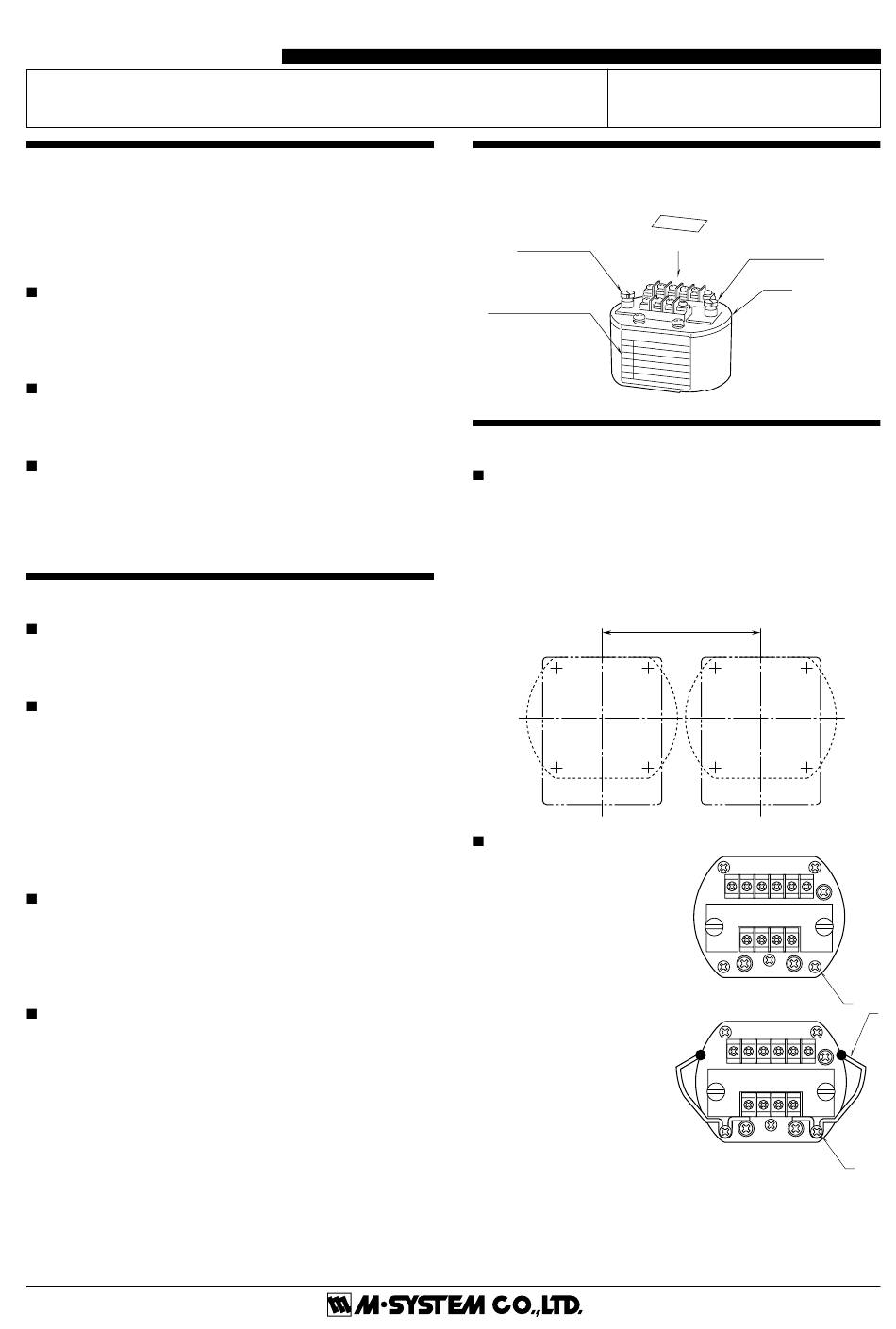

M-system 6AC Instruction Manual

INSTRUCTION MANUAL
AC TRANSMITTER
BEFORE USE ....
Thank you for choosing M-System. Before use, check the
package you received as below.
If you have any problems or questions with the product,
please contact M-System's Sales Office or representatives.
PACKAGE INCLUDES:
Signal conditioner ....................................................... (1)
(Option) DIN rail mounting plate (model: A-31) . (1 set)
(Option) Spring clip (model: A-02) ....................... (1 set)
MODEL NO.
Check that model No. described on specification label is
exactly what you ordered.
INSTRUCTION MANUAL
This manual describes necessary points of caution when you
use this product, installation, connection and basic mainte-
nance procedures.
POINTS OF CAUTION
GENERAL
• Before you remove the unit from its base socket or mount it,
turn off the power supply and input signal for safety.
ENVIRONMENT
• Indoor use
• When heavy dust or metal particles are present in the air,
install the unit inside proper housing and ventilate it.
• Do not install the unit where it is subjected to continuous
vibration. Do not apply physical impact to the unit.
• Environmental temperature must be within -5 to +70°C (23
to 158°F) with relative humidity within 30 to 90% RH in order
to ensure adequate life span and operation.
WIRING
• Do not install cables (power supply, input and output) close
to noise sources (relay drive cable, high frequency line, etc.).
• Do not bind these cables together with those in which noises
are present. Do not install them in the same duct.
AND ....
• The unit is designed to function as soon as power is
supplied, however, a warm up for 10 minutes is required for
satisfying complete performance described in the data sheet.
MODEL
COMPONENT IDENTIFICATION
Connection Diagram Label
Knurled Knob
Specification Label
INSTALLATION
35-mm DIN RAIL MOUNTING PLATE A-31 (optional) mm (inch)
1) Attach the unit to the DIN rail mounting plate with screws
included in the package.
2) Set the plate so that its DIN rail adapter is at the bottom.
Hang the upper hook at the rear side on the DIN rail and
push in the lower. When removing the plate, push down
the DIN rail adapter utilizing screwdriver (–) and pull.
SPRING CLIP A-02 (optional)
1) Remove the two flat-head
screws A located at the bot-
tom as shown to the right.
2) Set Spring Clip B on the
mounting hole and
tighten it as shown to
the right with a binding
screw C included in the
package.
3) Check that the clips con-
tract and release
smoothly.
6AC
(Top)
Knurled Knob
Body
80 (3.15) MIN.
P. 1 / 2 EM-4236 Rev.4
6AC
A
B
C
