ECX03024 | ECX03024AU | ECX03024I
ECX03025 | ECX03025AU | ECX03025I
INSTRUCTION MANUAL
BEDIENUNGSANLEITUNG
MANUEL D'UTILISATION
MANUALE DI ISTRUZIONI
®
1/10 ELECTRIC BUGGY

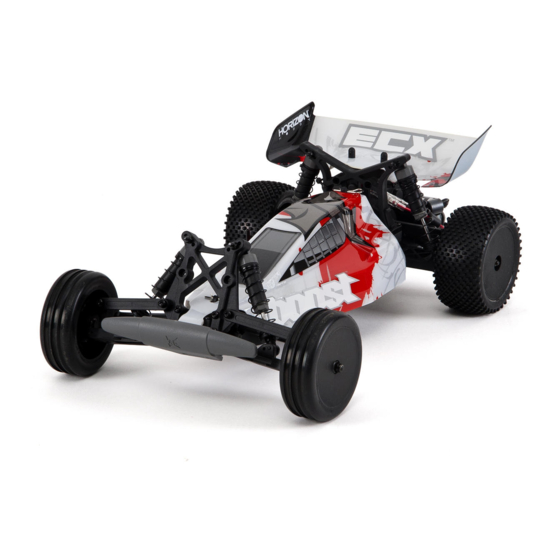

Congratulations on your purchase of the ECX
Boost
Electric Buggy. This 1/10-scale model
™
introduces you to the sport of RC driving.
Herzlichen Glückwunsch zum Kauf des ECX Boost
Electric Buggy. Dieses 1/10 Scale Model öffnet
Ihnen die Welt des RC Car Sports.
Nous vous félicitons pour l'achat de l' ECX Boost
Electric Buggy. Ce modèle 1/10 vous initie à la
conduite RC.
Congratulazioni per l'acquisto di questo Boost
Electric Buggy ECX. Questa vettura in scala 1/10
vi introdurrà nel mondo dei modelli RC.
®
Advertisement
Table of Contents
Related Manuals for ECX Boost ECX03024
Summary of Contents for ECX Boost ECX03024
- Page 1 Herzlichen Glückwunsch zum Kauf des ECX Boost Electric Buggy. Dieses 1/10 Scale Model öffnet BEDIENUNGSANLEITUNG Ihnen die Welt des RC Car Sports. Nous vous félicitons pour l’achat de l' ECX Boost MANUEL D’UTILISATION Electric Buggy. Ce modèle 1/10 vous initie à la conduite RC.
-
Page 2: Table Of Contents
NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, Inc. For up-to-date product literature, visit http://www.horizonhobby.com and click on the support tab for this product. Meaning of Special Language: The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury. -
Page 3: Water-Resistant Vehicle With Waterproof Electronics
WATER-RESISTANT VEHICLE WITH WATERPROOF ELECTRONICS Your new Horizon Hobby vehicle has been designed and built with • Even minimal water contact can reduce the life of your motor if a combination of waterproof and water-resistant components to al- it has not been certified as water-resistant or waterproof. If the motor becomes excessively wet, apply very light throttle until low you to operate the product in many “wet conditions,”... -
Page 4: Components
COMPONENTS 1. ECX ® Boost ® 1/10-scale Electric Buggy 2. Spektrum™ DX2E Transmitter 3. AA (4) Batteries 4. DYN4113 2A Peak Battery Charger 5. Dynamite ® Speedpack™ 7.2V Ni-MH battery (DYN1050EC) VEHICLE PREPARATIONS CHARGING THE VEHICLE BATTERY It may take as many as 2 to 4 restarts to complete your fi rst one or two full charge cycles. -
Page 5: Installing Transmitter Batteries
INSTALLING TRANSMITTER BATTERIES We recommend using only alkaline AA batteries in the transmitter, however, it is possible to use rechargeable NiMH batteries. CAUTION: If using rechargeable batteries, charge only rechargeable batteries. Charging non-rechargeable batteries may cause the batteries to burst, resulting in injury to persons and/or damage to property. -
Page 6: Transmitter Controls
TRANSMITTER CONTROLS REVERSE SWITCH Allows you to change the direction of steering (ST. REV) and throttle (TH. REV) controls (default settings are “N” for steering and “R” for throttle). STEERING RATE STEERING TRIM Adjusts the amount the front wheels move when the Adjust to make the vehicle steering wheel is turned left or right. -
Page 7: Getting Started
GETTING STARTED 2. Power on the ESC. 1. Power on the transmitter. 3. Do a test of the transmitter’s control of the vehicle with 4. Start driving slowly, and, if the vehicle does not go the vehicle’s wheels off the ground. straight, adjust the steering trim dial on the transmitter. -
Page 8: Operation
OPERATION • ALWAYS turn on your transmitter before you turn on the • ALWAYS operate your vehicle in a wide open area. Operating receiver in the vehicle. Always power off the receiver before the vehicle in a small space or indoors can cause overheating turning your transmitter off. -
Page 9: Maintenance
MAINTENANCE SETTING THE GEAR MESH The gear mesh has already been set at the factory. Setting the gear mesh is only necessary when changing motors or gears. You must remove the vehicle’s gear cover (A) to make this adjustment. Proper gear mesh (how the gear teeth meet) is important to the performance of the vehicle. -
Page 10: Shock Cleaning
SHOCK CLEANING REAR SHOCK FRONT SHOCK Oil-fi lled shocks will require regular maintenance due to the ECX1037 ECX1037 oil breaking down or getting dirty. This maintenance should be ECX1043 performed after about every 3 to 5 hours of use, depending on ECX1043 the conditions that the vehicle is used in. -
Page 11: Binding
BINDING Binding is the process of programming the receiver to recognize 5. The LED on the receiver will glow solid when the transmitter the GUID (Globally Unique Identifi er) code of a single specifi c and receiver are bound. transmitter. The DX2E and SR201 are bound at the factory. If you 6. -
Page 12: Limited Warranty
LIMITED WARRANTY What this Warranty Covers that you may need any assistance. For questions or assistance, please visit our Horizon Hobby, Inc., (Horizon) warrants to the original purchaser that the website at www.horizonhobby.com, submit a Product Support Inquiry, or call product purchased (the "Product") will be free from defects in materials and the toll free telephone number referenced in the Warranty and Service Contact workmanship at the date of purchase. -
Page 13: Fcc Information
No. HH2013020903 serve natural resources and ensure that it is recycled in a manner Product(s): ECX 1/10 th Scale Buggy (Boost) V2.1 that protects human health and the environment. For more (Spektrum DX2E Transmitter and SR201 Receiver included) - Page 14 PARTS DIAGRAM | EXPLOSIONSZEICHNUNG | VUE ÉCLATÉE DES PIÈCES | ESPLOSO DEL MODELLO CON REFERENZA PEZZI RECOMMENDED ITEMS EMPFOHLENE WERKZEUGE OUTILS RECOMMANDÉS M3X25 M3X10 ATTREZZI CONSIGLIATI M3X10 M4.3X13 2 mm 1.5 mm M3X12 M3X12 M4.3X13 M4.3X13 M3X18 M3X12 M3X12 M3X8 M3X12 M3X18 M2X8...
- Page 15 PARTS DIAGRAM | EXPLOSIONSZEICHNUNG | VUE ÉCLATÉE DES PIÈCES | ESPLOSO DEL MODELLO CON REFERENZA PEZZI M3X3 The slipper clutch can be adjusted using this locknut (ECX1060). Fully tighten the locknut, then loosen the nut two full M2.5X4 M2.5X8 turns. Die Rutschkupplung kann durch diese Stopmutter eingestellt werden (ECX1060).
- Page 16 Replacement Parts / Ersatzteile / Pièces de rechange / Pezzi di ricambio Part # | Nummer Description Beschreibung Description Descrizione Numéro | Codice ECX3007 Main Chassis Chassis Châssis principal Telaio principale ECX1028 Servo Saver Set Servo Saver Set Sauve servo Set salvaservo Jeu de renfort de Supporti braccetti sosp.
- Page 17 Top Shaft/Spacer Set de Goupilles Set di spessori 48 ECX1033 Setscrew M3x10 Sicherungsschrauben (4) Vis (4) Viti (4) ECX Boost: Karosserie Carrosserie blanche/rouge - ECX230004 Body, White/Red: Boost Carrozz. Bianco/Rosso Boost Weiss Rot Boost ECX Boost: Karosserie Carrosserie noire/noire -...
- Page 18 Created 03/2014 © 2014 Horizon Hobby, Inc. ECX, the ECX logo, Circuit, Dynamite, Speedpack, DSM, DSM2 and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, Inc. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
