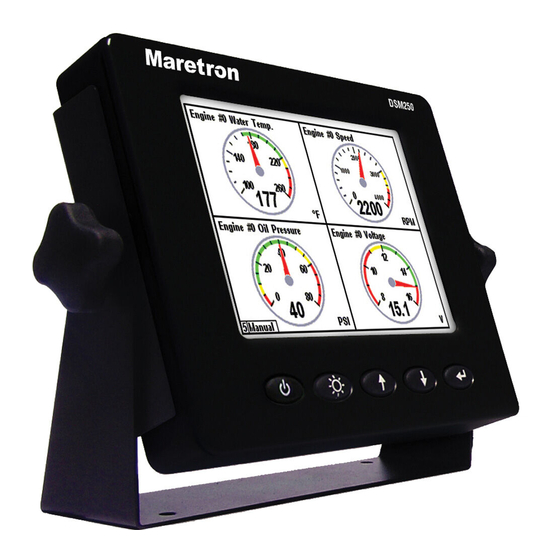

Maretron DSM250 Quick Start Manual
  1. Manuals
  2. Brands
  3. Maretron Manuals
  4. Monitor
  5. DSM250
  6. Quick start manual

Maretron DSM250 Quick Start Manual

Hide thumbs Also See for DSM250:

Advertisement

Quick Links

Download this manual
What firmware changes have taken place on the Maretron
DSM250?
Article Number: 416 | Rating: 5/5 from 1 votes | Last Updated: Wed, Jan 24, 2018 11:23 PM
DSM250 firmware versions:
DSM250 1.7.5.3(2018-01-24):
Correctly display invalid data in LAT/LON screen (4405)
Correctly display PGN 129029 data in LAT/LON screen (4418)
Fixed crashing issue in control mode while setting anchor position (4421)
Corrected an issue which caused DSM250 to re-start after shutting down (4230)
Updated Fluid Type List (4260, 4261)
Re-enabled restore factory defaults menu to IPG100 configurations (4268)
Added DSM410 menu lockout mode (4363)
1.7.2.1(2017-05-11):
Added support for differential mode with single-phase fuel flow sensors (e.g., Coriolis sensors)
(4214)
Added support for the NMEA 2000 Heartbeat Message (PGN 126993) (4216)
Added support for variable PGN transmission intervals for TLA100, TAA100, TLM100,
TLM150, and TLM200 (4215)
Corrected a problem where PGN 130312 did not display for certain sources (4041)
Corrected a problem where Total Fuel Rate and Total Fuel Economy did not display under
certain circumstances (4174)
In SMS100 configuration, corrected an issue sending test messages (4180)
Added support for PGN 127497 for Total Fuel Rate display (4053)
Corrected a problem in the display of VDR100 memory sizes (4062)
1.6.6.3(2016-08-29):
Corrected month display errors in time display (3938)
Corrected a problem where the ALM100 configuration menu was not displayed correctly (3986)
1.6.5.2(2016-07)
Added ability to display the 127252 Heave PGN (3412)

Advertisement

loading
Need help?

Need help?

Do you have a question about the DSM250 and is the answer not in the manual?

Questions and answers

Related Manuals for Maretron DSM250

Summary of Contents for Maretron DSM250

  • Page 1 Correctly display PGN 129029 data in LAT/LON screen (4418) Fixed crashing issue in control mode while setting anchor position (4421) Corrected an issue which caused DSM250 to re-start after shutting down (4230) Updated Fluid Type List (4260, 4261) Re-enabled restore factory defaults menu to IPG100 configurations (4268) Added DSM410 menu lockout mode (4363) 1.7.2.1(2017-05-11):...
  • Page 2 Corrected a problem displaying force values when units are specified as kg (3737) Corrected a crash that occurred when color setup was performed (3747) Corrected a problem that sometimes occurred in sunrise/sunset calculations (3920) Corrected a problem where testing an alert did not result in an audible alarm on the local display (3923) Corrected a crash that occurred during the test option in SMS100 configuration (3847) Corrected a problem where, after the power off sequence was performed, the device would...
  • Page 3 - Added the ability to create alerts based on switch counter and timer values. - Added the ability to reset Airmar depth/speed/temperature transducers to factory default settings. - The DSM250 device instance and the alert source instance (used to identify the display generating a global alert) have been combined into a single parameter.
  • Page 4 - Removed the label setting in the USB100 configuration menu since the USB100 does not support labels. - Corrected a problem where the DSM250 would reset if, while the unit was in control mode, the power button were pressed and held for a long time.
  • Page 5 - Improved display of IPG100 Maretron Cloud Services status - Corrected problems with line graph display - Added support for Maretron proprietary fluid flow rate and fluid volume PGN's, for non-fuel flow applications - 1.4.13.4(2011-10-24) - Adds support for enabling/disabling Maretron Cloud Services on IPG100 Internet - protocol Gateways.
  • Page 6 - 1.4.7 (2010-11-01) - Added support for configuring the FPM100 Fluid Pressure Monitor - Added pressure data type - Added humidity data type - On powerup, if in "manual" favorites mode, the DSM250 will now display the favorite screen that was...
  • Page 7 - being displayed when the unit was powered down - Increased maximum range of Alert Re-trigger Period and Set/Clear Delay from 15 minutes to 12 - hours - Remote Alerts are now always enabled - Corrected an issue where configuration data could sometimes incorrectly be displayed for the - TLM100, TLM150, or TLM200 Tank Level Monitors - Corrected problem with custom window titles - 1.4.6 (2010-03-18)
  • Page 8 - Made the line in line graph display types thicker so it is more visible - Made improvements to how the dsm250 works with annunciators, such as the ALM100 - Add anchor alert as a new alert type (separated from outside radius alert) - 1.4.1 (2009-06-01)
  • Page 9 - Added support for DCM100's with optional 400a and 600a current sensors - Added display type "numeric/precision" for sea temperature displays - Added frequency indication to the time period indication for sentences in the nmea0183 sentence/rate selection menu - Fixed an issue that occurred when there were more than 24 j1939 nodes - Made minor changes to indicator favorite screen menus - Fix issue with weather screen and line graph which could cause device reboot after several days of operation...
  • Page 10 - For true wind calculation, when wind direction is unknown and wind speed is less than 0.01 knots, assume wind direction is 0, so the dsm250 can display true wind when the vessel is moving and we read wind speed as zero - 1.3.7 (2008-10-02)
  • Page 11 - Added color ranges to the tank gauge display by default - Added green and red color to rudder gauge display type - Added additional fuel management capabilities - Added switch status screen - Improved options for entering text - Added switch status to favorite menu and device enable/disable menu - Added capability to configure SIM100 devices - Added capability to configure RIM100 devices - 1.3.4 (2008-08-27)
  • Page 12 - 1.0.9 (2007-11-15) - Added new configurable gauges and half gauges - Now use a red needle for most gauges - Made data categories consistent with N2Kview - Added ability to copy alarm settings from one display to another - Added ability to copy display settings from one display to another - Added ability to copy all settings from one display to another - Corrected issues with copying favorite screens from one display to another - Improved visual quality of some screen elements...
  • Page 13 - Initial customer release Posted - Wed, Apr 16, 2014 2:08 PM. This article has been viewed 3164 times. Online URL: https://www.maretron.com/support/knowledgebase/phpkbv7/article.php?id=416...
