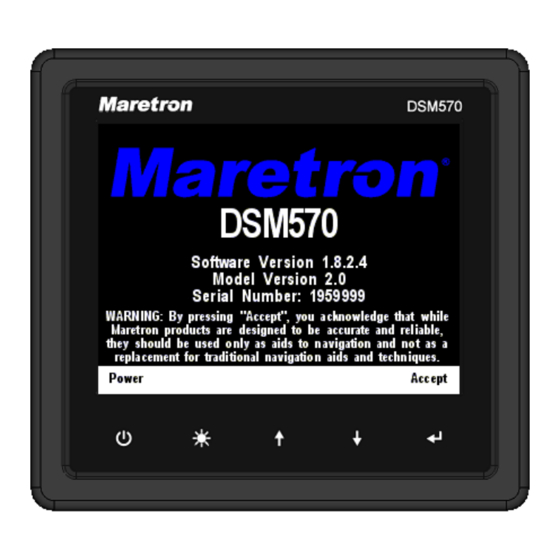

Page 1 DSM570 NMEA 2000 Multi-function Color ® Graphic Display User’s Manual Revision 1.8.3 Copyright ©2020 Carling Technologies, Inc. 60 Johnson Ave. Plainville, CT 06062 USA All Rights Reserved http://www.maretron.com Revision 1.8.3 Page i...
Page 2 DSM570 User’s Manual Revision History Revision Description 1.8.3 Original document. Page ii Revision 1.8.3...
Page 3: Table Of Contents
Installation ............................2 Unpacking the Box ......................2 Choosing a Mounting Location ................... 2 Mounting the DSM570......................2 2.3.1 Flush Mounting the DSM570 ..................2 Connecting the DSM570 ....................3 2.4.1 Checking the Connection ....................3 Operating the DSM570 ........................4 Turning the DSM570 On ....................
Page 4 Transducer Depth Offset ..................... 53 6.1.10 Trip Log ........................54 Bennett EP-30 (NMEA1) Trim Tabs Configuration ............55 6.2.1 Trim Tabs Calibration ....................55 Maretron ACM100 Configuration ..................57 6.3.1 Advanced Configuration ....................57 6.3.2 AC Circuit Type ......................60 6.3.3...
Page 5 Instance ........................71 6.6.4 Channel #1-#6 Configuration ..................71 Maretron DSM200 Configuration ..................74 6.7.1 Remote Device Selection .................... 74 Maretron DSM150/DSM250/DSM410/DSM570 Configuration ......... 76 6.8.1 Remote Device Selection .................... 76 6.8.2 Copy alarms settings from local display ..............77 6.8.3 Copy device selection from local display ..............
Page 6 6.11.13 Water Temperature Sender Offset ................95 6.11.14 Preset Engine Hours ....................95 6.11.15 Tachometer Flywheel Teeth ..................96 6.12 Maretron FFM100 Configuration ..................97 6.12.1 Advanced Configuration ....................97 6.12.2 Device Label ....................... 99 6.12.3 Operating Mode ......................99 6.12.4 Channel #0…...
Page 7 6.19.5 Operating Mode ......................148 6.19.6 Gauge Resistance, + to Sender ................149 6.19.7 Gauge Resistance, - to Sender ................. 149 6.20 Maretron RIM100 Configuration ..................151 6.20.1 Advanced Configuration .................... 151 6.20.2 Device Label ......................152 6.20.3 Instance ........................153 6.20.4 Channel Configuration ....................
Page 8 DSM570 User’s Manual 6.27 Maretron TLM200 Configuration ..................189 6.28 Maretron TMP100 Configuration ..................190 6.28.1 Advanced Configuration .................... 190 6.28.2 Channel Configuration ....................191 6.28.3 Device Label ......................192 6.29 Maretron USB100 Configuration ..................193 6.29.1 Advanced Configuration .................... 193 6.29.2 Remote Device Selection ..................
Page 9 Flashing Screen ......................257 Restore Factory Defaults ....................257 Maintenance ..........................258 10 Troubleshooting ......................... 259 11 Technical Specifications ......................260 12 Technical Support ........................265 13 Installation Template ........................266 14 Maretron (2 Year) Limited Warranty................... 267 Revision 1.8.3 Page ix...
Page 10 Figure 4 – Keypad and Key Names ...................... 5 Figure 5 – Entering a Textual Value ...................... 7 Figure 6 – DSM570 Running in Favorite Screens Mode ..............25 Figure 7 – Main Menu ......................... 26 Figure 8 – Configuration Screen ......................27 Figure 9 –...
Page 11 Figure 71 – DST100 Configuration Screen ..................83 Figure 72 – DST100 Advanced Configuration Screen ................ 83 Figure 73 – Calibrating the DSM570 for DST100 Speed through Water ..........84 Figure 74 – Setting the Transducer Depth Offset in a DST100 ............85 Figure 75 –...
Page 12 Figure 127 – IPG100 N2KServer Information Screen ............... 130 Figure 128 – IPG100 Client List Display ................... 131 Figure 129 – IPG100 Maretron Cloud Services Status Display............132 Figure 130 – J2K100 Configuration Screen ..................134 Figure 131 – J2K100 Advanced Configuration Screen ..............134 Figure 132 –...
Page 13 Figure 143 – RAA100 NMEA 2000 ® PGN Enable/Disable Screen ........... 143 Figure 144 – RAA100 Label Configuration ..................144 Figure 145 – RAA100 Rudder Angle Calibration Options ..............144 Figure 146 – RAA100 Custom Rudder Angle Calibration ..............145 Figure 147 –...
Page 14 DSM570 User’s Manual Figure 191 – Empty Level Calibration ....................175 Figure 192 – Intermediate Level Calibration ..................176 Figure 193 – Full Level Calibration ....................176 Figure 194 – Custom Tank Level Calibration Confirmation Screen ..........177 Figure 195 – American Standard Sender Calibration ................ 177 Figure 196 –...
Page 15 Figure 239 – Compass Rose (North Up) Display ................207 Figure 240 – Date Display Example ....................208 Figure 241 – Date/Time Display Example ..................208 Figure 242 – Gauge Display Example ....................209 Figure 243 – Rudder Angle Gauge Display Example ................ 209 Figure 244 –...
Page 16 DSM570 User’s Manual Figure 287 – Trigger Configuration – GPS Quality Alert ..............244 Figure 288 – Direction Alert Parameters ................... 245 Figure 289 – Trigger Configuration – Direction Alert ................. 245 Figure 290 – Alert Editor – Time Alert ....................246 Figure 291 –...
Page 17: General
The Maretron DSM570 is designed to operate within the harsh demands of the marine environment. However, no piece of marine electronic equipment can function properly unless installed, configured, and maintained in the correct manner.
Page 18: Installation
If mounting with silicone adhesive, apply the adhesive to the portion of the DSM570 that will come into contact with the mounting surface once installed. 6. If mounting with machine screws, insert the screws into the front of the DSM570 and tighten to nuts on the back side of the mounting surface.
Page 19: Connecting The Dsm570
® cable connector is tightened firmly. Connect the other end of the cable (male) to the NMEA 2000 network in the same manner. The DSM570 is designed such that you can plug or unplug it from an ® NMEA 2000 network while the power to the network is connected or disconnected.
Page 20: Operating The Dsm570
To turn the DSM570 off, press and hold the power key. The DSM570 will display a countdown screen, which can be seen in Figure 3. If you continue to hold the power key, the DSM570 will power down in approximately three seconds. If you release the power key before these three seconds have elapsed, the DSM570 will return to its current operational state.
Page 21: Keypad Essentials
Figure 3 – Powerdown Countdown Screen 3.3 Keypad Essentials The DSM570 has a five-key keypad located below the screen. Each key has slightly different functions depending on the operating mode. Figure 4 below shows the DSM570 keys and their names.
Page 22: Navigating In A Menu
3.3.2 Choosing a Value from a List When editing a value chosen from a list, the keys on the DSM570 keypad have the following functions: ) –...
Page 23: Figure 5 - Entering A Textual Value
Figure 5 – Entering a Textual Value The top line contains the textual string that has already been entered. New characters are appended one at a time to the end of the line, at the position marked by the underscore. To append an uppercase character, use the Scroll Up and Scroll Down buttons to select Uppercase and then press Enter to go across to the characters.
Page 24: Settings Lock Mode
5. The DSM570 is now in settings lock mode. You can verify this by pressing the Enter key to display the main menu. You should see only the “Alert Status” and “Favorite Screens Mode”...
Page 25: Important Concepts
DSM570 supports up to 16 different favorite screens. 4.2 Categories and Data Types The DSM570 is capable of displaying many types of information. In order to make it easier to locate a specific type of information to display, the different types of information are organized into general categories: •...
Page 26: Ac Bus
Total Power Factor – displays power factor of the generator Total kWH Export – displays total energy produced by the generator (for the Maretron ACM100, this parameter’s value may be reset to zero with the control mode of the display – see Section 5.2.7.14 for details)
Page 27: Ac Utility
Total Power Factor – displays power factor of the utility Total kWH Export – displays total energy produced by the utility (for the Maretron ACM100, this parameter’s value may be reset to zero with the control mode of the display – see Section 5.2.7.14 for details)
Page 28: Anchor Watch
Phase C Power Factor – displays power factor of phase C of the Utility 4.2.4 Anchor Watch The DSM570 provides a graphical display of the Anchor Alert (section 8.3.7.9) parameters. When the vessel is anchored, the position of vessel at the point of dropping the anchor is entered in to the Anchor Alert plus the maximum distance that the boat can drift from that position (normally a little more than the amount of Anchor Chain that you have let out).
Page 29: Electrical
Resistance – displays electrical resistance 4.2.8 Elec. Distribution The DSM570 supports control of the DCR100, Carling OctoPlex AC and DC Boxes, and other electrical distribution devices that utilize NMEA Command of the 127501 Binary Switch Status message for controlling loads.
Page 30: Environment
Trip Fuel Used field of the 127497 Trip Parameters, Engine message, such as the Maretron FFM100, may be reset with the control mode of the display – see Section 5.2.7.14 for details) Warning – displays warning conditions generated by the engine 4.2.10...
Page 31: Fuel Management
Time to empty is only applicable if the conditions remain the same. Total Fuel Capacity – displays the total capacity of all fuel tanks. The DSM570 can only compute total fuel capacity assuming all totalized tanks are transmitting their capacity.
Page 32: Gps
(fuel flow transducers that are capable of being reset via the 126208 NMEA 2000 command of the Trip Fuel Used field of the 127497 Trip Parameters, Engine message, such as the Maretron FFM100, may be reset with the control mode of the display – see Section 5.2.7.14 for details).
Page 33: Mechanical
4.2.19 Navigation The DSM570 is not a primary navigation device; that is, it does not provide means for entering and storing waypoint and route data. The DSM570 can receive information on the current leg of the voyage from a primary navigation device (such as a chart plotter or PC with navigation software and ®...
Page 34: Pressure/Vacuum
® NMEA 2000 command of the Distance Since Last Reset field of the 128275 Distance Log message, such as the Maretron DST110, may be reset with the control mode of the display – see Section 5.2.7.14 for details) Page 18...
Page 35: Tank
4.2.25 Tank The DSM570 supports the display of information for up to sixteen tanks types (16 fuel plus 16 water, etc.). Capacity – displays the fluid capacity of the tank Level – displays the level of fluid in the tank as a percentage of its capacity Remaining –...
Page 36: Transmission
DSM570 User’s Manual 4.2.28 Transmission The DSM570 supports the display of information for up to four transmissions. Gear – displays the current gear of the transmission (forward, neutral, or reverse) Oil Pressure – displays the pressure of the oil in the transmission Oil Temp.
Page 37 True Speed – displays the speed of the wind as it would appear to an observer if the vessel was stopped in the water, calculated using speed through water (STW) or speed over ground (SOG) (depending on the unit setting of the “Wind True Vessel Ref.” Parameter, see Section 5.2.7.6) Revision 1.8.3 Page 21...
Page 38: Alerts
Alerts. Optionally, an Annunciator message is sent to devices capable of sounding an audio alarm (e.g. the ALM100). Currently, the DSM150, DSM250, DSM410, DSM570 and N2KView™ Vessel Monitoring Software are capable of generating and receiving Alert Messages.
Page 39: Vessel Alert Operating Modes
Alert Status Screen, and by a flashing colored box at the top right of the DSM570 screen. This box will be visible on all screens. Also, annunciators that are programmed to sound when this alert is active will be sounding during this state. An active alert can be accepted by the user (causing it to become an Accepted Alert) or disabled by the user (causing it to become a Disabled Alert).
Page 40: Available Alert Classes
Alert Status Screen in the “What Happened” column. 4.3.6 Available Alert Classes The DSM570 has several classes of alerts, depending on the parameter for which an alert is being configured. • Low Alert – The alert will become active if the monitored value drops below the value in this alert for longer than the time specified in the Set Delay field.
Page 41: Operating Modes
Auto mode – the DSM570 automatically cycles between “favorite” screens, at time intervals which are individually programmable for each “favorite” screen. An example screen of the DSM570 running in favorite screens mode can be seen in Figure 6 below. Figure 6 – DSM570 Running in Favorite Screens Mode...
Page 42: Menu Mode
The menu mode is entered while viewing favorite screens by pressing the Enter key ( In menu mode, the DSM570 may be configured by scrolling up and down the menu and selecting one of the submenus found there. The DSM570 Main Menu can be seen in Figure 7 below.
Page 43: Alert Setup Menu
5.2.1 Alert Setup Menu Selecting Alert Setup… from the Main Menu allows you to create, delete, and edit the Alerts stored in the DSM570, and to change the operating mode of the vessel. See section 7.25 for details on the Alerts.
Page 44: Figure 9 - Device Selection Screen
) to accept the setting. The DSM570 will retain information on devices that have been removed from the bus or powered down (“Offline”) so that when they are placed back on the bus, they will assume their prior “Display” setting.
Page 45: Display Settings Menu
Tools such as Maretron N2KAnalyzer allow you to view these values later. See section 3.3.4 for details on how to enter a textual value.
Page 46: Figure 12 - Dsm570 Primary Device Selection
DSM570 User’s Manual 5.2.4.1.2 Primary Device Selection Not all the data displayed by the DSM570 can be taken directly off the NMEA 2000 bus. Some require calculations with other parameters before the desired value can be displayed. An example would be the display of ground relative wind. In this case, the wind measured by the weather station needs to be combined with the vessel heading, course over ground, and speed over ground.
Page 47: Figure 13 - Dsm570 Advanced Information Screen
Baud Rate: the speed capability of the connected network given in bits per second (bps), Voltage: the network voltage as measured by the DSM570 in Volts, Traffic: the percent usage of the total available bandwidth measured by the DSM570, Receive Rate: the DSM570 measured received rate in frames per second (fps),...
Page 48: Figure 15 - Backlight Menu
The DSM570 has three user-programmable lighting levels which may be cycled through using the Lights key ( ) on the keypad while the DSM570 is operating in favorite screens mode. Each time you quick press the Lights key ( ) in favorite screens mode, the DSM570 backlight will transition between the “Low”...
Page 49: Figure 16 - Color Palette Selection Screen
Set #1 while changing between color palettes when using a long press of the Lights key ( ) when the DSM570 is operating in favorite screens mode. Change the “Color Set:” back to “On” to enable this color palette. Notice that Color Set #1 has a white background (100% Red, 100% Green, and 100% Blue equals white) and that the foreground color is black.
Page 50: Figure 18 - Setting The Demo Mode
DSM570 to return to using data from the NMEA 2000 bus. In order to be able to demonstrate all of the DSM570’s capabilities, the unit allows the user to setup and configure different screens while in demo mode. However, in a show room environment and five minutes after the last button push (i.e., the customer has walked away the demo unit), the DSM570...
Page 51: Figure 19 - Setting The Keyboard Beep Option
Figure 19 – Setting the Keyboard Beep Option 5.2.4.7 Label Each DSM570 can be given a software label. Normally this label will indicate the position of the DSM570 and is used by the Alert System to identify one DSM570 from another.
Page 52: Favorite Screens Mode
DSM570 User’s Manual 5.2.5 Favorite Screens Mode The DSM570 supports two methods of operation in favorites mode: “Auto”, in which the DSM570 automatically cycles through all favorite screens that have been enabled for Auto mode, and “Manual”, in which the DSM570 continues to display the currently displayed favorite screen until you...
Page 53: Figure 23 - Favorite Screen Parameters
Auto/Manual – this favorite screen is displayed in both Auto and Manual modes 5.2.6.2 Format The DSM570 offers many methods and formats of displaying multiple data items at a given time. This parameter is used to program how many data items will appear on this particular favorite screen and in what sizes these items will appear.
Page 54: Figure 24 - Setting The Favorite Screen Format
In Auto mode, this parameter determines the amount of time this favorite screen is displayed before the DSM570 automatically cycles to the next higher numbered favorite screen in the auto mode. This parameter is programmable to anywhere between 1 second and 180 seconds.
Page 55: Figure 26 - Selecting The Data Category
5.2.6.4 Window Data The Window Data section of the menu allows you to select a particular type of data to be displayed in each part of the screen. Selecting the data to be displayed is a two-step process. First, press the Enter key ( ) and select the category of data to be displayed.
Page 56 You use the instance field to tell the DSM570 which GPS to use for displaying data. Most of the time, the DSM570 simply displays a single parameter from a device on the network so you will only see one “Instance” entry. There are other parameters that the DSM570 displays that are a combination of information from multiple products on the network.
Page 57: Units Menu
NMEA 2000 bus. If the DSM570 is not showing heading or COG (i.e., no needle on compass rose or dashes for digital displays), it’s probably a good indication that variation isn’t available on the network. The DSM570 can’t calculate true heading given magnetic heading from a compass if variation isn’t available.
Page 58 DSM570 User’s Manual • Meters • Fathoms • Feet 5.2.7.3 Distance This menu item allows you to select the units to be used for the display of all distance-related information. Units that may be selected are the following: • Nautical Miles •...
Page 59 • °F • °C 5.2.7.8 Atmospheric Pressure This menu item allows you to select the units to be used for the display of atmospheric (barometric) pressure. Units that may be selected are the following: • Inches Mercury (in Hg) • Bar •...
Page 60 DSM570 User’s Manual • DD-MMM-YYYY (31-JAN-2005) 5.2.7.14 Force This menu item allows you to select the units to be used for the display of force. Units that may be selected include the following: • Newtons • Kilograms • Pounds 5.2.7.15 Mass This menu item allows you to select the units to be used for the display of mass.
Page 61: Control Mode
5.2.7.19 Motion Velocity This menu item allows you to select the units to be used for the display of velocity. Units that may be selected include the following: • Meters/Second • Inches/Second • Feet/Second • km/Hour • miles/hour • knots 5.2.7.20 Motion Acceleration This menu item allows you to select the units to be used for the display of acceleration.
Page 62 ® NMEA 2000 command message, such as the Maretron DST110, may be reset with the control mode of the display – see Section 5.2.7.14 for details For resetting “Engine Total Fuel Used”, “Trip Volume”, or “Trip Log”, use the following procedure to reset the total in the transducer providing the value.
Page 63: Device Configuration
Maretron Alternating Current Monitor (ACM100) – set circuit type, device type, instance number, and label. Reset the total energy recorded. Maretron Annunciator (ALM100) – set the data instance number and the label. Test the alarm. Maretron Current Loop Monitor (CLM100) – set the channel operating mode, set transducer characteristics, and set damping Maretron Direct Current Monitor (DCM100) –...
Page 64 DSM570 User’s Manual Maretron Run Indicator Monitor (RIM100) – set data instance for the device, and labels for the device and each channel. Maretron Switch Indicator Monitor (SIM100) – set data instance for the device, and labels for the device and each channel. Set each channel mode.
Page 65: Figure 29 - Device Configuration Screen
Figure 29 – Device Configuration Screen The “NA” column of the menu displays the node address the device is using. The “Manufacturer” column of the menu displays the manufacturer of the device. The “Model” column displays the model number of the device. The “SN#”...
Page 66: Airmar Depth/Speed/Temperature Transducers
DSM570 User’s Manual 6.1 Airmar Depth/Speed/Temperature Transducers The DSM570 supports configuration and calibration of the following Airmar ® Depth/Speed/Temperature transducers that have NMEA 2000 interfaces: • DST800 • DT800 • P39 • P79 • B122 • ST850 • ST800 • HT200...
Page 67: Device Instance
Tools such as Maretron N2KAnalyzer allow you to view these values later. See section 3.3.4 for details on how to enter a textual value.
Page 68: Speed Calibration
DSM570 User’s Manual 6.1.6 Speed Calibration The Airmar speed transducer speed through water (STW) initial accuracy is significantly affected by the location or placement of the speed transducer within the hull. The speed transducer can be corrected for these inaccuracies using the speed calibration procedure. You calibrate the speed ) with the “Speed Calibration…”...
Page 69: Transducer Depth Offset
Figure 33 – Airmar Temperature Transducer Water Temperature Calibration Screen 6.1.9 Transducer Depth Offset The DSM570 can set the transducer depth offset parameter in an Airmar depth transducer. If you are interested in the actual water depth (as opposed to the depth beneath the keel), then you should program a positive value equal to the distance from the waterline to the depth of the depth transducer.
Page 70: Trip Log
6.1.10 Trip Log The DSM570 is capable of clearing the trip log counter within an Airmar speed transducer. You zero ) with the “Trip Log:” menu item selected which results in the trip log by pressing the Enter key ( ) key while the “Reset”...
Page 71: Bennett Ep-30 (Nmea1) Trim Tabs Configuration
6.2 Bennett EP-30 (NMEA1) Trim Tabs Configuration This describes the configuration of the Bennett EP-30 trim tabs firmware version 1.0.7 (“NMEA1” NMEA 2000 Trim Tab Indicator Kit). The EP-30 configuration menu is shown below in Figure 36 below, and currently has the single entry “Trim Tabs Calibration…”. Figure 36 –...
Page 72: Figure 38 - Ep-30 Intermediate Calibration Screen
DSM570 User’s Manual After you press the Accept ( ) key, a screen, shown in Figure 38 below, appears, instructing you to now lower both trim tabs to the full down position. It is important that you do this without stopping in order for the calibration process to succeed.
Page 73: Maretron Acm100 Configuration
6.3 Maretron ACM100 Configuration This describes the configuration of the Maretron ACM100 firmware version 1.0.8.2. Figure 40 – ACM100 Configuration Screen 6.3.1 Advanced Configuration Advanced Configuration changes some complex parameters within the device and should only be performed by an advanced user. Typically, advanced configuration is only done at installation and should not need to be done while at sea.
Page 74 DSM570 User’s Manual 6.3.1.2 Current Transformer B The ACM100 with firmware revision 1.0.7 or newer supports two different types of current sensors: the 100A current sensor included with the unit and an optional 400A current sensor. This menu entry allows you to indicate which type of current sensor you have installed for phase B.
Page 75: Figure 42 - Acm100 Nmea 2000 Pgn Enable/Disable Screen
The ACM100 Alternating Current transmits a number of the NMEA2000 PGNs which can be turned on or turned off by the DSM570 display. For reasons of compatibility with older NMEA2000 devices, some of these PGNs are redundant; disabling these PGNs will reduce the amount of traffic on the bus.
Page 76: Ac Circuit Type
DSM570 User’s Manual You can enable or disable the transmission of a PGN message or set the frequency of transmission of the message by pressing the Enter key ( ) on the message to be configured. Options are: • Off – The PGN will not be transmitted •...
Page 77: Label
6.3.5 Label A device label may be assigned to the ACM100 as an aid to identifying the device over the network (i.e., Shore Power or Port Generator, etc.). Typically, this label will describe the equipment to which the ACM100 is connected. See section 3.3.4 for details on how to enter a textual value. 6.3.6 Reset Total Energy Recorded The ACM100 will accumulate the total amount of energy produced by a Generator or a Utility.
Page 78: Maretron Alm100 Configuration
DSM570 User’s Manual 6.4 Maretron ALM100 Configuration This describes the configuration of the Maretron ALM100 firmware version 1.0.5. Figure 44 – ALM100 Configuration Screen 6.4.1 Advanced Configuration Advanced Configuration changes some complex parameters within the device and should only be performed by an advanced user.
Page 79: Instance
Tools such as Maretron N2KAnalyzer allow you to view these values later. See section 3.3.4 for details on how to enter a textual value.
Page 80: Label
DSM570 User’s Manual 6.4.3 Label A label may be assigned to the ALM100 as an aid to identifying the device over the network. Typically, this label will describe the location of the ALM100. See section 3.3.4 for details on how to enter a textual value.
Page 81: Maretron Clm100 Configuration
6.5 Maretron CLM100 Configuration This describes the configuration of the Maretron CLM100 firmware version 1.0.1.6. Figure 47 – CLM100 Configuration Screen 6.5.1 Advanced Configuration Advanced Configuration changes some complex parameters within the device and should only be performed by an advanced user. Typically, advanced configuration is only done at installation and should not need to be done while at sea.
Page 82: Advanced Configuration
The CLM100 Current Loop Monitor can transmit the NMEA2000 PGNs #65286, 127751, 130313, 130314, 130816, and 130840 which can be turned on or turned off by the DSM570 display. Only the PGN's which correspond to the configuration of the channels will be shown in this list. Pressing the Enter key with “NMEA2000 PGN Enable/Disable…”...
Page 83: Channel Configuration
6.5.3 Channel Configuration Individual channels may be configured by using the Scroll Up and Scroll Down buttons to highlight the channel, and then pressing the Enter key. The following screen will be displayed. Figure 50 – CLM100 Channel Configuration Screen 6.5.3.1 Label A label may be assigned to each channel of the CLM100 as an aid to identifying the parameter that is being displayed.
Page 84 DSM570 User’s Manual • Disable – the channel is disabled and transmits no data over the NMEA 2000 network 6.5.3.3 Instance From here the instance number used in the message send for this channel may be set. 6.5.3.4 Source This parameter is present only when the channel has been configured for the function of Temperature, Pressure, Humidity, or Flow Rate.
Page 85: Maretron Dcr100 Configuration
6.6 Maretron DCR100 Configuration The DSM570 is capable of configuring the Maretron DCR100 DC Relay device. This section describes the configuration of the Maretron DCR100 firmware version 1.1.1. The main DCR100 configuration screen is shown below. Figure 51 – DCR100 Configuration Screen 6.6.1 Advanced Configuration...
Page 86: Figure 53 - Dcr100 Current Sensor Zero Offset Calibration Screen
DSM570 User’s Manual Figure 53 – DCR100 Current Sensor Zero Offset Calibration Screen Press Begin to execute the calibration process or Cancel to return to the previous menu. During the calibration process, all channels will be turned off. When the calibration is complete, the following screen will be displayed.
Page 87: Device Label
This option restores all settings on the device to their factory default state. 6.6.2 Device Label This entry allows you to assign a text label to the device. This label is visible in Maretron analysis and display products and allows you to easily identify the particular device.
Page 88: Figure 56 - Dcr100 Channel Configuration Screen (Dcr Mode)
Figure 56 – DCR100 Channel Configuration Screen (DCR Mode) 6.6.4.1.1 Label This entry allows you to assign a text label to the device. This label is visible in Maretron analysis and display products and allows you to easily identify the particular device.
Page 89: Figure 57 - Dcr100 Channel Configuration Screen (Alm Mode)
Figure 57 – DCR100 Channel Configuration Screen (ALM Mode) 6.6.4.2.1 Label This entry allows you to assign a text label to the device. This label is visible in Maretron analysis and display products and allows you to easily identify the particular device.
Page 90: Maretron Dsm200 Configuration
6.7.1 Remote Device Selection ® A DSM570 unit can be used to configure a remote DSM200 to set which NMEA 2000 devices are selected for display on the remote DSM200 unit. In this manner, multiple devices of the same type ®...
Page 91 The “NA” column of the menu displays the node address the device is using. The “Manuf.” column of the menu displays the manufacturer of the device. The “Model” column displays the model number of the device. The “SN#” column displays the serial number of the device, so that any of two or more devices of the same manufacturer and model number may be distinguished from one another.
Page 92: Maretron Dsm150/Dsm250/Dsm410/Dsm570 Configuration
“Copy favorite settings from local display”. Figure 60 – DSM150/DSM250/DSM410/DSM570 Remote Configuration Screen 6.8.1 Remote Device Selection A DSM570 unit can be used to configure a remote DSM150/DSM250/DSM410/DSM570 to set which ® NMEA 2000 devices are selected for display on the remote DSM150/DSM250/DSM410/DSM570 ®...
Page 93: Copy Alarms Settings From Local Display
“Display” setting. 6.8.2 Copy alarms settings from local display It is possible to copy the alarm settings from a DSM570 unit to a remotely located DSM150/DSM250/DSM410/DSM570. This should be done with care because if more than one Alert Source is monitoring the same parameter, then multiple alerts will be generated when the parameter goes out of bounds, and each one will need to be independently accepted or cancelled.
Page 94: Copy Device Selection From Local Display
DSM570 User’s Manual Figure 62 – DSM150/DSM250/DSM410/DSM570 Copy alarms settings from local display After you select this menu item and press Enter, the alarm settings from this DSM570 unit will be copied to the selected remote DSM150/DSM250/DSM410/DSM570 unit. 6.8.3 Copy device selection from local display...
Page 95: Copy Display Settings From Local Display
6.8.5 Copy favorite settings from local display It is also possible to copy the favorite screen settings from one DSM570 to a remote DSM150/DSM250/DSM410/DSM570 unit. This menu item can be seen selected in Figure 65 below. Figure 65 – DSM150/DSM250/DSM410/DSM570 Copy favorite settings from local display...
Page 96: Copy Dst100 Calibrations From Local Display
DST100 calibration data is not stored in the DST100 device. Rather each DSM150/DSM250/DSM410/DSM570 needs to apply its own set of calibration parameters to the raw data received. This operation allows one DSM570 to copy its calibration table to a second DSM150/DSM250/DSM410/DSM570.
Page 97: Label
Also use this function to copy settings from an old DSM150/DSM250/DSM410/DSM570 to a new DSM150/DSM250/DSM410/DSM570 when replacing the device. Figure 68 – DSM150/DSM250/DSM410/DSM570 Copy all settings from local display 6.8.8 Label The Label of the DSM150/DSM250/DSM410/DSM570 is used by the Alert System to identify the source of an alert.
Page 98: Figure 70 - Dsm150/Dsm250/Dsm410/Dsm570 Remote Device Selection
DSM570 User’s Manual Figure 70 – DSM150/DSM250/DSM410/DSM570 Remote Device Selection Page 82 Revision 1.8.3...
Page 99: Maretron Dst100 Configuration
6.9 Maretron DST100 Configuration The DSM570 is capable of configuring Maretron’s DST100 for several different parameters including trip log resetting, transducer depth offset, and speed calibration. This describes the configuration of the Maretron DST100 firmware version 1.0.1. Figure 71 – DST100 Configuration Screen 6.9.1 Advanced Configuration...
Page 100: Clear Speed Calibration
The DST100 speed through water (STW) initial accuracy is significantly affected by the location or placement of the DST100 within the hull. The DSM570 can correct for these inaccuracies using the speed calibration procedure. You calibrate the DSM570 for the DST100 STW by pressing the Enter ) with the “Speed Calibration…”...
Page 101: Transducer Depth Offset
DST100. The DSM570 will then add the measured depth of the water (as seen by the DST100) to the programmed offset value to produce the total water depth. If you are interested in the depth of water beneath the keel, then you should program a negative value equal to the distance between the DST100 and the bottom of the keel.
Page 102: Figure 75 - Resetting The Dst100 Trip Distance Log
DSM570 User’s Manual “Reset” menu item is selected will complete the operation. Resetting the trip log zeroes the DST100’s trip log such that all displays receive a zeroed value (i.e., you don’t have to perform the operation from other display locations).
Page 103: Maretron Dst110 Configuration
6.10 Maretron DST110 Configuration The DSM570 is capable of configuring Maretron’s DST110 for several different parameters including trip log resetting, transducer depth offset, temperature calibration, and speed calibration. Figure 76 – DST110 Configuration Screen 6.10.1 Advanced Configuration Advanced Configuration changes some complex parameters within the device and should only be performed by an advanced user.
Page 104: Clear Speed Calibration
Tools such as Maretron N2KAnalyzer allow you to view these values later. See section 3.3.4 for details on how to enter a textual value.
Page 105: Speed Calibration
6.10.3 Speed Calibration The DST110 speed through water (STW) initial accuracy is significantly affected by the location or placement of the DST110 within the hull. The DST110 can be corrected for these inaccuracies using the speed calibration procedure. You calibrate the DST110 STW by pressing the Enter key ( ) with the “Speed Calibration…”...
Page 106: Transducer Depth Offset
DST110. The DSM570 will then add the measured depth of the water (as seen by the DST110) to the programmed offset value to produce the total water depth. If you are interested in the depth of water beneath the keel, then you should program a negative value equal to the distance between the DST110 and the bottom of the keel.
Page 107: Trip Log
(at the source). 6.10.7 Trip Log The DSM570 is capable of clearing the trip log counter within a DST110 depth/speed/temperature ) with the “Trip Log:” menu item transducer. You zero the trip log by pressing the Enter key ( selected which results in the screen shown in Figure 75.
Page 108: Maretron Ems100 Configuration
DSM570 User’s Manual 6.11 Maretron EMS100 Configuration This describes the configuration of the Maretron EMS100 firmware version 1.4.1. The EMS100 is configured to match the engine to which it is connected. The EMS100 Configuration changes some complex parameters within the device and should only be performed by an advanced user.
Page 109: Boost Pressure Sender Type
must select the correct type of gauge for this setting in order for the data to be displayed correctly. Valid options are: • No Gauge – select this option if there is no boost pressure gauge present. • YANMAR Select the required option using the Scroll Up and Scroll Down keys followed by the Enter key. 6.11.3 Boost Pressure Sender Type The EMS100 comes from the factory preprogrammed with the characteristics of boost pressure...
Page 110: Drive Trim Sender Offset
DSM570 User’s Manual Select the required option using the Scroll Up and Scroll Down keys followed by the Enter key. 6.11.7 Drive Trim Sender Offset Often, the characteristics of individual drive trim senders vary from their specified values. This setting...
Page 111: Water Temperature Gauge Type
Select the required option using the Increase and Decrease keys followed by the Enter key. 6.11.11 Water Temperature Gauge Type The EMS100 comes from the factory preprogrammed with the characteristics of water temperature gauge types for supported engines. If the EMS100 is used with an analog water temperature gauge, you must select the correct type of gauge for this setting in order for the data to be displayed correctly.
Page 112: Tachometer Flywheel Teeth
DSM570 User’s Manual 6.11.15 Tachometer Flywheel Teeth The EMS100 needs to know the number of flywheel teeth on the engine (or the number of alternator pulses per revolution) in order to correctly calculate engine RPM. Use this setting to program the EMS100 with the number of flywheel teeth or alternator pulses per revolution for the engine to which the EMS100 is connected.
Page 113: Maretron Ffm100 Configuration
6.12 Maretron FFM100 Configuration The DSM570 is capable of configuring the Maretron FFM100 Fluid Flow Monitor. This describes the configuration of the Maretron FFM100 firmware version 1.1.2. Figure 85 – FFM100 Configuration Screen 6.12.1 Advanced Configuration Advanced Configuration changes some complex parameters within the device and should only be performed by an advanced user.
Page 114 This entry allows you to modify the NMEA 2000 installation description text strings. You can enter any information you like here, such as the date the unit was installed, or the location in which it was installed, for later reference. Tools such as Maretron N2KAnalyzer allow you to view these values later.
Page 115: Device Label
Figure 87 – FFM100 NMEA PGN Enable/Disable Screen You can enable or disable the transmission of a PGN message or set the frequency of transmission of the message by pressing the Enter key ( ) on the message to be configured. Options are: Off –...
Page 116: Figure 88 - Ffm100 Channel #0 First Configuration Screen (Differential Mode)
DSM570 User’s Manual 6.12.4.1 Channel #0 (Differential Mode) This section describes the Channel #0 configuration parameters when the FFM100’s operating mode has been set to “Differential”. The Channel #0 (Differential Mode) menu is too large to fit on a single screen, so it is shown in two separate screenshots below.
Page 117 6.12.4.1.9 Temperature Label Program this parameter with a text string which identifies the particular temperature parameter being monitored by this channel. Maretron display products will display this label text when you are selecting data to display. 6.12.4.1.10 Flow Instance Program this parameter to match the desired instance number of the fluid flow reading for this channel.
Page 118: Figure 90 - Ffm100 Channel #0 First Configuration Screen (Two Independent Sensors Mode)
0. 6.12.4.1.13 Volume Label Program this parameter with a text string which identifies the particular volume parameter being monitored by this channel. Maretron display products will display this label text when you are selecting data to display. 6.12.4.2 Channel #0 Configuration Menu (Two Independent Sensors Mode) This section describes the Channel #0 configuration parameters when the FFM100’s operating mode...
Page 119 6.12.4.2.1 Sensor You may select whether this channel is connected to a “3-phase” sensor (Maretron fuel flow sensors with three pulse outputs), or a “1-phase” sensor (other manufacturer’s fluid flow sensors with a single pulse output). 6.12.4.2.2 Engine Instance Program this parameter to match the desired engine instance number of the flow rate and total fuel used for this channel.
Page 120: Channel #1
6.12.4.2.12 Flow Label Program this parameter with a text string which identifies the particular fluid flow parameter being monitored by this channel. Maretron display products will display this label text when you are selecting data to display. 6.12.4.2.13 Volume Instance Program this parameter to match the desired instance number of the volume reading for this channel.
Page 121: Figure 92 - Ffm100 Channel #1 Configuration Screen (Differential Mode)
6.12.5.1.6 Temperature Label Program this parameter with a text string which identifies the particular temperature parameter being monitored by this channel. Maretron display products will display this label text when you are selecting data to display. Revision 1.8.3 Page 105...
Page 122: Figure 93 - Ffm100 Channel #1 First Configuration Screen (Two Independent Sensors Mode)
Figure 94 – FFM100 Channel #1 Second Configuration Screen (Two Independent Sensors Mode) 6.12.5.2.1 Sensor You may select whether this channel is connected to a “3-phase” sensor (Maretron fuel flow sensors with three pulse outputs), or a “1-phase” sensor (other manufacturer’s fluid flow sensors with a single pulse output). 6.12.5.2.2...
Page 123 6.12.5.2.9 Temperature Label Program this parameter with a text string which identifies the particular temperature parameter being monitored by this channel. Maretron display products will display this label text when you are selecting data to display. 6.12.5.2.10 Fluid Type Program this parameter to match the type of fluid whose flow is being monitored.
Page 124: Maretron Fpm100 Configuration
6.12.5.2.12 Flow Label Program this parameter with a text string which identifies the particular fluid flow parameter being monitored by this channel. Maretron display products will display this label text when you are selecting data to display. 6.12.5.2.13 Volume Instance Program this parameter to match the desired instance number of the volume reading for this channel.
Page 125: Figure 96 - Fpm100 Advanced Configuration Screen
The FPM100 Fluid Pressure Module transmits a number of the NMEA2000 PGNs which can be turned on or turned off by the DSM570 display. Pressing the Enter key with “NMEA2000 PGN Enable/Disable…” menu item selected causes the DSM570 to display the following screen (Figure 97).
Page 126: Channel #0-5
DSM570 User’s Manual You can enable or disable the transmission of a PGN message or set the frequency of transmission of the message by pressing the Enter key ( ) on the message to be configured. Options are: Off – The PGN will not be transmitted On –...
Page 127: Figure 99 - Fpm100 Channel #0 Second Configuration Screen (Tank Mode)
“Tank”. 6.13.2.1.2 Label This entry allows you to assign a text label to the device. This label is visible in Maretron analysis and display products and allows you to easily identify the particular device. 6.13.2.1.3...
Page 128: Figure 100 - Fpm100 Tank Levels Calibration Menu
DSM570 User’s Manual • Custom Calibration – use for non-rectangular tanks (also, most accurate in any case, but requires more effort) • Rectangular Tank – By inputting some dimensions of a rectangular tank, the FPM100 is able to interpolate the volume of liquid from the bottom of the tank to the surface.
Page 129: Figure 101 - Tank Levels Calibration Capacity Estimation
Figure 101 – Tank Levels Calibration Capacity Estimation The next step in the calibration process is to fill the tank and indicate the volume of fluid in the tank at various points while filling the tank. This process should be started with an empty tank. You only need to indicate two calibration points for a rectangular tank and can use up to 16 calibration points for a tank with a more complex shape.
Page 130: Figure 103 - Intermediate Level Calibration
DSM570 User’s Manual Figure 103 – Intermediate Level Calibration Once the tank is completely full, instead of pressing the Accept key to store the current calibration point, press the Complete key. This will complete the calibration process and will also adjust the tank capacity to the currently indicated level.
Page 131: Figure 105 - Custom Tank Level Calibration Confirmation Screen
Figure 105 – Custom Tank Level Calibration Confirmation Screen 1.1.1.1.1.2 Rectangular Tank This menu allows calibration of the FPM100 for tanks with a rectangular cross-section. Empty Tank Depth - enter the depth of the fluid when the tank is empty (this distance is usually zero) Full Tank Depth - enter the depth of the fluid when the tank is full (this is the distance from the surface of the fluid to the bottom of the tank) Fluid Density - enter the density of the fluid whose depth is being measured.
Page 132: Figure 107 - Fpm100 Channel (Pressure/Vacuum Mode) Configuration
DSM570 User’s Manual • Fuel • Fresh Water • Waste Water • Live Well • Oil • Black Water • Reserved-1…Reserved-7 – These values may be used when the contents of the tank does not fit into one of the categories above.
Page 133: Maretron Gps100 Configuration
2.0.1 shown here. The GPS100 has several different programmable parameters that are configurable by the DSM570 display. Normally, it is not necessary to configure the GPS100 although there may be some circumstances where configuration is desirable.
Page 134: Advanced Configuration
GPSs on the network, this should be left at zero. 6.14.1.2 GPS Antenna Altitude The DSM570 is capable of setting the antenna altitude on a Maretron GPS100. You can choose this ) with the “Antenna Altitude:” menu item selected which causes setting by pressing the Enter key ( the screen shown in Figure 110 to be displayed.
Page 135: Figure 111 - Configuring Satellite Elevation Mask On A Gps100
If a three-dimensional position fix is obtainable, this value is not used. 6.14.1.3 Elevation Mask The DSM570 is capable of setting the Elevation Mask on a Maretron GPS100. You can choose this ) with the “Elevation Mask:” menu item selected which causes setting by pressing the Enter key ( the screen shown in Figure 111 to be displayed.
Page 136: Figure 112 - Configuring Pdop Mask On A Gps100
6.14.1.5 SNR Mask The DSM570 is capable of setting the SNR (Signal to Noise Ratio) Mask on a GPS100. You choose this setting by pressing the Enter key ( ) with the GPS SNR Mask menu item selected which results in the screen shown in Figure 113.
Page 137: Figure 114 - Gps100 Nmea 2000
) keys followed by the Enter key ( 6.14.1.8 Restore Factory Defaults The DSM570 is capable of restoring all programmable settings on a Maretron GPS100 to the factory ) with the “Restore default condition. You can choose this setting by pressing the Enter key ( Factory Defaults”...
Page 138: Cold Start Gps
Figure 115 – Restoring Factory Defaults on the GPS100 6.14.2 Cold Start GPS The DSM570 is capable of restarting the GPS algorithm on a Maretron GPS100. You can choose this ) with the “Cold start GPS Engine” menu item selected which setting by pressing the Enter key ( causes the screen shown in Figure 116 to be displayed.
Page 139: Device Label
See section 3.3.4 for details on how to enter a textual value. 6.14.5 SBAS (WAAS) Enable/Disable The DSM570 is capable of enabling or disabling the SBAS (WAAS) function on a Maretron GPS Antenna/Receiver (GPS100). You can change this setting by pressing the Enter key ( ) with the “SBAS: WAAS,EGNOS,MSAS:”...
Page 140: Figure 118 - Configuring Sbas On A Gps100
DSM570 User’s Manual Figure 118 – Configuring SBAS on a GPS100 The allowable options for SBAS configuration are either “Disable” which causes the GPS100 not to use SBAS satellites, or “Enable” which causes the GPS100 to use SBAS satellites for developing a position fix.
Page 141: Maretron Gps200 Configuration
6.15 Maretron GPS200 Configuration This describes the configuration of the Maretron GPS200 firmware version 3.5.0. The GPS200 has several different programmable parameters that are configurable by the DSM570 display. Normally, it is not necessary to configure the GPS200 although there may be some circumstances where configuration is desirable.
Page 142: Figure 121 - Gps200 Nmea 2000
) keys followed by the Enter key ( 6.15.1.4 Restore Factory Defaults The DSM570 is capable of restoring all programmable settings on a Maretron GPS200 to the factory ) with the “Restore default condition. You can choose this setting by pressing the Enter key ( Factory Defaults”...
Page 143: Cold Start Gps
Figure 122 – Restoring Factory Defaults on the GPS200 6.15.2 Cold Start GPS The DSM570 is capable of restarting the GPS algorithm on a Maretron GPS200. You can choose this ) with the “Cold start GPS Engine” menu item selected which setting by pressing the Enter key ( causes the screen shown in Figure 116 to be displayed.
Page 144: Figure 124 - Configuring Sbas On A Gps200
DSM570 User’s Manual Figure 124 – Configuring SBAS on a GPS200 The allowable options for SBAS configuration are either “Disable” which causes the GPS200 not to use SBAS satellites, or “Enable” which causes the GPS200 to use SBAS satellites for developing a position fix.
Page 145: Maretron Ipg100 Configuration
6.16 Maretron IPG100 Configuration This describes the configuration of the Maretron IPG100 firmware version 3.6.0. The DSM570 is capable of configuring settings for the Internet Protocol Gateway (IPG100). A screenshot of the IPG100 configuration menus is shown in Figure 125 below.
Page 146: Figure 127 - Ipg100 N2Kserver Information Screen
® installed, for later reference. Tools such as Maretron N2KAnalyzer allow you to view these values later. The default installation description is blank text.
Page 147: Figure 128 - Ipg100 Client List Display
6.16.1.4 This entry shows a window displaying the current status of the connection to Maretron Cloud Services. Maretron Technical Support personnel may ask for the information in this window if there is a problem connecting to Maretron Cloud Services. Revision 1.8.3...
Page 148: Device Label
Windows PC, or an iOS or Android smartphone or tablet. If you have an active Maretron Cloud Services account, you must change this setting to “Enable” so that the IPG100 will connect to Maretron Cloud Services. If you do not use Maretron Cloud Services, change this setting to “Disable”.
Page 149: Ip Address
If the “DHCP” parameter is set to “No”, you will need to configure this parameter. 6.17 Maretron J2K100 Configuration This describes the configuration of the Maretron J2K100 firmware version 1.0.13.2. The DSM570 is capable of configuring settings for the J1939 to NMEA 2000® Gateway (J2K100). A screenshot of the J2K100 configuration menu is shown in Figure 130 below.
Page 150: Advanced Configuration
DSM570 User’s Manual Figure 130 – J2K100 Configuration Screen 6.17.1 Advanced Configuration Advanced Configuration changes some complex parameters within the device and should only be performed by an advanced user. Typically, advanced configuration is only done at installation and should not need to be done while at sea.
Page 151: Figure 132 - J2K100 J1939 Diagnostic Messages Configuration
Tools such as Maretron N2KAnalyzer allow you to view these values later. See section 3.3.4 for details on how to enter a textual value.
Page 152: Figure 133 - J2K100 Request Engine Hours Configuration
The J2K100 interface transmits several different messages, which can be turned on or turned off by ) with “NMEA2000 PGN Enable/Disable…” menu the DSM570 display. Pressing the Enter key ( item selected causes the DSM570 to display the following screen. Figure 134 – J2K100 NMEA 2000 ®...
Page 153: Device Label
6.17.2 Device Label A label may be assigned to the J2K100 as an aid to identifying the device over the network. See section 3.3.4 for details on how to enter a textual value. NMEA 2000 Instance – Engine 6.17.3 This entry allows the engine to be mapped to an NMEA2000 instance number. Each engine on an ®...
Page 154: Ac/Icemaker Instance
DSM570 User’s Manual own J2K100 Gateway. The J1939 Source Address (see section 6.17.4) identifies the transmission on the J1939 network, the Transmission Instance identifies the transmission to the NMEA2000 network. Figure 136 – J2K100 NMEA2000 Transmission Instance Configuration Use the Scroll Up (...
Page 155: J1939 Source Address Configuration
Figure 137 – J2K100 NMEA2000 AC/Icemaker Instance Configuration Use the Scroll Up ( ) or Scroll Down ( ) keys to change the value to the desired value you wish, and then press the Enter key ( ) to accept the value and store it within the J2K100. 6.17.6 J1939 Source Address Configuration A J1939 engine/genset and transmission has its own source address on the J1939 network, which is...
Page 156: Refresh J1939 Source Address List
Enter button. 6.18 Maretron NBE100 Configuration The DSM570 is capable of configuring the Maretron NBE100 Network Bus Extender. This describes the configuration of the Maretron NBE100 firmware version 1.0.0. The NBE100 configuration menu is shown in Figure 139 below.
Page 157: Maretron Raa100 Configuration
6.19 Maretron RAA100 Configuration This describes the configuration of the Maretron RAA100 firmware version 1.4.9. Maretron RAA100 rudder angle adapters on the network may be configured using the DSM570. The RAA100 configuration menu is shown in Figure 141 below. Revision 1.8.3...
Page 158: Advanced Configuration
Tools such as Maretron N2KAnalyzer allow you to view these values later. See Section 3.3.4 for details on how to enter a textual value.
Page 159: Label
The RAA100 Rudder Angle Adapter transmits the NMEA2000 PGN #127245 which can be turned on or turned off by the DSM570 display. Pressing the Enter key with “NMEA2000 PGN Enable/Disable…” menu item selected causes the DSM570 to display the following screen (Figure 143).
Page 160: Rudder Angle Calibration
DSM570. The RAA100 will measure the sender resistance at each point and create a custom calibration map which relates the resistance of the sender with the rudder angle.
Page 161: Figure 146 - Raa100 Custom Rudder Angle Calibration
Enter key ( ) to confirm your selection and begin the calibration process. Figure 146 shows the DSM570 with the Custom Rudder Calibration menu item highlighted. Figure 146 – RAA100 Custom Rudder Angle Calibration The first step in the custom rudder angle sender calibration process is to turn the wheel hard over to starboard, and to measure the angle or the rudder (angle from center) with a protractor or other instrument.
Page 162: Figure 148 - Raa100 Center Rudder Angle Calibration
DSM570 User’s Manual The second step in the custom rudder angle sender calibration process is to turn the wheel so that the rudder is centered as much as possible. Next, press Enter to accept the value and store it within the RAA100.
Page 163: Rudder Number
Figure 150 – RAA100 Custom Rudder Calibration Confirmation Screen 6.19.3.2 Set to American Standard (240-33 ohm) Use the option for rudders using a rudder angle sender with the standard American resistance range (240 ohms at full port 45°, 33 ohms at full starboard 45°). 6.19.3.3 Set to European Standard (0-180 ohm) Use this option for rudders using a rudder angle sender with the standard European resistance range...
Page 164: Operating Mode
DSM570 User’s Manual Figure 151 – RAA100: Setting the Rudder Number 6.19.5 Operating Mode The RAA100 can be operated in one of two operating modes, depending on the installation. • NMEA 2000 (the only thing that is connected to the resistive sender is the RAA100) •...
Page 165: Gauge Resistance, + To Sender
6.19.6 Gauge Resistance, + to Sender If the desired operating mode is “NMEA 2000 & Analog Gauge”, the two gauge resistances must be programmed (please refer to the RAA100 User’s Manual for details on how to perform these measurements). A screenshot of the + to sender gauge resistance configuration is shown in Figure 153 below.
Page 166: Figure 154 - Raa100: Setting The - To Sender Gauge Resistance
DSM570 User’s Manual Figure 154 – RAA100: Setting the – to Sender Gauge Resistance Page 150 Revision 1.8.3...
Page 167: Maretron Rim100 Configuration
This describes the configuration of the Maretron RIM100 firmware version 1.1.1. The DSM570 may be used to configure the channels on the Run Indicator Module (RIM100). After selecting the RIM100 from the list of devices on the network, the following screen will be displayed.
Page 168: Device Label
Tools such as Maretron N2KAnalyzer allow you to view these values later. See Section 3.3.4 for details on how to enter a textual value.
Page 169: Instance
6.20.3 Instance From here the instance used in the data message may be set. 6.20.4 Channel Configuration To configure an individual channel, use the Scroll Up and Scroll Down buttons to highlight the channel, and then press Enter. The following screen will be displayed. Figure 158 –...
Page 170: Maretron Sim100 Configuration
This describes the configuration of the Maretron SIM100 firmware version 1.1.1. The DSM570 may be used to configure the channels on the Switch Indicator Module (SIM100). After selecting the SIM100 from the list of devices on the network, the following screen will be displayed.
Page 171: Device Label
Tools such as Maretron N2KAnalyzer allow you to view these values later. See Section 3.3.4 for details on how to enter a textual value.
Page 172: Instance
DSM570 User’s Manual 6.21.3 Instance From here the instance used in the data message may be set. 6.21.4 Channel Configuration To configure an individual channel, use the Scroll Up and Scroll Down buttons to highlight the channel, and then press Enter. The following screen will be displayed.
Page 173: Maretron Sms100 Configuration
6.22 Maretron SMS100 Configuration This describes the configuration of the Maretron SMS100 firmware version 2.0.1.9. The display may be used to configure the Device Instance and Installation Description on the SMS (Text) Module (SMS100). After selecting the SMS100 from the list of devices on the network, the following screen will be displayed.
Page 174: Label
® installed, for later reference. Tools such as Maretron N2KAnalyzer allow you to view these values later. The default installation description is blank text. See Section 3.3.4 for details on how to enter a textual value.
Page 175: Test
• Bit Error Rate – This entry shows the bit error rate of the cellular network connection. This figure may be requested by Maretron technical support personnel. The middle section of the screen allows you to send a SMS text message to an arbitrary phone number.
Page 176: Maretron Ssc200/Ssc300 Configuration
DSM570 User’s Manual 6.23 Maretron SSC200/SSC300 Configuration This section describes the configuration of the Maretron SSC200 firmware version 5.0.3 and SSC300 firmware version 1.0. Nine configurable parameters for the Maretron SSC200/SSC300 solid state compass may be configured using the Maretron DSM570 display. The Maretron SSC200/SSC300 configuration menu can be seen in Figure 167 below.
Page 177: Figure 169 - Ssc200/Ssc300 Nmea 0183 Settings Screen
Several characteristics of the NMEA 0183 interface of the SSC200/SSC300 may be programmed using the DSM570 display. This can be used for initial programming of a SSC200/SSC300 compass even if only the NMEA 0183 interface is to be used after installation is complete. Figure 169 below shows the possible programming options for the NMEA 0183 interface.
Page 178: Figure 170 - Ssc200/Ssc300 Nmea 0183 Sentence/Rate Selection Screen
DSM570 User’s Manual The last line in the menu enables you to program the lifetime of the variation data received by the SSC200/SSC300. In Figure 170, you can see that the “Variation Time” has been programmed to 5.0 seconds. This means that if the compass has not received magnetic variation for five seconds, it will no longer transmit true heading data, as the variation data it has received is now expired.
Page 179: Installation Offset Calibration
The SSC200/SSC300 compass transmits several different messages, which can be turned on or ) with “NMEA2000 PGN turned off by the DSM570 display. Pressing the Enter key ( Enable/Disable…” menu item selected causes the DSM570 to display the following screen. Figure 172 – SSC200/SSC300 NMEA 2000 ®...
Page 180: Inverted Installation Entry
SSC200/SSC300 can be mounted to the aft side of a bulkhead). If either of these mounting options is used, the DSM570 can be used to inform the SSC200/SSC300 of this fact so that it can adjust heading, rate or turn, pitch, and roll readings to be corrected accordingly.
Page 181: Label
6.23.5 Magnetic Deviation Calibration The DSM570 is capable of performing magnetic deviation calibration on a Maretron SSC200/SSC300 solid state compass. The Rate of Turn Offset Calibration (Section 6.23.8) should be done before the Deviation Calibration. The first screen (Figure 175) gives instructions for performing the procedure.
Page 182: Magnetic Deviation Status
The SSC200/SSC300 is capable of transmitting the rate of turn of a vessel. Different applications may require different damping for the rate of turn measurement. The DSM570 may be used to set the damping period for the rate of turn measurement to anywhere between 0.1 seconds and 60 seconds.
Page 183: Rate Of Turn Zero Offset Calibration
) with the “Rate of Turn Zero Offset Calibration…” menu item selected which the Enter key ( causes the DSM570 to display the screen shown in Figure 179. The Rate of Turn Offset Calibration should be done before the Deviation Calibration (Section 6.23.5).
Page 184: Figure 180 - Setting Variation Source To Nmea 0183 Or Nmea 2000
DSM570 User’s Manual the SSC200/SSC300 User’s Manual for more details on the use of magnetic variation by the SSC200/SSC300 compass. By default, the SSC200/SSC300 is capable of receiving variation information on either its NMEA ® 0183 or NMEA 2000 interfaces. This causes the SSC200/SSC300 to use variation data from either ®...
Page 185: Figure 182 - Setting Variation Source To Nmea 2000 ® Only
® Figure 182 below shows the NMEA 2000 source selected. Figure 182 – Setting Variation Source to NMEA 2000 ® Only ® If there is no magnetic variation source available on either the NMEA 2000 or the NMEA 0183 interface, and you wish to display true heading information, you may manually enter a magnetic variation.
Page 186 WARNING: Magnetic variation changes as your location on the earth changes; therefore, magnetic variation should be adjusted with changes in position. Neither the DSM570 nor the SSC200/SSC300 will make these changes automatically; they are the responsibility of the user.
Page 187: Maretron Tla100 Configuration
6.24 Maretron TLA100 Configuration Maretron TLA100 tank level adapters on the network may be configured using the DSM570. This describes the configuration of the Maretron TLA100 firmware version 1.6.15. The TLA100 configuration menu is shown in Figure 184 below. Figure 184 – TLA100 Configuration Screen 6.24.1...
Page 188: Label
Tools such as Maretron N2KAnalyzer allow you to view these values later. See Section 3.3.4 for details on how to enter a textual value.
Page 189: Tank Levels Calibration
To program the tank capacity, use the Scroll Up ( ) or Scroll Down ( ) keys to move the highlighted cursor over the “Tank Capacity:” menu item. Then, press the Enter key ( ) to move the highlight over the numerical tank capacity value. Use the “Increase” and “Decrease” keys to change the value to the desired tank capacity value, and finally, press the Enter key ( ) to confirm your selection and store the value within the TLA100.
Page 190: Figure 189 - Performing Custom Calibration Of The Tank Level Adapter
Figure 189 below shows a screenshot of the DSM570 with the Custom Calibration option highlighted. Custom calibration is necessary for non-rectangular tanks and for non-standard values of resistances for tank level senders.
Page 191: Figure 190 - Tank Levels Calibration Capacity Estimation
Figure 190 – Tank Levels Calibration Capacity Estimation The next step in the calibration process is to fill the tank and indicate the volume of fluid in the tank at various points while filling the tank. This process should be started with an empty tank. You only need to indicate two calibration points for a rectangular tank and can use up to 16 calibration points for a tank with a more complex shape.
Page 192: Figure 192 - Intermediate Level Calibration
DSM570 User’s Manual Figure 192 – Intermediate Level Calibration Once the tank is completely full, instead of pressing the Accept key to store the current calibration point, press the Complete key. This will complete the calibration process and will also adjust the tank capacity to the currently indicated level.
Page 193: Figure 194 - Custom Tank Level Calibration Confirmation Screen
Figure 194 – Custom Tank Level Calibration Confirmation Screen 6.24.4.2 American Standard Sender Calibration If you have a rectangular tank, and a sender with the standard American resistance range (240 ohms full, 33 ohms empty), and you know the capacity of the tank, you can easily calibrate the sender by using the “Set to American Standard (240-33 ohm)”...
Page 194: Tank Number
DSM570 User’s Manual Figure 196 – European Standard Sender Calibration 6.24.5 Tank Number Next, the tank number must be configured. A tank number can have a value between 0 and 15. Each tank of a particular type must have a tank number that is different from all other tanks of the same type.
Page 195: Operating Mode
keys to position the highlighted cursor over “Tank Type:”, then press the Enter key ( ) to move the highlight to the tank type data itself. Now, use the Scroll Up ( ) or Scroll Down ( ) keys to change the tank type data to the type desired.
Page 196: Gauge Resistance, + To Sender
DSM570 User’s Manual Figure 199 – Configuring the Operating Mode 6.24.8 Gauge Resistance, + to Sender If the desired operating mode is “NMEA 2000 & Analog Gauge”, the two gauge resistances must be programmed (please refer to the TLA100 User’s Manual for details on how to perform these measurements).
Page 197: Figure 201 - Configuring The - To Sender Gauge Resistance
To program the - to sender gauge resistance, use the Scroll Up ( ) or Scroll Down ( ) keys to move the highlighted cursor over the “Gauge Resistance, - to Sender:” menu item. Then, press the ) to move the highlight over the numerical resistance value. Use the “Increase” and Enter key ( “Decrease”...
Page 198: Maretron Tlm100 Configuration
DSM570 User’s Manual 6.25 Maretron TLM100 Configuration The DSM570 may be used to configure and calibrate the Tank Level Monitor (TLM100 / TLM150 / TLM200). This describes the configuration of firmware version 1.1.6. After selecting the TLM100 from the list of devices on the network, the following screen will be displayed.
Page 199: Label
This entry allows you to modify the NMEA 2000 installation description text strings. You can enter any information you like here, such as the date the unit was installed, or the location in which it was installed, for later reference. Tools such as Maretron N2KAnalyzer allow you to view these values later.
Page 200: Tank Levels Calibration
DSM570 User’s Manual the tank capacity being configured. To program the tank capacity, use the Scroll Up or Scroll Down keys to move the highlighted cursor over the “Tank Capacity:” menu item. Then, press the Enter key to move the highlight over the numerical tank capacity value. Use the Increase and Decrease keys to change the value to the desired tank capacity value, and finally, press the Accept key to confirm your selection.
Page 201: Figure 207 - Performing Custom Calibration Of The Tank Level Monitor
Figure 189 below shows a screenshot of the DSM570 with the Custom Calibration option highlighted. Custom calibration is necessary for non-rectangular tanks. To perform custom calibration...
Page 202: Figure 208 - Tank Levels Calibration Capacity Estimation
DSM570 User’s Manual Figure 208 – Tank Levels Calibration Capacity Estimation The next step in the calibration process is to fill the tank and indicate the volume of fluid in the tank at various points while filling the tank. This process should be started with an empty tank. You only need to indicate two calibration points for a rectangular tank and can use up to 16 calibration points for a tank with a more complex shape.
Page 203: Figure 210 - Intermediate Level Calibration
Figure 210 – Intermediate Level Calibration Once the tank is completely full, instead of pressing the Accept key to store the current calibration point, press the Complete key. This will complete the calibration process and will also adjust the tank capacity to the currently indicated level.
Page 204: Figure 212 - Custom Tank Level Calibration Confirmation Screen
DSM570 User’s Manual Figure 212 – Custom Tank Level Calibration Confirmation Screen 6.25.4.2 Rectangular Tank If you have a rectangular tank, and you know the capacity of the tank, you can easily calibrate the sender by using the “Rectangular Tank” menu item. Figure 213 below shows this option highlighted.
Page 205: Tank Number
• Reserved-1..Reserved-7 – These values may be used when the contents of the tank does not fit into one of the categories above. 6.26 Maretron TLM150 Configuration The TLM150 is the gasoline version of the TLM100. The configuration of the two devices is the same;...
Page 206: Maretron Tmp100 Configuration
DSM570 User’s Manual 6.28 Maretron TMP100 Configuration Maretron Temperature Modules (TMP100) may be configured using the DSM570. This describes the configuration of the Maretron TMP100 firmware version 1.1.1. The top level of the TMP100 configuration menu is shown below. Figure 215 – TMP100 Configuration Screen 6.28.1...
Page 207: Channel Configuration
The TMP100 Temperature Module transmits a number of the NMEA2000 PGNs which can be turned on or turned off by the DSM570 display. For reasons of compatibility with older NMEA2000 devices, some of these PGNs are redundant; disabling these PGNs will reduce the amount of traffic bus.
Page 208: Device Label
DSM570 User’s Manual Figure 218 – TMP100 Channel Configuration Screen 6.28.2.1 Instance The Data Instance of the Temperature (as sent in PGNs 130311, 130312, and 130823) is set in this field. Use the Increase and Decrease buttons to select the correct instance number, and the press the Enter button to store it.
Page 209: Maretron Usb100 Configuration
6.29 Maretron USB100 Configuration Maretron USB100 gateways on the network may be configured using the DSM570. This describes the configuration of the Maretron USB100 firmware version 1.8.3. The USB100 configuration menu is shown in Figure 219 below. There is one configurable item for the USB100 and that is “Remote Device Selection…”.
Page 210: Remote Device Selection
This entry allows you to modify the NMEA 2000 installation description text strings. You can enter any information you like here, such as the date the unit was installed, or the location in which it was installed, for later reference. Tools such as Maretron N2KAnalyzer allow you to view these values later.
Page 211: Maretron Vdr100 Configuration
“Display” setting. 6.30 Maretron VDR100 Configuration The DSM570 is capable of performing configuration of the VDR100 Vessel Data Recorder. This describes the configuration of the Maretron VDR100 firmware version 2.0.0.4. Figure 222 below shows a screenshot of the VDR100 configuration menu.
Page 212: Label
This entry allows you to modify the NMEA 2000 installation description text strings. You can enter any information you like here, such as the date the unit was installed, or the location in which it was installed, for later reference. Tools such as Maretron N2KAnalyzer allow you to view these values later.
Page 213: Default Gateway
If the “DHCP” parameter is set to “No”, you will need to configure this parameter. 6.31 Maretron WSO100 Configuration The DSM570 is capable of performing configuration of the WSO100 Wind/Weather Sensor. This describes the configuration of the Maretron WSO100 firmware version 2.0.13. Figure 224 below shows a screenshot of the WSO100 configuration menu.
Page 214: Figure 225 - Wso100 Advanced Configuration Screen
The WSO100 Ultrasonic Wind and Weather Station transmits a number of NMEA2000 PGNs which can be turned on or turned off by the DSM570 display. For the vast majority of installations, the factory setting is appropriate, but if it becomes necessary to disable one of the transmitted messages Page 198 Revision 1.8.3...
Page 215: Device Label
WSO100, for instance, if you have a separate thermometer / humidity sensor / barometer on the network, it is possible to do so with the DSM570.Pressing the Enter key with “NMEA2000 PGN Enable/Disable…” menu item selected causes the DSM570 to display the following screen (Figure 226).
Page 216: Installation Offset Calibration
DSM570 User’s Manual Figure 227 – WSO100 Device Label Menu 6.31.3 Installation Offset Calibration The WSO100 comes from the factory with a preset orientation, so that mounting it with the orientation marks facing the bow of the vessel, the sensor will read 0° apparent wind angle when the vessel is sailing directly into the wind (please refer to the WSO100 User’s Manual for details).
Page 217: Figure 229 - Wso100 Configuration Aborted Due To Low Wind Speed
miles/hour. If the apparent wind speed is lower than this, then an error message will appear, which is shown in Figure 229 below, and the calibration process will be aborted. Figure 229 – WSO100 Configuration Aborted Due to Low Wind Speed If the wind speed is sufficient, then a confirmation screen, shown in Figure 230 below, will appear, indicating that a successful installation offset calibration has completed.
Page 218: Wind Data Damping Period
The WSO100 comes from the factory preset with a damping period of 1.5 seconds, which should be appropriate for most applications. However, you may use the DSM570 to tune the damping period to anywhere between 0.1 seconds and 5.0 seconds if you desire. To do this, use the Scroll Up ( ) or ) keys to move the highlighted cursor to the “Wind Data Damping Period:”...
Page 219: Outside Humidity
Figure 233 – Setting the Barometric Pressure Use the Increase and Decrease buttons to select the correct pressure, and the press the Enter button to store it. 6.31.6 Outside Humidity The Humidity is pre-calibrated before leaving the factory and should not require adjustment. However, the current humidity level may be entered in this screen to re-calibrate the WSO100 should this be required.
Page 220: Figure 235 - Setting The Outside Temperature
DSM570 User’s Manual Figure 235 – Setting the Outside Temperature Use the Increase and Decrease buttons to select the correct temperature, and the press the Enter button to store it. Page 204 Revision 1.8.3...
Page 221: Data Display Types
7 Data Display Types 7.1 Anchor Watch Display The Anchor Watch Display is a graphical representation of an Anchor Alert. See Section 8.3.7.9 for details on how to set up the Anchor Alert. Figure 236 – Anchor Watch Display Example The display is centered on the position at which the anchor is dropped;...
Page 222: Bar Graph
DSM570 User’s Manual 4. To exit the control mode, press the “Lights” key to return to normal operating mode. The highlight will disappear. 7.2 Bar Graph The bar graph display shows a parameter on a vertical bar graph with ten segments. The numeric value of the parameter is shown above the bar graph.
Page 223: Figure 239 - Compass Rose (North Up) Display
Figure 239 – Compass Rose (North Up) Display Revision 1.8.3 Page 207...
Page 224: Date
DSM570 User’s Manual 7.4 Date The date display shows a date. The format of the date shown can be set using the “Units…” menu (please refer to 5.2.7.13 for details on how to set the date format). A full-screen view of a date display can be seen in Figure 240 below.
Page 225: Gauge Display
7.6 Gauge Display The gauge display shows the selected data in a graphical format resembling an analog gauge. There is a general gauge format for most types of display, and a specialized rudder gauge display. A full- screen example of a tachometer display can be seen in Figure 242 below. Figure 242 –...
Page 226: Gps Status Display
DSM570 User’s Manual 7.7 GPS Status Display The GPS Status display shows the following data about the selected GPS receiver: • GPS operating mode (2D, 3D, DGPS) • Satellite signal strength (up to 12 satellites) • Satellite azimuth and elevation (up to 12 satellites) •...
Page 227: Half Gauge Display
Figure 245 – Half Gauge Display Example 7.9 Indicator Light The DSM570 is capable of displaying the state of binary (ON/OFF) sensors on the network with an indicator light display that emulates a status light on a control panel. The display may be set up in several different configurations: •...
Page 228: Figure 246 - Configuration Of Indicator Light Display
DSM570 User’s Manual Figure 246 – Configuration of Indicator Light Display The maximum number of indicator lights you can have on a single screen is 16 (the “4 Quarters” format, with all four windows set to use the “4 rows” or “2 rows, 2 columns” indicator light configurations.
Page 229: Numeric Display
Figure 248 – Configuration of an Individual Indicator Light Each indicator light has several configurable parameters: • Color-Off – select the color to be displayed when the indicator is in the OFF state. The default color is gray. • Color-On – select the color to be displayed when the indicator is in the ON state. The default color is green.
Page 230: Figure 249 - Numeric Display Example
DSM570 User’s Manual Figure 249 – Numeric Display Example The upper left-hand corner indicates the parameter being displayed and the center of the screen shows the numeric value for the indicated parameter. The bottom right hand corner shows the units.
Page 231: Numeric/Precision
The bottom right hand corner shows the units. 7.12 Rolling Road The DSM570 supports a “Rolling Road”, or navigation highway display. This display repeats transmitted navigation data from a primary navigator, such as a chart plotter or a personal computer running navigation software.
Page 232: Figure 251 - Configuration Of Rolling Road Display
DSM570 User’s Manual Figure 251 – Configuration of Rolling Road Display The following data items may be displayed on the rolling road display: • COG (Course Over Ground) • SOG (Speed Over Ground) • BTW (Bearing to Waypoint) • DTW (Distance to Waypoint) •...
Page 233: Line Graph
Figure 252 – Rolling Road Display 7.13 Line Graph The line graph display shows the value of a parameter displayed on the horizontal axis versus time on the vertical axis. Figure 253 below shows the line graph display for barometric pressure over a time period of one day.
Page 234: Time (Hh:mm)
DSM570 User’s Manual Figure 254 – SMS Status Display 7.15 Time (hh:mm) The Time (hh:mm) display shows a time value in an hours and minutes format. Figure 255 below shows an example of this type of display. Figure 255 – Time (hh:mm) Display 7.16 Time (hh:mm:ss)
Page 235: Vdr Status
Figure 257 – VDR Status Display 7.18 Weather Display The DSM570 supports a single-screen weather display that shows a wide variety of weather-related information. A screen shot of the weather display appears in Figure 258 below. Revision 1.8.3...
Page 236: Figure 258 - Weather Display
DSM570 User’s Manual Figure 258 – Weather Display The weather display shows the following information: • Wind Direction (Ground Referenced) • Wind Speed (Ground Referenced) • Heat Index / Wind Chill • Outside Temperature • Outside Humidity • Barometric Pressure •...
Page 237: Wind Rose
Figure 259 – Wind Rose Display 7.20 Moon Phase Display The DSM570 supports a moon phase display which shows the current phase of the moon at the current location. An example screenshot of the moon phase display appears in Figure 260 below.
Page 238: Trim Tabs Bar Graph Display
7.22 Trim Tabs Bar Graph Display The DSM570 supports a trim tab display in which the relative positions of the port and starboard trim tabs are displayed on a dual bar graph. A screenshot of the trim tab display appears in Figure 262 below.
Page 239: Tank Gauge Display
7.24 Tank Gauge Display The DSM570 supports a tank level gauge display type which shows percentage of fluid remaining in a tank on an analog gauge with 180° of travel. A screenshot of a tank gauge display showing a fuel tank’s level appears in Figure 264 below.
Page 240: Switch/Breaker Display
DSM570 User’s Manual Figure 265 – Watermaker Status Display 7.26 Switch/Breaker Display The DSM570 is capable of controlling loads controlled by a Maretron DCR100 DC Relay, a Carling ® OctoPlex AC Box or DC Box, or other NMEA 2000 load controller which uses NMEA Command of the 127501 Binary Switch Bank Status PGN for control.
Page 241: Figure 267 - Selection Of An Individual Switch/Breaker
The maximum number of switches/breakers you can have on a single screen is 16 (the “4 Quarters” format, with all four windows set to use the “4 rows” or “2 rows, 2 columns” switch/breaker configurations. In order to configure the individual switch/breaker controls, press the “Enter” key with the selected type highlighted to display a menu with entries for each switch/breaker in the window being configured, as shown in Figure 267 below.
Page 242 • Restore Factory Defaults – This restores the switch/breaker to factory default settings. In order to control a switch/breaker using the DSM570, create a screen with a switch/breaker which has been configured to refer to the switch bank instance and indicator number of the switch/breaker you want to control.
Page 243: Figure 269 - Favorite Screen Showing Highlighted Switch/Breaker
Figure 269 – Favorite Screen Showing Highlighted Switch/Breaker Revision 1.8.3 Page 227...
Page 244: Alerts
An Alert Monitor, the DSM570 monitors the bus for Alert messages from Alert Sources, and displays the remote Alert information on the DSM570’s screen. Operators may accept or cancel the remote Alerts from the buttons on the front of the DSM570, in which case an Alert Command Message is sent back to the Alert Source.
Page 245: Accepting Or Cancelling An Alert
Figure 271 – Alert Status Screen 8.2 Accepting or Cancelling an Alert Active Alerts may be accepted (4.3.2) by the operator to indicate that the operator has taken responsibility for the Alert. Alerts that have been triggered and the cause removed without being accepted by a user must be cleared.
Page 246: Adding An Alert
DSM570 User’s Manual Figure 273 – The Alert Detail Screen Pressing the Enter button at this point will Accept or Cancel the Alert. 8.3 Adding an Alert Alerts are created by selecting the parameter to be monitored (e.g. Depth), and then selecting the type of Alert (e.g.
Page 247: Enable/Disable Control
Figure 275 – Part of the Alert Edit Screen This allows the entry of all the alert parameters, which can vary depending on the type of alert chosen. These parameters are: 8.3.1 Enable/Disable Control This allows individual alerts to be enabled or disabled. The decision to disable an Alert must be made very carefully, as it nullifies the purpose for having alerts.
Page 248: Trigger Source
The desired option is selected using the Scroll Up and Scroll Down buttons. 8.3.5 Description This is a textual field that will be displayed on the DSM570 and transmitted to Alert Slave devices. It is intended to describe the alert (e.g. Fire).
Page 249: Figure 276 - High Alert Parameters
Figure 276 – High Alert Parameters A high alert is triggered (i.e. becomes an active alert) once an input signal has risen above the High Alert Set Point and the Set Delay time has elapsed. If the Set Delay is set to zero, then the alert is immediately triggered once the input signal rises above the High Alert Set Point.
Page 250: Figure 277 - Trigger Configuration - High Alert
DSM570 User’s Manual Figure 277 – Trigger Configuration – High Alert Re-trigger Period – When you accept an alert, it will change to the “Accepted” state, and annunciators that are sounding for that alert will stop sounding. If the condition which caused the alert remains true after the amount of time in this field, the alert will return to the “Active”...
Page 251: Figure 278 - Low Alert Parameters
Figure 278 – Low Alert Parameters A low alert is triggered (i.e. becomes an active alert) once an input signal has dropped below the Low Alert Set Point and the Set Delay time has elapsed. If the Set Delay is set to zero, then the alert is immediately triggered once the input signal drops below the Low Alert Set Point.
Page 252: Figure 279 - Trigger Configuration - Low Alert
DSM570 User’s Manual Figure 279 – Trigger Configuration – Low Alert Re-trigger Period – When you accept an alert, it will change to the “Accepted” state, and annunciators that are sounding for that alert will stop sounding. If the condition which caused the alert remains true after the amount of time in this field, the alert will return to the “Active”...
Page 253: Figure 280 - Trigger Configuration - Data Unavailable Alert
Figure 280 – Trigger Configuration – Data Unavailable Alert Re-trigger Period – When you accept an alert, it will change to the “Accepted” state, and annunciators that are sounding for that alert will stop sounding. If the condition which caused the alert remains true after the amount of time in this field, the alert will return to the “Active”...
Page 254: Figure 281 - Trigger Configuration - On Alert
DSM570 User’s Manual 8.3.7.4.1 Trigger Configuration Figure 281 – Trigger Configuration – On Alert Re-trigger Period – When you accept an alert, it will change to the “Accepted” state, and annunciators that are sounding for that alert will stop sounding. If the condition which caused the alert remains true after the amount of time in this field, the alert will return to the “Active”...
Page 255: Figure 282 - Trigger Configuration - Off Alert
8.3.7.5.1 Trigger Configuration Figure 282 – Trigger Configuration – Off Alert Re-trigger Period – When you accept an alert, it will change to the “Accepted” state, and annunciators that are sounding for that alert will stop sounding. If the condition which caused the alert remains true after the amount of time in this field, the alert will return to the “Active”...
Page 256: Figure 283 - Trigger Configuration Editor - Tripped Alert
DSM570 User’s Manual Figure 283 – Trigger Configuration Editor – Tripped Alert Re-trigger Period – When you accept an alert, it will change to the “Accepted” state, and annunciators that are sounding for that alert will stop sounding. If the condition which caused the alert remains true after the amount of time in this field, the alert will return to the “Active”...
Page 257: Figure 284 - Outside Alert Parameters
Figure 284 – Outside Alert Parameters 8.3.7.7.2 Trigger Configuration – Outside Radius Alert Figure 285 – Trigger Configuration – Outside Radius Alert Re-trigger Period – When you accept an alert, it will change to the “Accepted” state, and annunciators that are sounding for that alert will stop sounding. If the condition which caused the alert remains true after the amount of time in this field, the alert will return to the “Active”...
Page 258: Figure 286 - Trigger Configuration - Inside Radius Alert
DSM570 User’s Manual Alert Clear Delay – The distance between the current GPS position and the reference position must fall below the Outside Radius Alert Clear value for longer than the time in this field in order for an alert to become inactive.
Page 259 Alert Clear Delay – The distance between the current GPS position and the reference position must rise above the Inside Radius Alert Clear value for longer than the time in this field in order for an alert to become inactive. Latitude –...
Page 260: Figure 287 - Trigger Configuration - Gps Quality Alert
DSM570 User’s Manual Trigger Configuration – GPS Quality Alert 8.3.7.10.1 Figure 287 – Trigger Configuration – GPS Quality Alert Re-trigger Period – When you accept an alert, it will change to the “Accepted” state, and annunciators that are sounding for that alert will stop sounding. If the condition which caused the alert remains true after the amount of time in this field, the alert will return to the “Active”...
Page 261: Figure 288 - Direction Alert Parameters
Figure 288 – Direction Alert Parameters Trigger Configuration – Direction Alert 8.3.7.11.1 Figure 289 – Trigger Configuration – Direction Alert Re-trigger Period – When you accept an alert, it will change to the “Accepted” state, and annunciators that are sounding for that alert will stop sounding. If the condition which caused the alert remains true after the amount of time in this field, the alert will return to the “Active”...
Page 262: Local Audible
Alarm would become active again at 9:00, 10:00, and so on. 8.3.8 Local Audible If the Local Audible field is set to Enabled, the speaker internal to the DSM570 will be activated when this Alert is triggered. Page 246...
Page 263: Tone
8.3.9 Tone If Local Audible is enabled, the tone that is sounded on the DSM570 and the Remote Annunciators can be set here. This allows the user to configure the Alerts so that the alert can be identified from the tone.
Page 264: Sms (Text) Settings
DSM570 User’s Manual The desired option is selected using the Scroll Up and Scroll Down buttons, and then pressing the Enter button again. The tone of the Annunciator will be the same as that set in 8.3.9. SMS (Text) Settings…...
Page 265: Operating Mode Moored
8.3.15 Scope Alerts may be constrained to be displayed only on the DSM570 where they are detected. In this case the Alert message is not sent out on the NMEA2000 bus, and other devices will not display the alert, or allow Accepting of Cancelling. The Scope does not affect the generation of Annunciator messages.
Page 266: Deleting An Alert
From the Alert Setup Menu, select the menu item Delete Alert… . Figure 294 – Deleting an Alert This brings up the list of Alerts managed by the DSM570. Figure 295 – Deleting Alert List Scroll up and down using the Scroll Up and Scroll Down buttons until the alert that must be deleted is highlighted and press the Enter button.
Page 267: Editing An Alert
A confirmation message is displayed. Figure 296 – Deleting an Alert: Confirmation Press the Accept button to delete the Alert or the Cancel button to return to the previous screen without deleting the Alert. 8.5 Editing an Alert From the Alert Setup Menu, select the menu item Edit Alert… . Figure 297 –...
Page 268: Setting The Vessel Operating Mode
8.6 Setting the Vessel Operating Mode The Vessel Operating Mode must be set on each DSM570. This is a potentially risky operation, in that Alerts that are Active in the existing mode may be ignored in the new Operating Mode. The DSM570 will warn the operator about these Alerts to minimize the risk.
Page 269: Sms (Text) Phone Book
8.7 SMS (Text) Phone Book The display is able to transmit SMS (text) messages via a Maretron SMS100 SMS (Text) Module in the event of an alert. This menu allows you to program up to eight different phone numbers to which the display will send alert messages.
Page 270: Figure 300 - Editing The Sms (Text) Phone Book
DSM570 User’s Manual Figure 300 – Editing the SMS (Text) Phone Book Once you have pressed “Enter”, the screen will change to display the SMS (Text) Phone Book, as shown in the figure below: Figure 301 – SMS (Text) Phone Book Screen To edit a number in the phone book, press Scroll Up and Scroll Down until the desired entry is highlighted, and then press Enter.
Page 271: Figure 302 - Phone Number Editing
Figure 302 – Phone Number Editing See Section 3.3.4 for details on editing the phone number. Starting the phone number with the international “+” prefix will allow the number to work regardless of what country the phone’s SIM card phone number is registered in. After you have edited the phone number and saved it by pressing Enter a second time after the last digit is entered, you will then be given the chance to edit the name for the phone number as shown in Figure 303 below.
Page 272: Advanced Configuration
DSM570 User’s Manual Figure 304 – SMS Phone Book Test Message Popup Press “Yes” to send a test message, or press “No” to skip sending the test message. You will be returned to the “SMS (Text) Phone Book…” screen. Once you have created all of the phone book entries you need, press the “Back” key to exit the “SMS (Text) Phone Book…”...
Page 273: Remote Alert Audible
• Disable 8.8.2 Flashing Screen As an extra means to gain the operator’s attention to an Active Alert, the DSM570 may be set up to flash the entire screen between Red (for Alarms) or Yellow (for Warnings) and Black. The flashing may be disabled by setting this option to Disable.
Page 274: Maintenance
• Clean the unit with a soft cloth. Do not use chemical cleaners as they may remove paint or markings or may corrode the DSM570 enclosure or seals. Do not use any cleaners containing acetone, as they will deteriorate the plastic enclosure.
Page 275: Troubleshooting
DSM570 will expose the sensitive electronic components to adverse environmental conditions that may render the unit inoperative. Please do not open the DSM570, as this will automatically void the warranty. If service is required, please return the unit to an authorized Maretron service location.
Page 276: Technical Specifications
DSM570 User’s Manual 11 Technical Specifications Specifications Parameter Value Comment ® NMEA 2000 DeviceNet Micro-C Connector Display Technology Active Matrix TFT LCD Sunlight Readable Display Resolution 640 x 480 Pixels VGA Resolution 5.7” Diagonal Display Viewable Area 115.2mm W x 86.4mm H...
Page 277 Fuel Management Distance to Empty, Time to Empty, Total Fuel Capacity, Total Fuel Level, Total Fuel Consumption, Total Trip Fuel Used, Total Fuel Economy, Total Fuel Rate, Total Fuel Remaining COG, Lat/Lon, SOG, DOP, Satellites, Time, Accuracy Heading Heading, Rate of Turn, Variation Humidity Inside, Outside, User Defined Indicator...
Page 278 DSM570 User’s Manual 65001 Bus #1 Phase C Basic AC Quantities 65002 Bus #1 Phase B Basic AC Quantities 65003 Bus #1 Phase A Basic AC Quantities 65004 Bus #1 Average Basic AC Quantities 65005 Util. Total AC Energy 65006 Util.
Page 279 Alert Text (Maretron) 130822 Alert Control (Maretron) 130823 Temperature, High Range (Maretron) 130824 Annunciator (Maretron) 130825 Data Instance/Chan Correlation (Maretron) N/A 130826 Switch Indicator Status (Maretron) 130828 Dometic HVAC Status (Maretron) 130829 Dometic Icemaker Status (Maretron) 130833 Vessel Data Recorder Status (Maretron)
Page 280 DSM570 User’s Manual 130837 Switch Status Timer (Maretron) 130840 Generic Sensor (Maretron) Electrical Parameter Value Comment Operating Voltage 9 V to 30 V DC Voltage Power Consumption (Maximum) 450mA ® Load Equivalence Number (LEN) NMEA 2000 Spec. (1LEN = 50 mA)
Page 281: Technical Support
12 Technical Support If you require technical support for Maretron products, you can reach us in any of the following ways: Telephone: 1-866-550-9100 Fax: 1-602-861-1777 E-mail: support@maretron.com World Wide Web: http://www.maretron.com Mail: Carling Technologies, Inc. Attn: Maretron Technical Support 120 Intracoastal Pointe Dr. Suite 100 Jupiter, FL 33477 USA Revision 1.8.3...
Page 282: Installation Template
DSM570 User’s Manual 13 Installation Template Please check the dimensions before using the following diagram as a template for drilling the mounting holes because the printing process may have distorted the template. 5.59” 5.12” 6.16” Figure 307 – Flush Mounting Template Page 266 Revision 1.8.3...
Page 283: Maretron (2 Year) Limited Warranty
Warranty Return Procedure: To apply for warranty claims, contact Carling Technologies or one of its Maretron dealers to describe the problem and determine the appropriate course of action. If a return is necessary, place the product in its original packaging together with proof of purchase and complete a Return Merchandise Authorization (RMA) on the following web page: https://www.maretron.com/rma_request.php...

Maretron DSM570 User Manual

1 General

2 Installation

3 Operating the DSM570

4 Important Concepts

5 Operating Modes

6 Device Configuration

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Maretron DSM570

Summary of Contents for Maretron DSM570
