LED Status

After the Gateway is powered on by plugging in either an Ethernet Cable with PoE or a SMPS Power
Adapter (with an Ethernet Cable), LED status lights will turn on or blink depending on the current state.
1
Network
2
2.4GHz SIL
3
2.4GHz TML
4 Not used
5 Not used
REV 1.6
1) 2) 3) 4) 5)

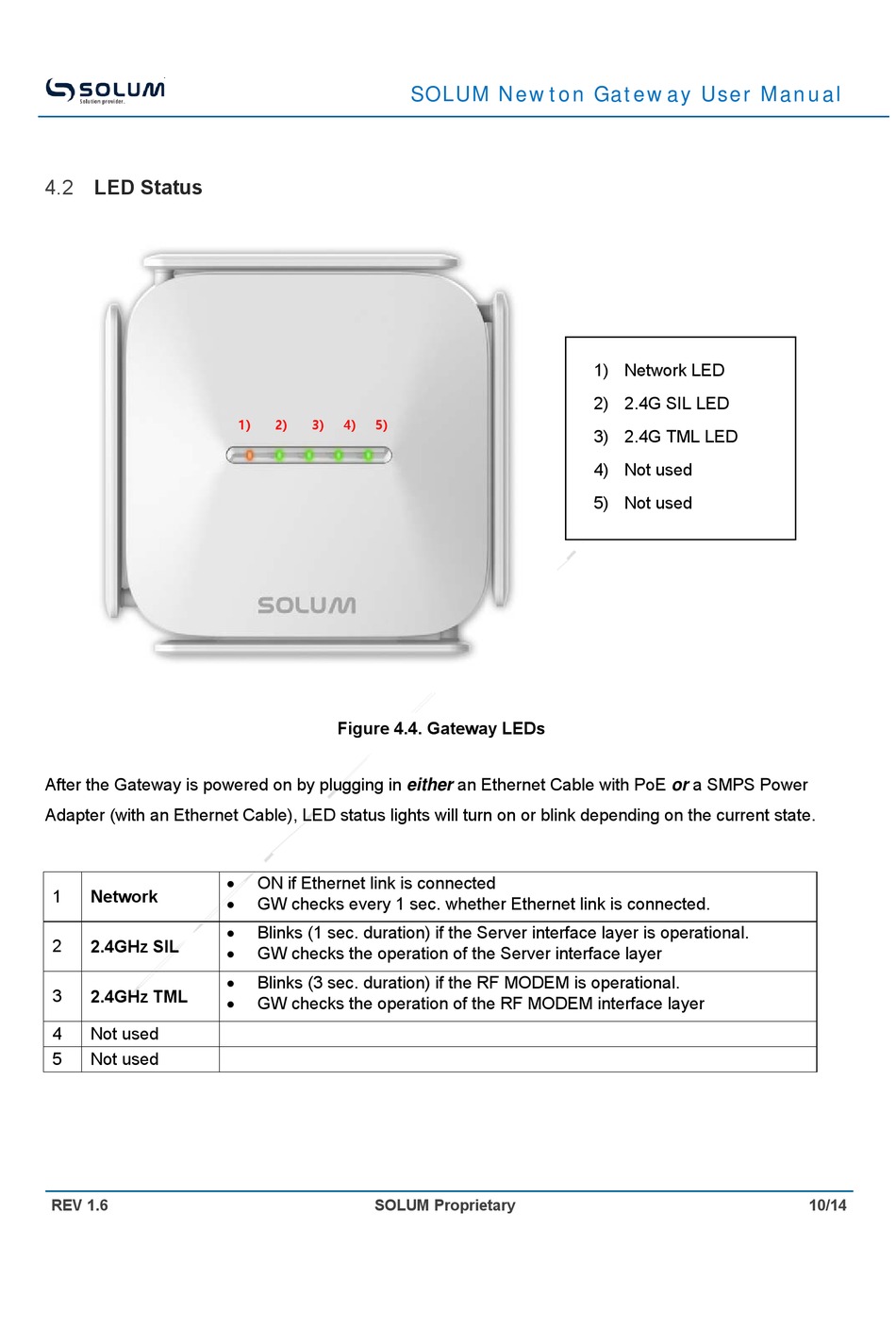

Figure 4.4. Gateway LEDs
ON if Ethernet link is connected

GW checks every 1 sec. whether Ethernet link is connected.

 Blinks (1 sec. duration) if the Server interface layer is operational.
 GW checks the operation of the Server interface layer
 Blinks (3 sec. duration) if the RF MODEM is operational.
 GW checks the operation of the RF MODEM interface layer
SOLUM Proprietary
SOLUM Newton Gateway User Manual
1) Network LED
2) 2.4G SIL LED
3) 2.4G TML LED
4) Not used
5) Not used
