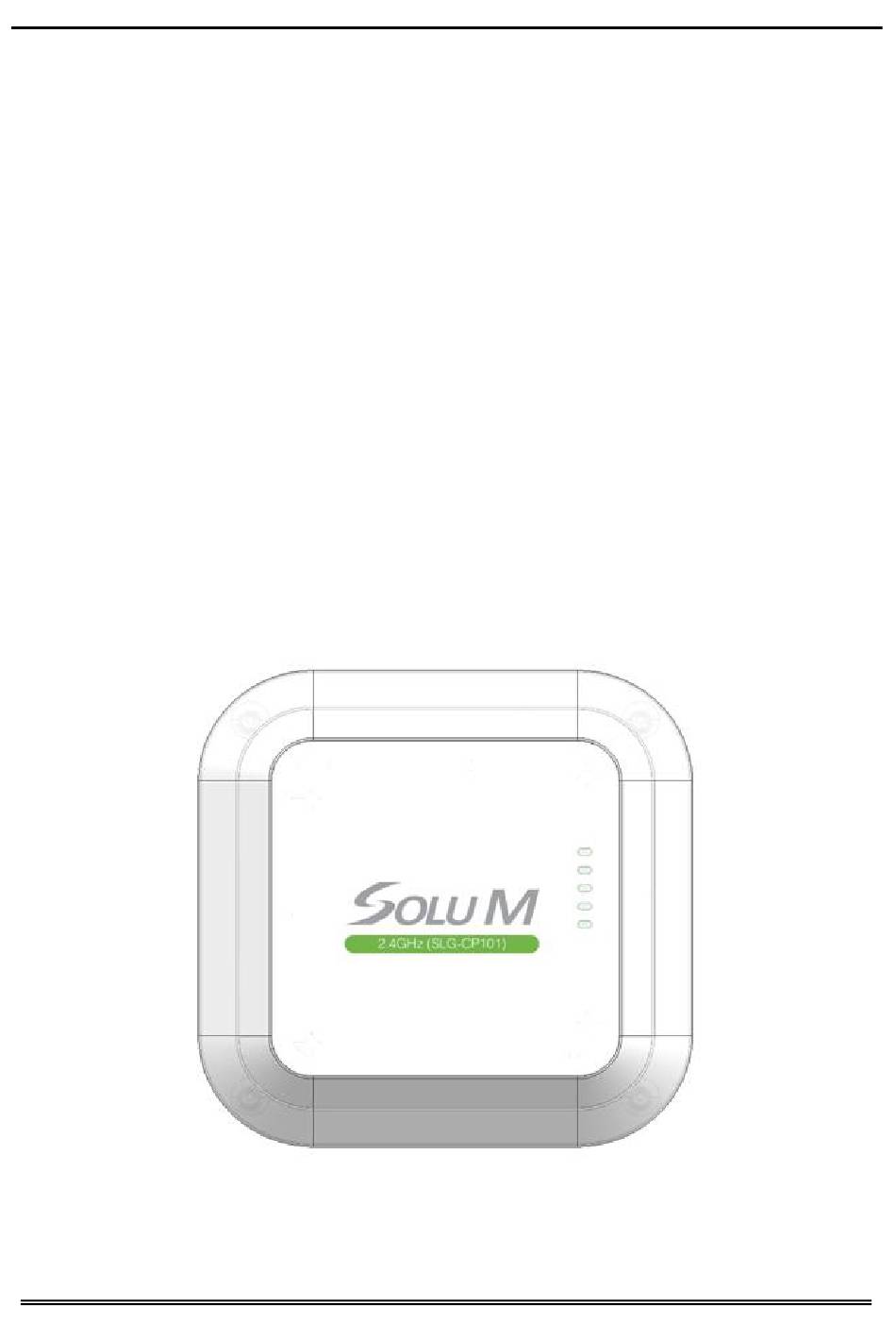

- Page 1 Solu-M ESL Gateway User Manual (SLG-CP101)
- Page 2 The content of this document is subject to change without prior notice. The content of this document is intellectual property of Solum Co., Ltd. This document may not be reproduced or published without prior consent from Solum Co., Ltd. No part may be reproduced except as authorized by written permission.
- Page 3 Revision History Rev. Date Remark 03.15.2017 First Edition.
-
Page 4: Table Of Contents
Contents 1. Precautions ..........................5 2. Overview ........................... 6 3. Product Specifications ...................... 7 3.1 General Specifications ..............7 3.1.1 Gateway 3.2 RF Specifications ................8 3.2.1 Gateway 4. Product Description ......................9 4.1 Exteior ....................9 4.1.1 Gateway 5. Product Installation ...................... -
Page 5: Precautions
1. Precautions “This RF device operates on the 2.4GHz frequency band and can produce radio interference. The device, therefore, may not be used for applications where safety of human lives is concerned.” 1) Usage Environment Take extra caution when using this RF device in the vicinity of other electronic devices and appliances. -
Page 6: Overview
2. Overview Gateway make up a system the electronically displays price and other product information that are traditionally shown printed or written on paper in places like the supermarket. Here, ESL(Electronic Shelf Label) Gateway receives product price updates from the server and uploads the new data to the applicable electronic shelf label tags (ESL-Tag), changing the displayed price information. -
Page 7: Product Specifications
3. Product Specifications 3.1 General Specifications 3.1.1. Gateway General Ethernet (10/100/1000Mbps) Communication Zigbee RF(based on IEEE 802.15.4) Dimension (W*H*D) 215 * 215 * 44 (mm) Weight (g) 1,385g Enclosure Plastic (ABS) Power DC Adaptor(5V,2A) or PoE (Power over Ethernet(IEEE802.3af)) Caution : DC Power Supply or PoE(Power over Ethernet) using one... -
Page 8: Rf Specifications
3. 2 RF Specifications 3.2.1 Gateway Category Specification Note Antenna Type Internal Antenna Transmit Frequency 2405MHz ~ 2480MHz Receive Frequency 2405MHz ~ 2480MHz Antenna gain 3.9 dBi Modulation O-QPSK Channels 16ch Operating 0℃ to +40℃ Temperature █ DC Adapter (5V, 2A) █... -
Page 9: Product Description

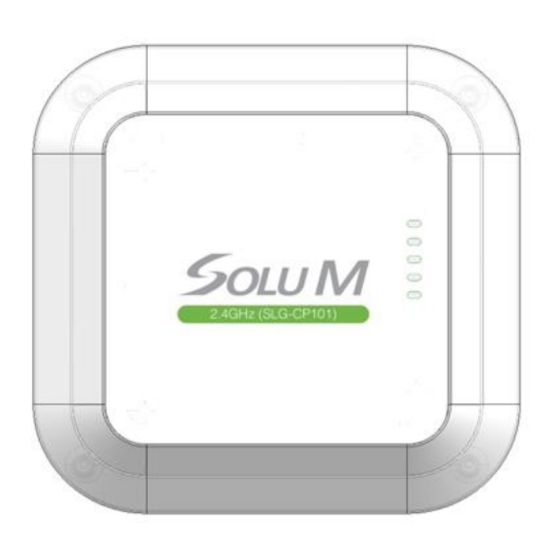

4. Product Description 4-1 Exterior 4.1.1 Gateway Status LED <top> <bottom >... -
Page 10: Product Installation
5. Product Installation 5-1 Gateway - Components (includes installation accessories – adapter, bracket, screws) Installation Mounting Plate Drilling hole Plate for ADT,LAN cable Gypsum board Attach Bracket#2 Bracket#2 Sliding Gateway Screw (4ea) Screw a) Drill 4 holes on the wall or ceiling to align with mounting Plates (1). Refer to the attached diagram. - Page 11 Operation Check Wakeup DATA Ethernet POWER < Connect Ethernet Cable with PoE or Connect SMPS adapter and Ethernet cable first . > 1) Power : Always ON after connecting to Ethernet Cable with PoE or SMPS adapter 2) Ethernet : ON if Ethernet link is connected - Check every 1sec whether Ethernet link is connected.
- Page 12 Installation a) Map product information and tag IDs. Each tag has a unique 1) MAC Address that serves as the tag’s ID. Map 1) MAC Addresses of the tags and 2) barcodes of the products. Using a PDA featuring Win CE 5.0 or higher as the operating system and a barcode scanner, scan the tag’s 1) MAC Address and then the product’s barcode to map.
- Page 13 (4) Server c) Attach a back rail to the shelf (secure using double-sided tape or screws). d) Attach end and middle caps to the middle rail. e) Take a tag that has been mapped from step a) and insert to the middle rail from step d). Here, make sure to align the tag and the rail grooves properly.
- Page 14 WARNING : This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.
