SOLUM Newton Gateway User Manual
SLG-EN102S
SOLUM E-Label Platform
REV 1.6
SOLUM
06-11-2021
SUMMARY
This documentation is intended as a guide for the usage and installation of SOLUM Newton Gateway.
REV 1.6
SOLUM Newton Gateway User Manual
© 2021 SOLUM. All rights reserved
The names of actual companies and products mentioned herein
may be the trademarks of their respective owners.
No part of this document may be reproduced, stored in a retrieval
system, or transmitted in any form or by any means without the
express written consent of SOLUM.
This document is subject to change without notice.
SOLUM Proprietary
1/14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SLG-EN102S and is the answer not in the manual?

Questions and answers

Related Manuals for SoluM SLG-EN102S

Summary of Contents for SoluM SLG-EN102S

  • Page 1 SOLUM 06-11-2021 SUMMARY This documentation is intended as a guide for the usage and installation of SOLUM Newton Gateway. © 2021 SOLUM. All rights reserved The names of actual companies and products mentioned herein may be the trademarks of their respective owners.
  • Page 2 SoluM and the SoluM logo are trademarks or registered trademarks of SoluM and/or its affiliates in the KOREA. and other countries Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between SoluM and any other company.

  • Page 3: Table Of Contents

    SOLUM Newton Gateway User Manual TABLE OF CONTENTS PREFACE ......................... 5 ........................... 5 BOUT UIDE ............................5 UDIENCE ....................... 5 BBREVIATIONS AND CRONYMS OVERVIEW ....................... 6 SPECIFICATIONS ....................7 ........................ 7 ENERAL PECIFICATIONS ....................7 ADIO REQUENCY PECIFICATIONS ........................8...
  • Page 4 SOLUM Newton Gateway User Manual DOCUMENT HISTORY Date Revision History Page Feb 21, 2020 Draft Feb 27, 2020 First Edition Added package weight Feb 28, 2020 Installation steps modified LED definition updated Jan 28, 2021 Adaptor Power source Mar 17, 2021...

  • Page 5: Preface

    SOLUM Newton Gateway User Manual Preface About This Guide This documentation contains detailed information on SOLUM Newton Gateway. Information includes specifications, drawings, installation guides, among other items. Audience This manual is intended for any user (store managers, associates, installers, etc.) properly authorized to operate and install company equipment.

  • Page 6: Overview

    SOLUM Newton Gateway User Manual Overview The SOLUM Newton Gateway is a crucial centerpiece in the overall ESL System that electronically displays price and other product information, which are traditionally printed or written on paper in places like the supermarket.

  • Page 7: Specifications

    SOLUM Newton Gateway User Manual Specifications General Specifications GENERAL SPECIFICATIONS Ethernet (10/100/1000Mbps) Communication Wireless (2.4GHz ISM Band) 9.566 x 9.566 x 1.811 (in) Dimension 243 x 243 x 46 (mm) (Width x Height x Depth) Product Only: 1.433lbs // 650g Weight With Packaging: 2.513lbs // 1,140g...

  • Page 8: Power Specifications

    SOLUM Newton Gateway User Manual Power Specifications POWER SPECIFICATIONS Power over Ethernet (PoE), IEEE802.3af Input Voltage Range: 36~57VDC Nominal Input Voltage: 48VDC Input Power DC Input (AUX) Input Voltage Range: 5~12VDC Input Power: 10W Use either DC Power Supply or PoE (Power over Ethernet).

  • Page 9: Description

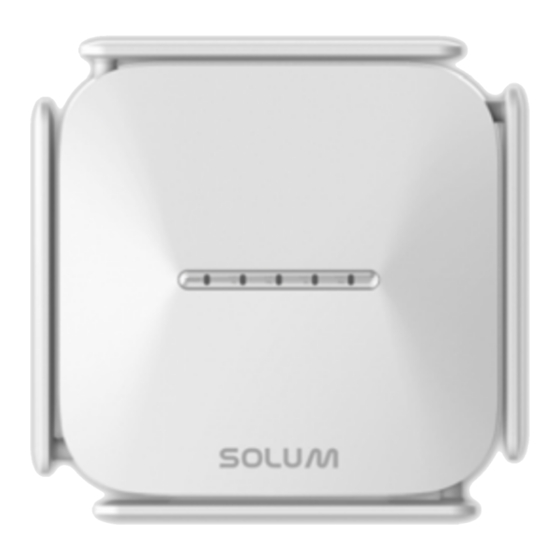

    SOLUM Newton Gateway User Manual Description Gateway Exterior Status LEDs Figure 4.1. Top Figure 4.2. Bottom Figure 4.3. Top and Sides REV 1.6 SOLUM Proprietary 9/14...

  • Page 10: Led Status

    SOLUM Newton Gateway User Manual LED Status 1) Network LED 2) 2.4G SIL LED 3) 2.4G TML LED 4) Not used 5) Not used Figure 4.4. Gateway LEDs After the Gateway is powered on by plugging in either an Ethernet Cable with PoE or a SMPS Power Adapter (with an Ethernet Cable), LED status lights will turn on or blink depending on the current state.

  • Page 11: Installation

    SOLUM Newton Gateway User Manual Installation Bracket Installation Components: includes a) Plate (210*79*3mm) installation accessories – plate, bracket, screws 1) Drill 4 holes(Ф0.14” (3.5mm)) on the wall or ceiling to align with the Plate (a). 2) Drill a Ф1” (25mm) hole or bigger in the b) Gypsum wall or ceiling for the Ethernet Cable.

  • Page 12: Ceiling Mount

    SOLUM Newton Gateway User Manual Ceiling Mount Distance Recommended Distance Remarks from floor 11.5ft (3.5m) from top of shelf/gondola > 5ft (1.5m) max height from floor from wall > 33ft (10m) from WIFI AP > 13ft (4m) Image displays optimal antenna positioning.

  • Page 13: Pole Mount

    SOLUM Newton Gateway User Manual WARNING : This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

  • Page 14: Precautions

    SOLUM Newton Gateway User Manual Precautions This RF device operates on the 2.4GHz frequency band and can produce radio interference. The device, therefore, may not be used for applications where safety of human lives is concerned. Usage Environment Take extra caution when using this RF device in the vicinity of other electronic devices and appliances.
