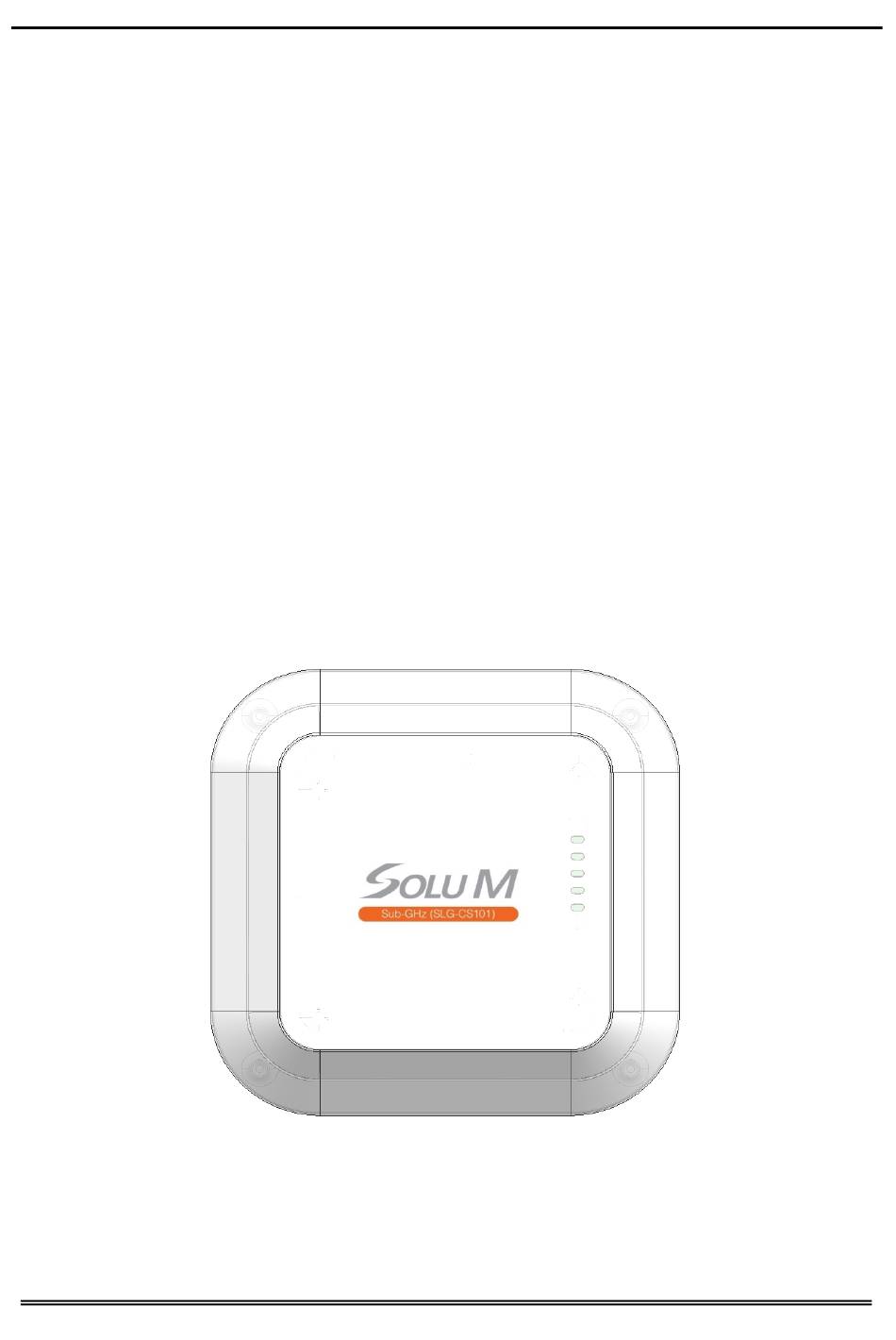

  • Page 1 SoluM ESL Gateway User Manual (SLG-CS101)
  • Page 2 The content of this document is subject to change without prior notice. The content of this document is intellectual property of Solum Co., Ltd.. This document may not be reproduced or published without prior consent from Solum Co., Ltd. No part may be reproduced except as authorized by written permission.
  • Page 3 Revision History Rev. Date Remark 1.11.2017 First Edition.

  • Page 4: Table Of Contents

    Contents 1. Precautions ..........................5 2. Overview ........................... 6 3. Product Specifications ...................... 7 3.1 General Specifications ..............7 3.1.1 Gatew 3.2 RF Specifications ................8 3.2.1 Gatew ay 4. Product Description ......................9 4.1 Exteior ....................9 4.1.1 Gatew ay 5.

  • Page 5: Precautions

    1. Precautions “This RF device operates on the 902-928MHz frequency band and c an produce radio interference. The device, ther efore, may not be used for applications w here safety of human lives is concerned.” 1) Usage Environment Take extra caution when using this RF device in the vicinity of other electronic devices and appliances.

  • Page 6: Overview

    2. Overview Gateway make up a system the electronically displays price and other product information that are traditionally shown printed or written on paper in places like the supermarket. Here, ESL Gateway receives product price updates from the server and uploads the new data to the applicable electronic tags (ESL Tag), changing the displayed price information.

  • Page 7: Product Specifications

    3. Product Specifications 3.1 General Specifications 3.1.1. Gateway General Ethernet (10/100/1000Mbps) Communication RF(based on IEEE 802.15.4) Dimension (W*H*D) 215 * 215 * 44 (mm) Weight (g) 1,385g Enclosure Plastic (ABS) Power DC (5V,2A) or PoE (Power over Ethernet(IEEE802.3af)) Caution : DC Power Supply or PoE(Power over Ethernet) using one...

  • Page 8: Rf Specifications

    3. 2 RF Specifications 3.2.1 Gateway Category Specification Note Antenna Type Internal Antenna Transmit Frequency ~ MHz Receive Frequency ~ MHz Antenna Peak gain Modulation 2-GFSK Channels 64ch Operating 0℃ to +40℃. Temperature Power █ DC (5V, 2A) █ PoE (Power over Ethernet (IEEE802.3af)) 1) Input Voltage Range :36~57VDC 2) Nominal Input Voltage : 48VDC 2) Output Voltage : 5VDC ±...

  • Page 9: Product Description

    4. Product Description 4-1 Exterior 4.1.1 Gateway Status LED <top> <bottom >...

  • Page 10: Product Installation

    WARNING : This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.
