Grange ROPE WALK PERGOLA Assembly Instructions

Rope Walk Pergola Inst 8/7/11 10:32

STEP 7

Fix the other two curved
beam assemblies as Step 6.

STEP 8

Fix the Rope Rings (w) in
place as shown in fig.4.

STEP 9

Finally, feed the ropes
through the rings and tie
wrap them in place as
shown in fig.5.
A
ALL PRODUCTS ARE MEASURED TO
THE HIGHEST AND WIDEST POINT
AND ALL SIZES ARE APPROXIMATE.
(fig.5)
B
C

AFTERCARE

To ensure longevity of your structure it is recommended that it is treated with a wood preservative on a yearly basis.
Page 1
Use 4 screws
to fix each
B
(fig.4) Rope Ring
w
x
Use Tie Wraps
(x) to secure
ropes to rings.
w
A
ROPE WALK
z
z
PLAN
1.3 m
TOP VIEW
2.7 m
2.74 m
FRONT VIEW
PERGOLA
Assembly INSTRUCTIONS

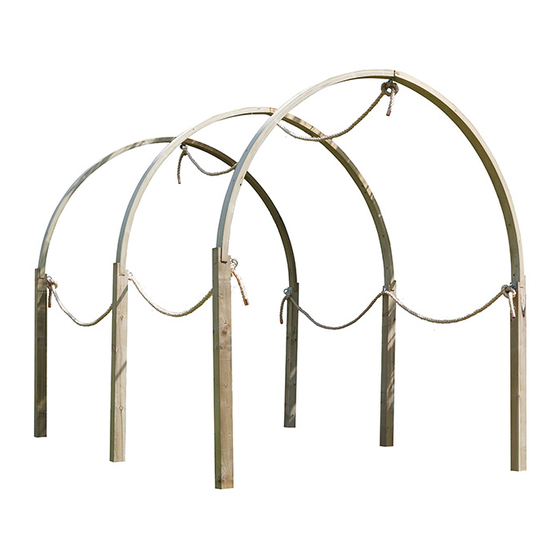

THE PICTURE HERE
SHOWS TWO LINKED
ROPE PERGOLAS
PLUS AN END PACK
ROPE WALK PERGOLA (JFRW3G)
