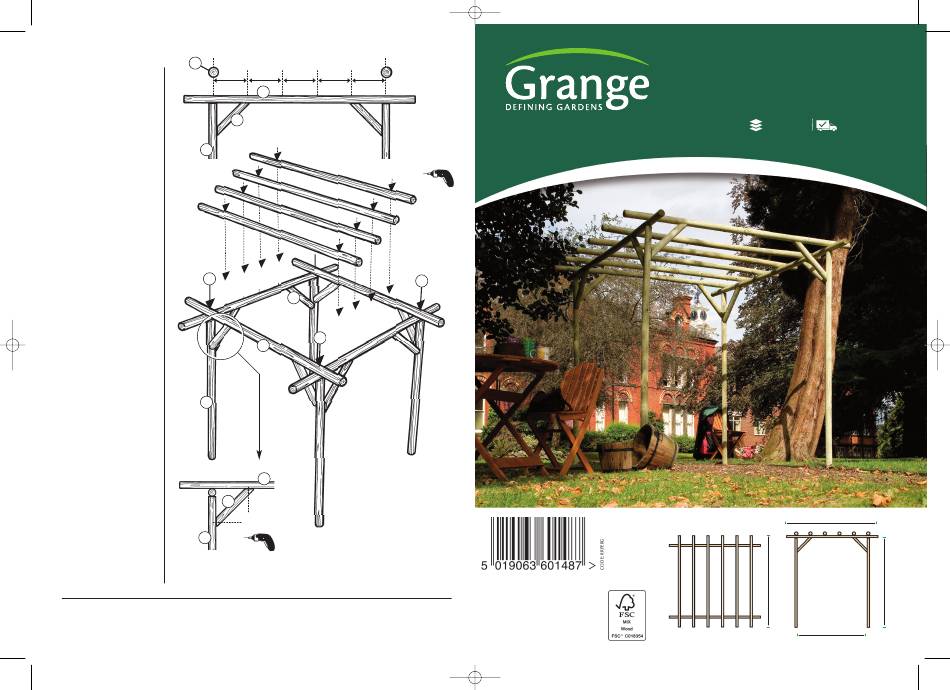

Grange RUSTIC ROSE PERGOLA Quick Start Manual

RRPERG [A5 4page instructions] 19/9/17
1
STEP 9
Drill 6mm clearance holes
through the poles at the
marked points.
STEP 10
On the cross poles of the
assembled sections mark the
position where each of the six
poles will be fixed. Start at the
1
centre point and mark these
points either side at equally
spaced intervals.
STEP 11
Attach one of the poles to a
post assembly at the marked
point nearest to the end of the
pole using screws (x).
STEP 12
Attach another pole to the
other end of the same post
assembly.
x
STEP 13
Attach the free end of the pole
fixed in Step 11 to the free post
assembly.
STEP 14
Attach the free end of the pole
fixed in Step 12 to the other
end of the post assembly.
STEP 15
Attach the remaining five poles
to the cross poles at the points
previously marked.
1
STEP 16
Take the remaining four Corner
Supports (2) and fix to the
post uprights and the end
cross posts with 2 screws (y)
each, as you did with the first
four supports in Step 6. This
will help to brace the structure.
STEP 16
Locate the structure in the
prepared holes. After ensuring
the structure is level and
upright, fill the holes with the
chosen method of fixing.
1
AFTERCARE
To ensure longevity of your structure it is recommended that it is treated with a wood preservative on a yearly basis.
10:35 Page 1
STEP 10-12
= = = = =
1
2
x
x
2
x
1
STEP 13-15
1
2
y
x
©2016 Grange Fencing Ltd
All rights reserved.
In line with the Company's policy of
continuous product development, the
right is reserved to change and improve
product design without prior notice.
All products and related emblems featured
are trademarks of Grange Fencing Ltd.
www.grangefen.co.uk

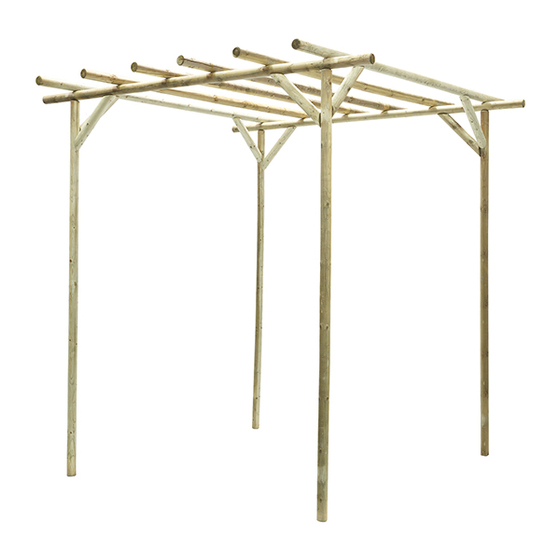

RUSTIC ROSE PERGOLA
RRPERG - 252cm [H] x 240cm [W] x 240cm [D]
Self-Assembly required Home Delivery available
240cm
PLAN
240cm
183cm
240cm
