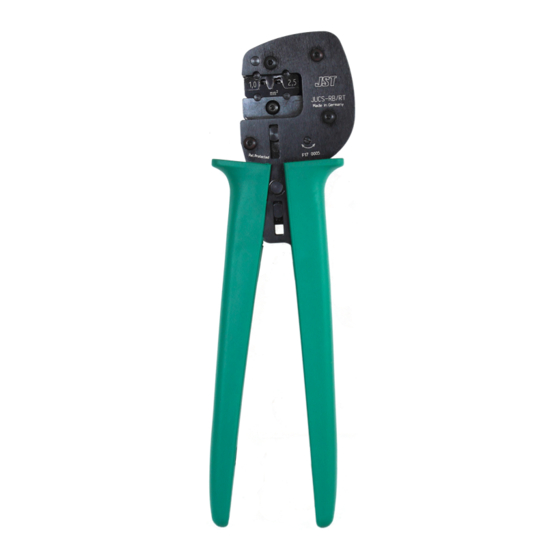

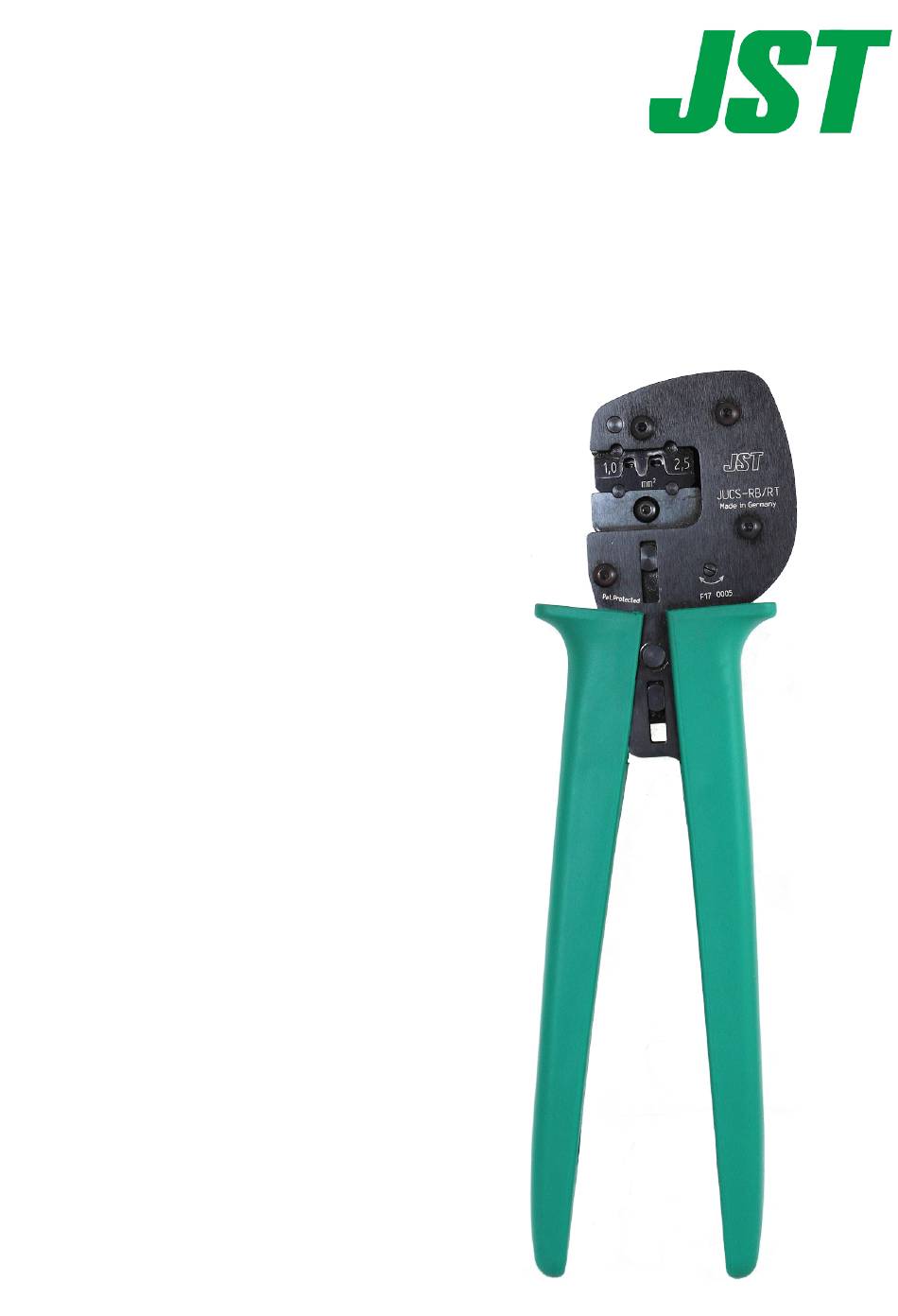

- Page 1 INSTRUCTION MANUAL BEDIENUNGSANLEITUNG Crimp Tool/Crimpwerkzeug CS 30 L - JUCS - RB/RT Application/Anwendungsbereich for processing of JST contacts zur Verarbeitung von JST Kontakten SRB-1.0T-M5-W8 1,0 mm SRB-2.5-M5 2,5 mm 07/2017-Rev. 0...
- Page 2 Pos. 1: 1,0 mm Open the tool. Pos. 2: 2,5 mm Werkzeug öffnen. Press lever of locator down to Insert contact until it is flushed with insert contact. the upper crimpprofile. Attention! Hebel des Positionierers Beware of sharp edges on contact! herunterdrücken, um Kontakt Kontakt einlegen bis er bündig mit einzulegen.
- Page 3 Open the tool and remove crimped contact. Werkzeug öffnen und gecrimpten Kontakt entnehmen. PREMATURE RELEASE/VORZEITIGES ENTRIEGELN In case of incorrect handling the tool can be released prematurely: Das Werkzeug kann bei falscher Handhabung vorzeitig entriegelt werden: Close the tool slightly. Turn the release screw in direction of Werkzeug leicht schließen.
- Page 4 MAINTENANCE The tool has to be kept clean and oiled occasionally. Referring to the results of the life-time simulation we recommend the exchange of the locator after 1000 cycles at the latest. Furthermore we recommend checking the tool regularly by measuring the dimensions indicated in the specifications of the crimp terminal.
