Mounting

9 Mounting
9.1

Technical details

12
Vanderbilt International (IRL) Ltd.
NOTE 1
Do not mount two CD30 units back to back on one door. They cannot both control the latch.

CD30 is suitable for most doors with handle-operated mortise locks.

The distance between the centre of the handle and the centre of the cylinder
should be between 105 – 116 mm.

Latchbolt function.

The handle must have an 8 mm square spindle.

The handle's fixing holes should be at 30 – 38 mm centres (diagonal).

The CD30 can be used with a variety of locks such as ASSA 8561 or 565 – but
not the ASSA 410 series.

The backset should be 70 mm.
Backset = 70 mm

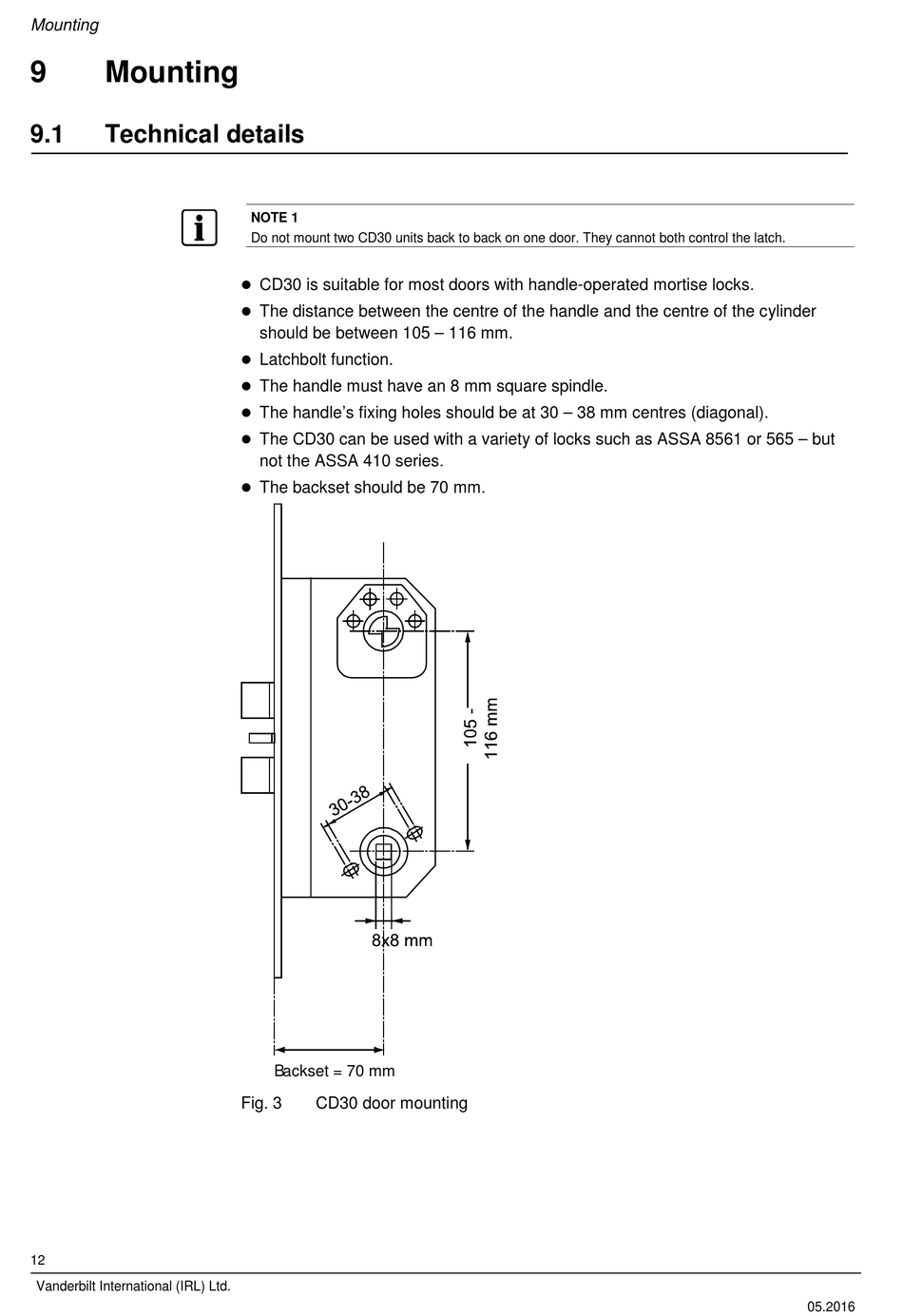

Fig. 3 CD30 door mounting
