Summary of Contents for Vanderbilt Codelock V42

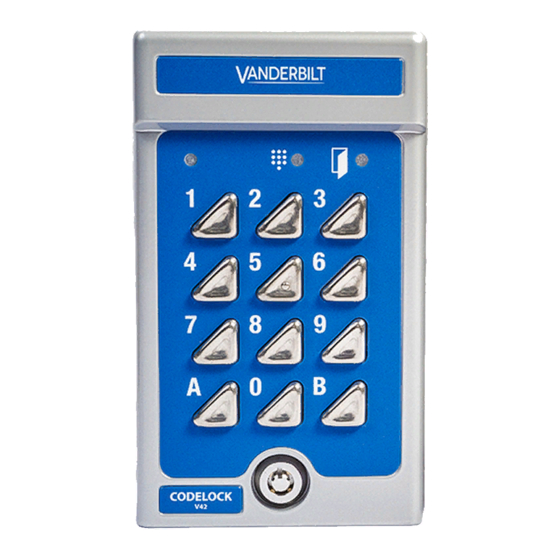

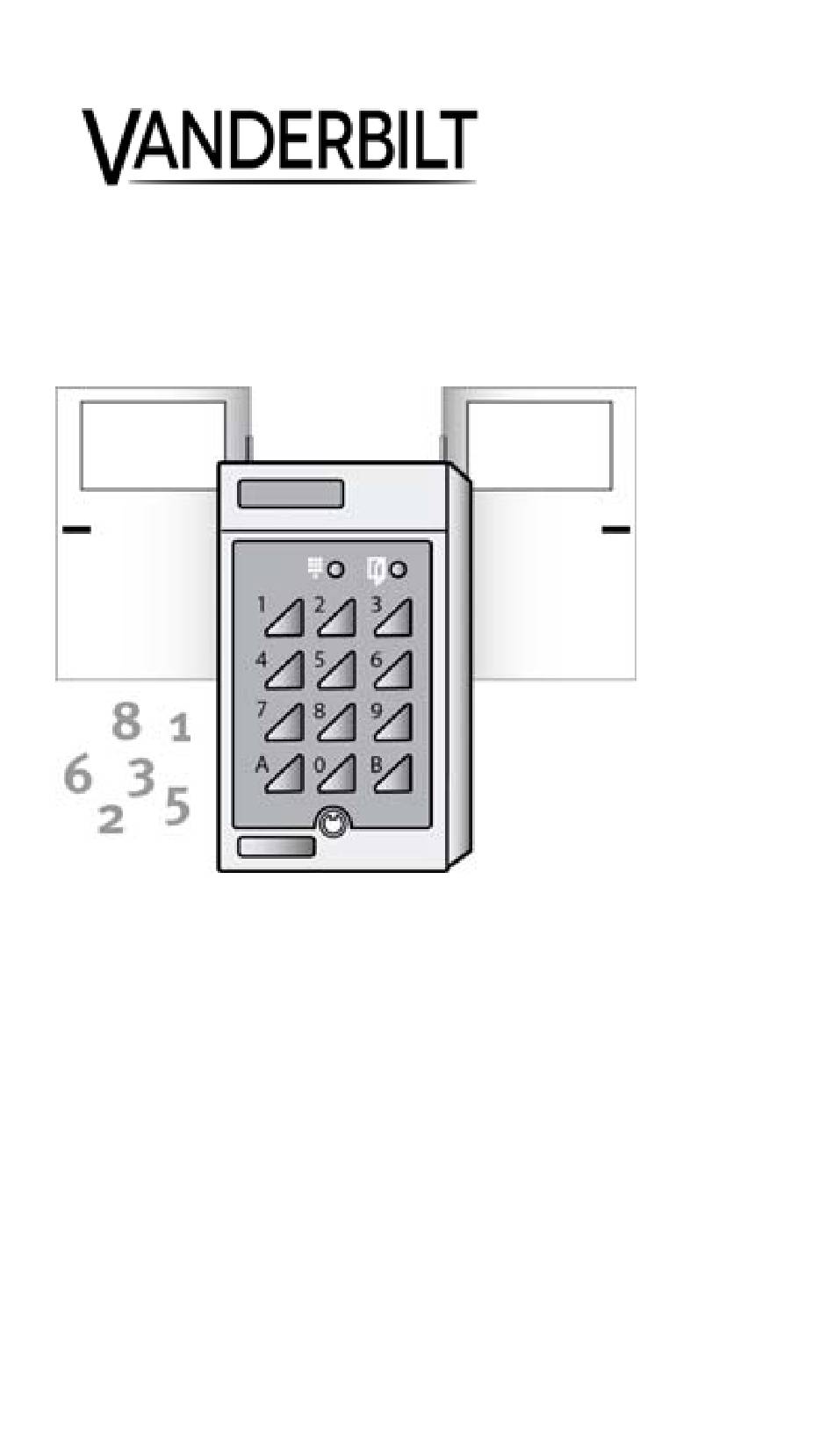

- Page 1 Codelock V42 Technical Manual Vanderbilt International...
- Page 2 V42 Installation CODE 1 CODE 2 12-24 V IN LOCK EXIT...
- Page 3 English Separate the front part from the back plate by using the key like a screwdriver and turn it counter-clockwise 4-5 times. Close the housing by turning clockwise 4-6 times. Setting the codes Move the jumpers next to the digits that should make up codes 1 and 2 respectively.
- Page 4 Relay terminal blocks Max 30m cable. For locks with failsafe (power to lock) function, connect lock to terminal 5, not 3. Technical data 12-24 V AC/DC. Power voltage: 8 mA quiescent. Power consumption: Voltage free relay, max. Relay output: 1A, 28V DC. Cable <...
Need help?
Do you have a question about the Codelock V42 and is the answer not in the manual?
Questions and answers

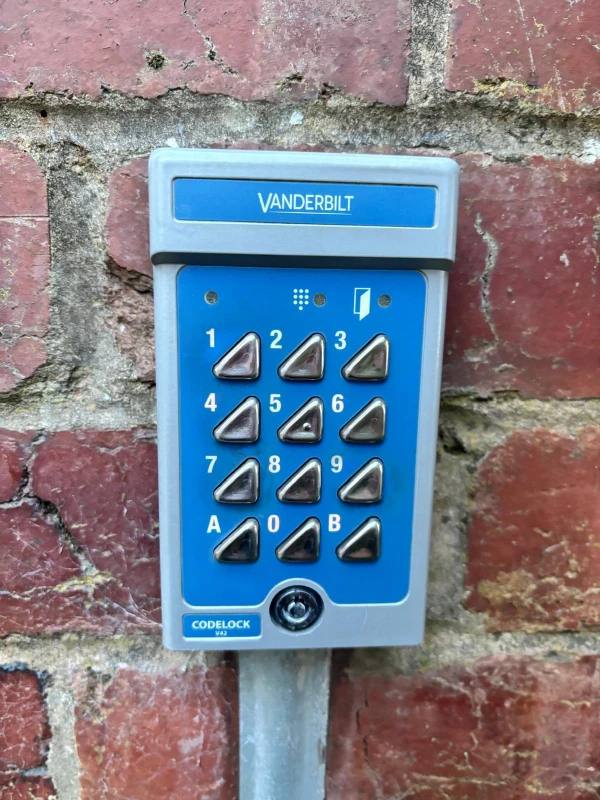

can you get a remote control to open the gate rather than punching in the code ?
Yes, a remote control such as a time switch or push button can be connected between terminals 6 and 9 to open the Vanderbilt Codelock V42 gate without entering the code.
This answer is automatically generated
