Present Administrator Code Is Not Known - Vanderbilt CD30 Codoor Configuration Manual

8.2

Present Administrator code is not known

Vanderbilt International (IRL) Ltd.
NOTE

The Administrator code cannot be the same as the code 112186 to erase the memory.
See section 11 Erase memory.

If you are in administrator mode and don't press a key the device will automatically leave the
administrator mode after 30 seconds.
1. Remove the CD30 from the door.
2. Quickly press the reset button on the back of the CD30.

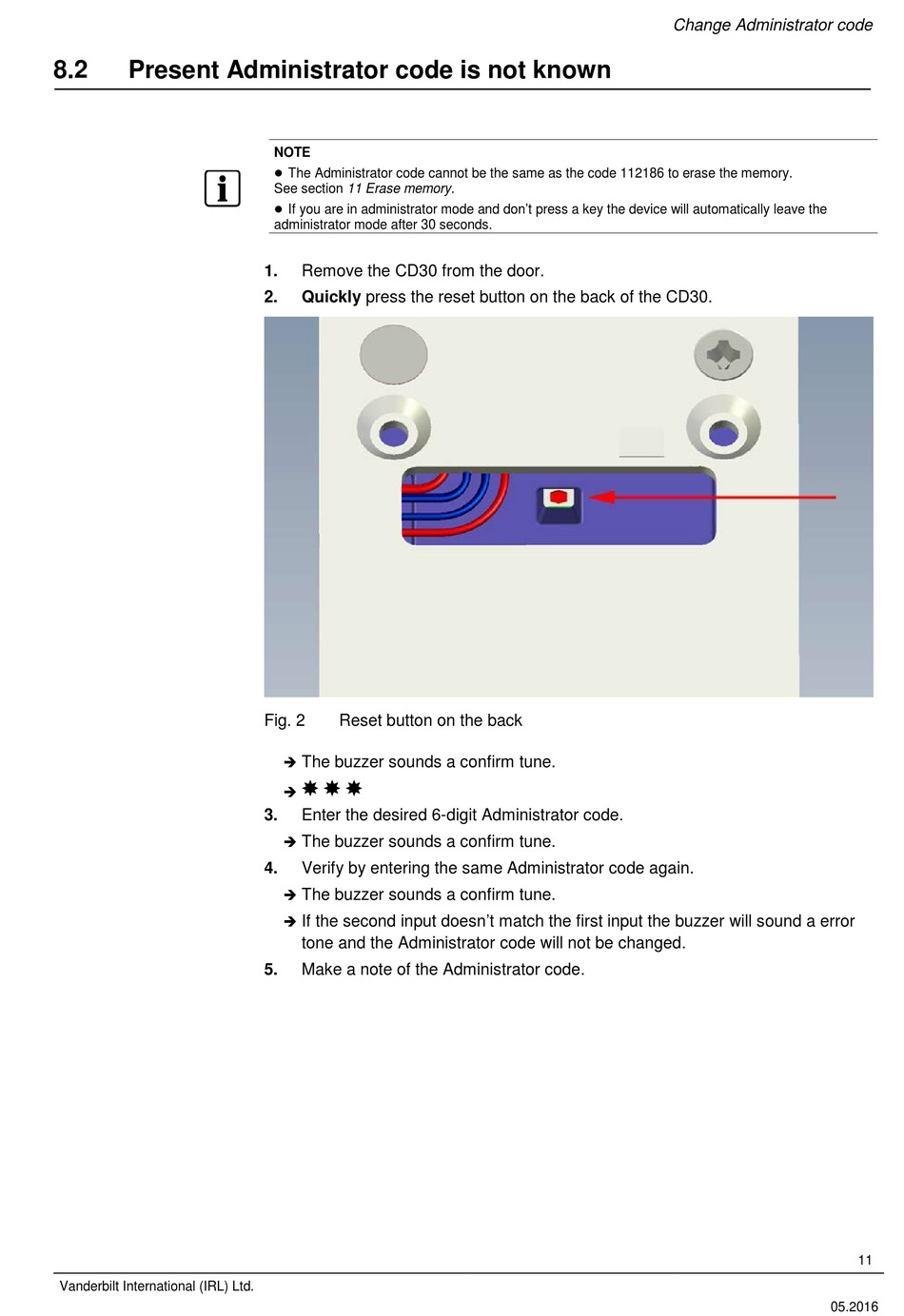

Fig. 2 Reset button on the back
 The buzzer sounds a confirm tune.

3. Enter the desired 6-digit Administrator code.
 The buzzer sounds a confirm tune.
4. Verify by entering the same Administrator code again.
 The buzzer sounds a confirm tune.

If the second input doesn't match the first input the buzzer will sound a error
tone and the Administrator code will not be changed.
5. Make a note of the Administrator code.
Change Administrator code
05.2016
11
