Textron EZ-GO Express L6 Service & Parts Manual page 10

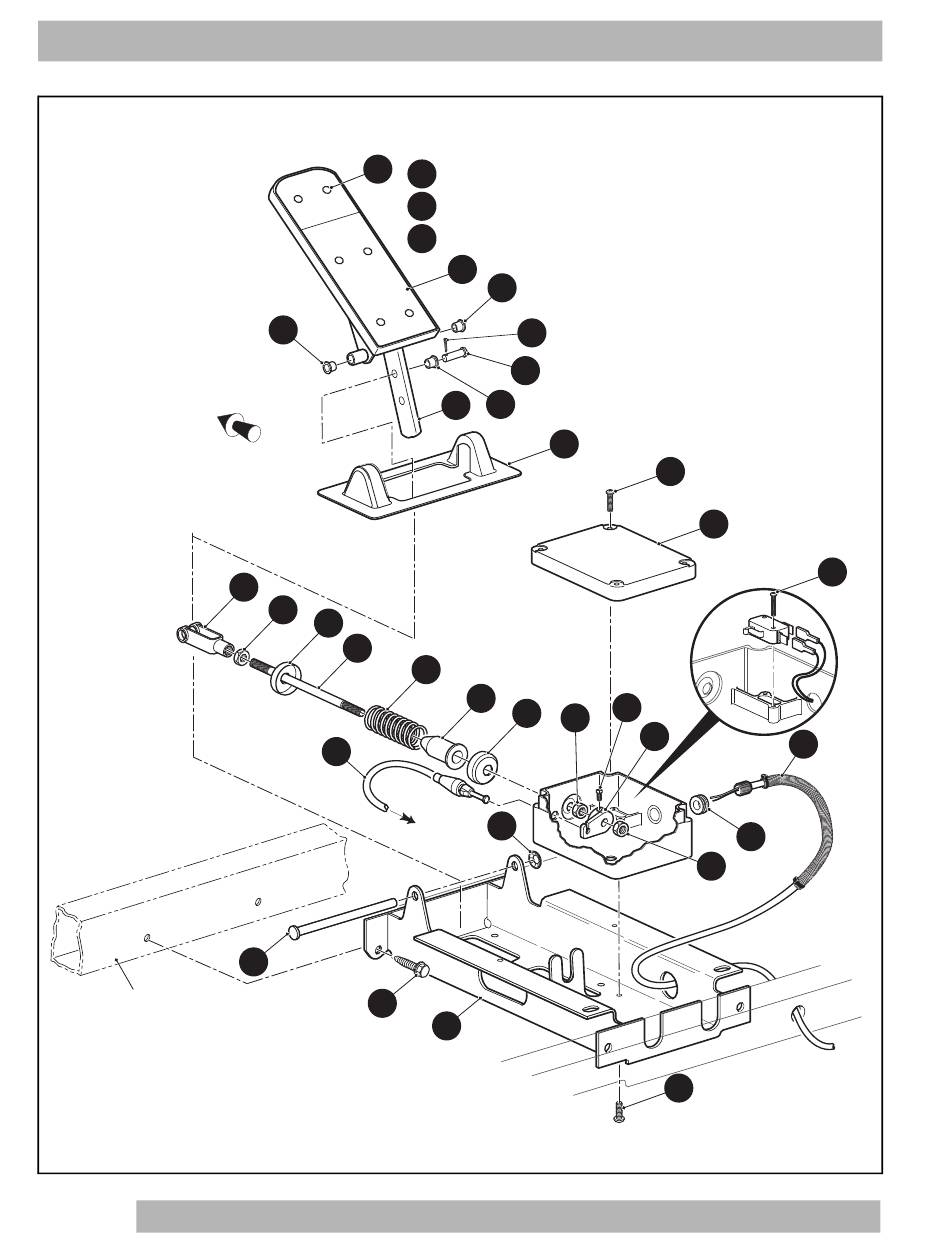

ACCELERATOR
Front of Vehicle
Part of frame
Page A-1
29
26
27
3
16
17
19
18
15
To Governor
2
33
10015775 Service Parts Manual
1
Accelerator Pedal Box Assembly includes items 2 - 31
Accelerator Pedal Assembly includes items 27 - 30
Accelerator Pedal Pad Kit includes items 28, 29
28
3
7
5
3
30
32
21
22
23
17
4
11
10
9
25
24
14
31
20
8
13
