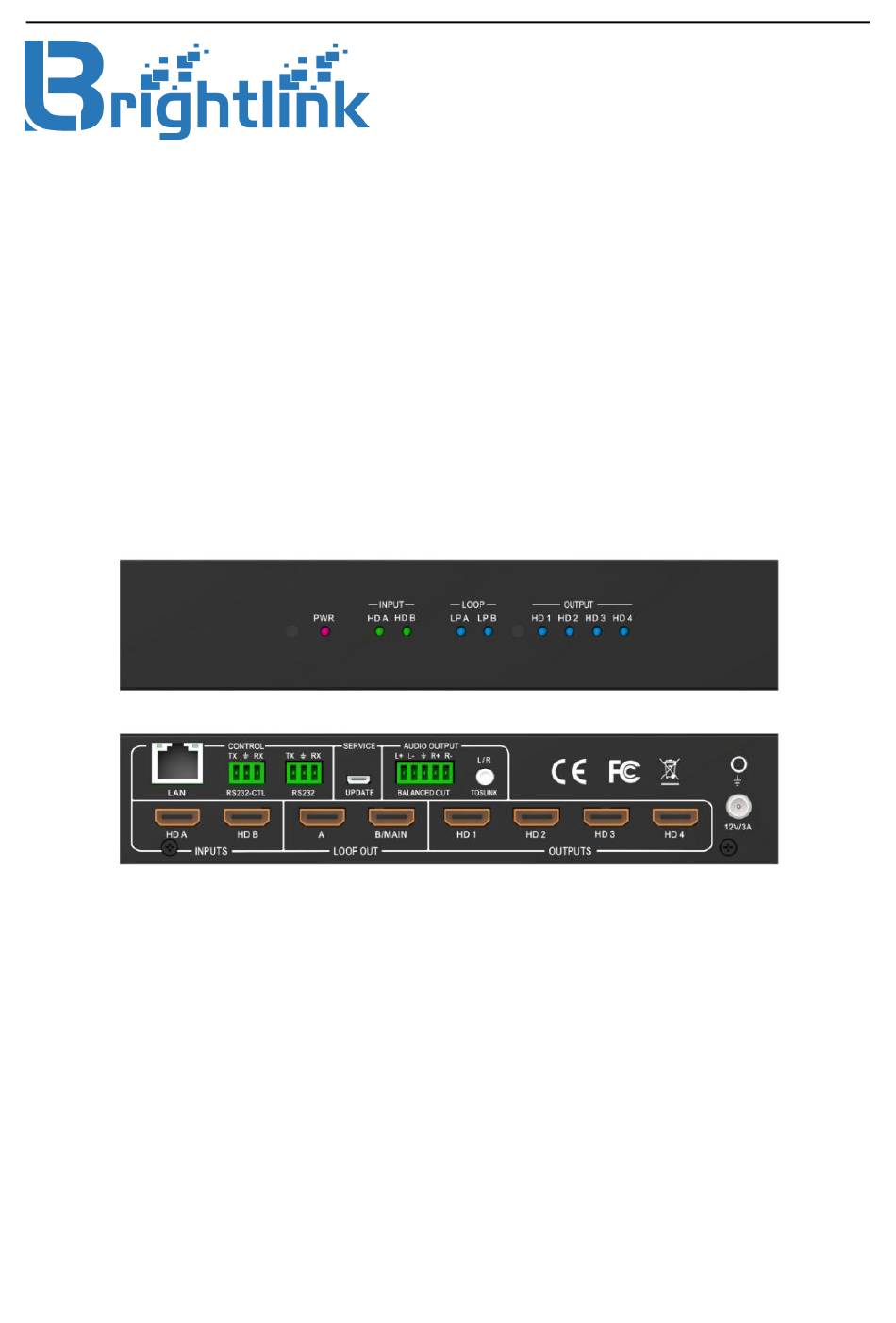

Brightlink 2x2 4k@60Hz Video Wall Controller with Web GUI
User Manual
SKU: BL-VW22-4K60-GUI
Brightlink 4K@60hz 2x2 HDMI 2.0 video wall
controller with Web GUI / 3rd Party Control, PIP
Dear Customer
Thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully before connecting, operating or adjusting
this product. Please keep this manual for future reference.
Brightlinkav.com
Advertisement
Table of Contents
Related Manuals for Brightlink BL-VW22-4K60-GUI
Summary of Contents for Brightlink BL-VW22-4K60-GUI
- Page 1 Brightlink 2x2 4k@60Hz Video Wall Controller with Web GUI User Manual SKU: BL-VW22-4K60-GUI Brightlink 4K@60hz 2x2 HDMI 2.0 video wall controller with Web GUI / 3rd Party Control, PIP Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product.
-
Page 2: Table Of Contents
Brightlink 2x2 4k@60Hz Video Wall Controller with Web GUI Contents 1. INTRODUCTION 2. FEATURES ..................... 3 3. CONNECTORS AND CONTROLS ............3 Front........................... 3 Rear..........................3 4. USING THE CONTROLLER ..............4 5. PC TOOL ....................4 Video Wall Context Menu ..................8 Bezel Setting......................9... -
Page 3: Introduction
Brightlink 2x2 4k@60Hz Video Wall Controller with Web GUI 1. Introduction Controller is a HDMI 2.0 Video Wall controller with 2 HDMI input, 2 HDMI loop out and 4 HDMI scaling out for video wall processing. The Toslink jack terminal provides analogue L/R audio and digital SPDIF audio output. -
Page 4: Using The Controller
Brightlink 2x2 4k@60Hz Video Wall Controller with Web GUI Name Description 12V/3A Controller DC jacket. External RS232 control, Baud Rate: 57600 RS232-CTL Data Bits:8, Parity: None Stop Bits:1 RS232 Loop out RS232-CTL UPDATE Firmware upgrade Balanced Audio out 5-way phoenix Jacket, 20Hz ~ 20kHz, 1.5Vrms max ... - Page 5 Brightlink 2x2 4k@60Hz Video Wall Controller with Web GUI EDID management User can read each scaling output port downstream EDID and save as a BIN file. User can open an existing EDID file and write to the HDMI A and B input port as Manual EDID.
- Page 6 Brightlink 2x2 4k@60Hz Video Wall Controller with Web GUI Signal Setting tab on the PC tool User can read each input port resolution and set each scaling output resolution here Available output resolutions: Number Output Resolution Setting Number Output Resolution Setting...
- Page 7 Brightlink 2x2 4k@60Hz Video Wall Controller with Web GUI The Video Wall tab is used to configure a group of outputs to function as a video wall. Use the Video Wall Setting controls to change how the displays are arranged on the Video Wall tab: a.
-
Page 8: Video Wall Context Menu
Brightlink 2x2 4k@60Hz Video Wall Controller with Web GUI Video Wall Context Menu Right clicking on any of the screen icons will display the following context menu: Brightlinkav.com... -
Page 9: Bezel Setting
Brightlink 2x2 4k@60Hz Video Wall Controller with Web GUI Screen Stitching This option connects the selected screens into a video wall configuration. Cancel Stitching Return the Video Wall configuration to normal outputs. Removes the single screen x from the video wall to allow the displaying another full frame image within the video wall configuration, as shown in this example: Screen x –... -
Page 10: Layout Save/Load
Brightlink 2x2 4k@60Hz Video Wall Controller with Web GUI No Bezel Compensation Correct Bezel Compensation Layout Save/Load The Save Scene/Layout and Load Scene/Layout buttons allow a video wall configuration to be saved or recalled at any time. Up to 10 configurations, each with their own name can be saved or recalled. -
Page 11: Package Contents
Brightlink 2x2 4k@60Hz Video Wall Controller with Web GUI Dimensions L218 x W146 x H43 mm Mass (Main Unit) Controller: 2kg Package Contents Item Quantity Controller unit 12V/3A power adapter 5-way phoenix 3-way phoenix 7. Safety Instructions To ensure reliable operation of this product as well as protecting the safety of any person using or handling this device while powered, please observe the following instructions.
