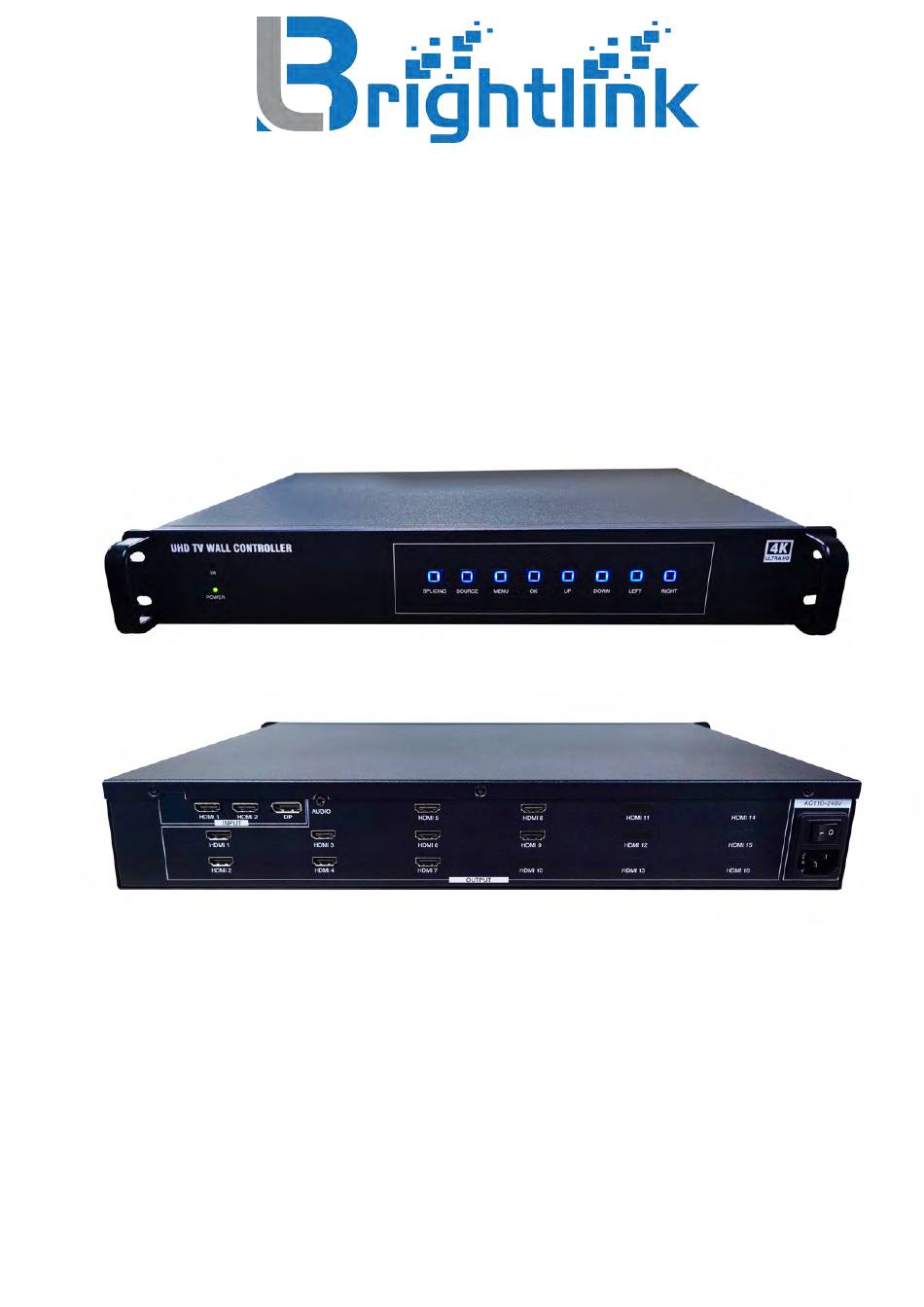

- Page 1 BL-VW33-4K MANUAL 3x3 Video Wall controller 4K@60hz HDMI 2.0 Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.
-
Page 2: Important Safety Instructions
Important Safety Instructions ◆ Make sure that all devices you will be connecting up are properly grounded. ◆ Make sure that the power to all the devices you will be connecting up has been turned off. ◆ Do not place other objects on the cable. ◆... - Page 3 Features ◆ 3x3 video wall controller 1x HDMI 2.0 in,1x HDMI 1.4 in and 1xDP in. ◆ Support 3x3 2x3, 2x2 etc video wall mode. ◆ Max resolution up to 4K@60hz 4:4:4,HDCP 2.2,DP 1.2 max 4K@60hz. ◆ Easy to set-up and control,support control via front buttons and remote. ◆...
-
Page 4: Panel Description
Panel Description (Same for 11-16 ports video wall controller) INPUT： OUTPUT： DC 12V：Power HDMI 1：HDMI 1 channel HDMI 1 ：HDMI 1.4 input port HDMI 2：HDMI 2 channel HDMI 2 ：HDMI 2.0 input port HDMI 3：HDMI 3 channel DP：DP 1.2 input port HDMI 4：HDMI 4 channel AUDIO : Analog audio out POWER: Power light... -
Page 5: Specification
Specification Item Spec HDMI1.4 version ,resolution support 640x480 to 3840x2160@30hz； HDMI 1 HDMI2.0 version,resolution support 640x480 to Input 3840x2160@60hz； HDMI 2 DP1.2 version ,resolution support 640x480 to 3840x2160@60hz； Support 3x3 2x3, 2x2 etc video wall mode,max resolution support 1920x1080/60hz. Entire video wall resolution is 4K@60hz Output HDMI 1-9... -
Page 6: Remote Control
Remote Control Turn on the power Turn off the power Select DP HDMI Select HDMI1 Select HDMI2 Volume down Volume up Image Rotate Video wall/ Cancel video SW/SP wall INPUT Switch input ← Left menu option → Right menu option ↑... -
Page 7: Installation
Installation : 1. Connect the input source(HDMI1.HDMI2.DP) to the video wall controller . 2. 12 output ports connect 12 TV. 3. Use remote or press front button MENU to select splicing menu,(User can use LEFT, RIGHT,UP and DOWN choose splicing mode),set mode to 3x4. 4. - Page 8 5. The other 3 screens setting are the same . 6. Press SOURNU+ LETF/RIGHT key to choose and switch input signal . If via remote can Press INPUT+ LEFT/RIGHT key ) Roaming Window settings 1. Press MENU+LET/RIGHT key into roaming window mode. Then press HIGH/LOW key select Roaming windows mode and press OK to choose ,the roaming windows mode support 1P,2PLR,2PTR,PIP,4P mode .
- Page 9 2. Press OK button to enter PIP mode . 3. Press SOURNU + left /right keys to select the input signal or (remote INPUT + left/ right key) to switch the first screen signal to HDMI 1 Press OK to select the first window, so that the icon runs to the switching signal and press left and right to adjust to the switch Confirm the signal with OK.
-
Page 10: Video Mode
Video mode : (Same for 9-16 ports video wall controller) 1P MODE : 2PLR : Left screen(screen 1 and 3) 2x1 video wall Right screen(screen 2 and 4) 2x1 video wall 2PTR : Up screen(screen 1 and 2) 1x2 video wall Down screen(screen 3 and 4) 1x2 video wall... - Page 11 PIP : Picture in Picture ( Under PIP mode,User can use remote control to move the picture A position ) 4P mode :...
- Page 12 Main Menu instructions 1.Image menu: adjust brightness, chroma, contrast. 2.Setup menu ： Set splicing mode, splicing position, border blanking; border blanking function: this function only takes effect when the screen is in splicing state, the default value is zero, and adjusting the size of this value can remove part of the border image...
- Page 13 3.Image menu： Image rotation, adjust screen scale mode, automatic dormancy; image rotation: can rotate 90 degrees ,180 degrees ,270 degrees, left and right mirror, up and down mirror flip. Proportional pattern: support 16:9 4:3 5:4 1:1. 4.Time menu ： Set language, restore factory settings, panel key light turn on/off .
-
Page 14: Troubleshooting
5.Cutting Black Edge： Adjusts the horizontal vertical position only in the 1P(3x4 video wall mode) splicing state, sets the image width height . Trouble shooting No Image 1. Verify the input source is powered on and connected with controller box. 2. -
Page 15: Packing List
Image out of order 1. Check whether the row and column positions are set correctly. 2. Check whether the screen serial number is consistent with the controller box HDMI outputs. Image blurred 1. Re‐plug the connector to prevent the socket interface is bad. 2.
