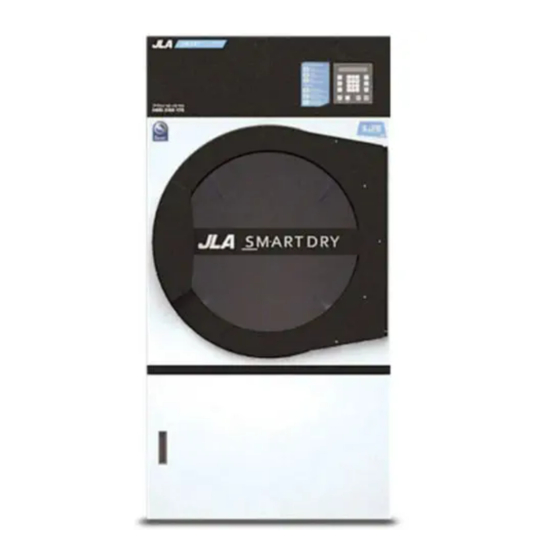

SD35 / SD50 / SD80
Installation/Operator Manual
WARNING: For your safety the
information in this manual must be
followed to minimize the risk of fire or
explosion and to prevent property
damage, personal injury or death.
— Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance.
Do not touch any electrical switch;
do not use any phone in your
building.
Clear the room, building or area of
all occupants.
Immediately call your gas supplier
from a neighbor's phone. Follow
the gas supplier's instructions.
If you cannot reach your gas
supplier, call the fire department.
— Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.
AVERTISSEMENT: Assurez-vous de
bien suivre les instructions données dans
cette notice pour réduire au minimum le
risque d'incendie ou d'explosion ou pour
éviter tout dommage matériel, toute
blessure ou la mort.
—Ne pas entreposer ni utiliser d'essence
ni d'autres vapeurs ou liquides
inflammables à proximité de cet
appareil ou de tout autre appareil.
—QUE FAIRE SI VOUS SENTEZ UNE
ODEUR DE GAZ:
Ne pas tenter d'allumer d'appareils.
Ne touchez à aucun interrupteur. Ne
pas vous servir des téléphones se
trouvant dans le bâtiment.
Évacuez la pièce, le bâtiment ou la
zone.
Appelez immédiatement votre
fournisseur de gaz depuis un voisin.
Suivez les instructions du fournisseur.
Si vous ne pouvez rejoindre le
fournisseur de gaz, appelez le service
des incendies.
—L'installation et l'entretien doivent être
assurés par un installateur ou un
service d'entretien qualifié ou par le
fournisseur de gaz.
JLA Limited
Meadowcroft Lane, Halifax Road
Ripponden
West Yorkshire, England
HX6 4AJ
Telephone: 01422 822282 / Fax: 01422 824390
Part No. 113538 -7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SD35 and is the answer not in the manual?

Questions and answers

Summary of Contents for JLA SD35

  • Page 1 SD35 / SD50 / SD80 Installation/Operator Manual AVERTISSEMENT: Assurez-vous de WARNING: For your safety the bien suivre les instructions données dans information in this manual must be cette notice pour réduire au minimum le followed to minimize the risk of fire or risque d’incendie ou d’explosion ou pour...
  • Page 2 Replacement parts can be obtained from your distributor or JLA. When ordering replacement parts, you can FAX your order to JLA at 01422 824390 or telephone your order directly to the JLA Parts Department at 01422 822282. Please specify the dryer model number and serial number in addition to the description and part number, so that your order is processed accurately and promptly.
  • Page 3: Table Of Contents

    Safety Precautions ........... 4 and the gas supply or the steam supply before any covers or guards are removed from the machine to SD35 Specifications ......... 6 allow access for cleaning, adjusting, installation, or testing of any equipment per OSHA standards.
  • Page 4: Safety Precautions

    They should not be materials. Drying in a heated tumbler may damage removed from the tumble dryer or piled or stacked while hot. plastics or rubber and also may be a fire hazard. JLA Limited 113538 - 7...
  • Page 5 If the appliance is to be installed and _____________________________________________________________ operated in a country other than the one indicated on the rating plate, a new rating plate must be obtained from JLA _____________________________________________________________ Limited. IEC335 applies.
  • Page 6: Sd35 Specifications

    SD35 Specifications _______________________________________________________________ 15.87 kg MAXIMUM CAPACITY (DRY WEIGHT) 35 lb 76.2 cm TUMBLER DIAMETER 30” TUMBLER DEPTH 29-3/8” 74.61 cm TUMBLER VOLUME 12.0 cu ft 339.80 L 0.37 kW TUMBLER / DRIVE MOTOR 1/2 hp 0.37 kW BLOWER / FAN MOTOR...
  • Page 7 SD35 Specifications _______________________________________________________________ NOTE: The manufacturer reserves the right to make changes in specifications at any time without notice or obligation. 113538 -7 Telephone 01422 822282...
  • Page 8: Sd50 Specifications

    Btu/hr 18.5 63,125 15,907 17,541 20.4 69,608 75,067 18,917 Shaded areas are stated in metric equivalents 4/20/17 NOTE: The manufacturer reserves the right to make changes in specifications at any time without notice or obligation. JLA Limited 113538 - 7...
  • Page 9 SD50 Specifications _______________________________________________________________ NOTE: The manufacturer reserves the right to make changes in specifications at any time without notice or obligation. 113538 -7 Telephone 01422 822282...
  • Page 10: Sd80 Specifications

    15,907 18.5 63,125 17,541 20.4 69,608 75,067 18,917 Shaded areas are stated in metric equivalents 4/20/17 NOTE: The manufacturer reserves the right to make changes in specifications at any time without notice or obligation. JLA Limited 113538 - 7...
  • Page 11 SD80 Specifications _______________________________________________________________ NOTE: The manufacturer reserves the right to make changes in specifications at any time without notice or obligation. 113538 -7 Telephone 01422 822282...
  • Page 12: Installation Procedures

    To remove the skid from Installation should be performed by competent professional the SD35, SD50, or SD80, locate and remove the 2 bolts in accordance with local, state, and country codes. In the securing the base of the dryer to the wooden skid.
  • Page 13: Dryer Enclosure Requirements

    A The requirement to allow the lint door to open completely for the B = 12-inches (30.5 cm) SD35 is 33-inches (83.8 cm), SD50 is 36” (91.4 cm), SD80 is 40-inches (101.6 cm). B A minimum overhead clearance of 12-inches (30.48 cm) is required.
  • Page 14: Exhaust Requirements

    Single Dryer Venting (SD35) shall either be retained and subsequently re-evaporated or discharged. IMPORTANT: For the SD35, a minimum exhaust duct size of 6-inches (15.24 cm) must be used. CAUTION: This dryer produces combustible lint and must be exhausted to the outdoors.
  • Page 15 Combined Vertical HORIZONTAL SINGLE DRYER VENTING and Horizontal Dryer Venting 8-INCH (20.32 CM) DUCTING For an 8-inch (20.32 cm) combined vertical and horizontal run, the dryer to the outside outlet cannot exceed the sum of dimensions “A” and “B” in the following illustration. This calculation of “A”...
  • Page 16 SD35 JLA Limited 113538 - 7...
  • Page 17 SD50, SD80 113538 -7 Telephone 01422 822282...
  • Page 18: Electrical Information

    AMP DRAW PHASE VOLTAGE SERVICE BREAKER manual can result in personal injury or component failure. 60 Hz 50 Hz SD35 NOTE: Component failure due to improper installation will — 1ø void the warranty. 1ø — 1ø —...
  • Page 19 SERVICE BREAKER 60 Hz 50 Hz The grounded cold water pipe must have metal-to-metal SD35 SINGLE-PHASE HEAT, SINGLE-PHASE MOTOR connection all the way to the electrical ground. If there are 1ø 11.3 — any nonmetallic interruptions, such as, a meter, pump, plastic, 1ø...
  • Page 20 CAUTION: The dryer must be grounded. A ground lug has been provided for this purpose. Input connection wiring must be sized properly to handle the dryer’s current draw. This information is printed on the dryer’s rating plate. JLA Limited 113538 - 7...
  • Page 21 For 220-416V Applications For 220-240V Applications Black White Green Black Green Ground Screw Ground Screw CAUTION: The dryer must be grounded. A ground lug has been provided for this purpose. Input connection wiring must be sized properly to handle the dryer’s current draw.
  • Page 22: Gas Information

    It is recommended that a gas shutoff valve be provided to the gas supply line of each dryer for ease in servicing. Fire or explosion could result due to failure of isolating or disconnecting the gas supply as noted. JLA Limited 113538 - 7...
  • Page 23 12.0 Natural (I 15-30 70,000 20.50 2.386 M 3.988 12.0 2ELL 1,000 70,000 20.50 1.981 M 3.264 — *Natural (I SD35 70,000 20.50 2.386 M 3.264 — *Butane (I 3,175 28-30 70,000 20.50 1.478 kg/hr 2.261 — *Propane (I 2,500 70,000 20.50...
  • Page 24: Converting From One Family Of Gas To Another

    (#92-0737 or appliance is converted (gas type changed), a new #92-0659) supplied. rating plate must be obtained from JLA Limited Reverse procedure for reinstalling the gas valve/manifold (dryer’s serial number is required to purchase a assembly to the dryer.
  • Page 25: Gas Pressure Testing

    If the provisions must be made to protect these water lines from appliance is converted (gas type changed), a new freezing. rating plate must be obtained from JLA Limited. Conversions done improperly can result in a fire or explosion! 113538 -7...
  • Page 26: Preparation For Operation / Start-Up

    IMPORTANT: In most cases there is no regulator provided in an L.P. dryer. The water column pressure must be regulated at the source (L.P. tank), or an external regulator must be added to each dryer. JLA Limited 113538 - 7...
  • Page 27: Preoperational Instructions

    Parts Department for a distributor in your area. Parts may also be purchased directly from the factory by calling the JLA Parts Department at 01422 822282 or you may FAX in your order at 01422 824390.
  • Page 28: Warranty Information

    The thermostat and cannot be contacted or is unknown, warranty information can microprocessor temperature sensor area is located in the be obtained by contacting the JLA Warranty Department at ductwork just above the lint screen. All of these areas are 01422 822282.
  • Page 29: Procedure For Functional Check Of Replacement Components

    Manual Reset Hi-Limit Instructions WARNING When contacting JLA, the information on the rating plate is Disconnect power before attempting to reset any required to ensure proper service/parts assistance. The rating...
  • Page 30 Part No. 113538 7 - 04/21/17...
