Generac Power Systems G0071010 Instruction Sheet page 2

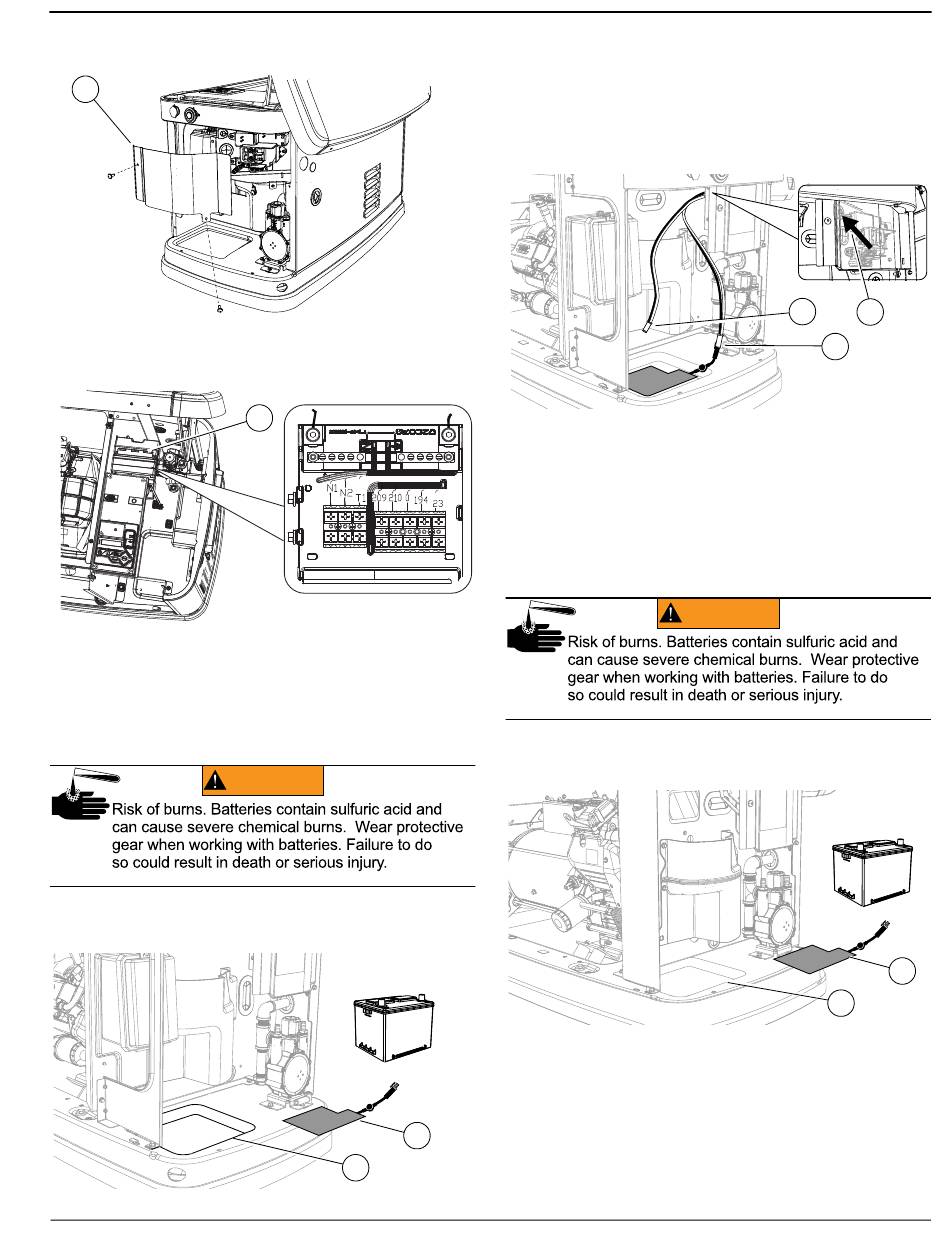

7. See Figure 1 or Figure 2.
connection panel cover (A).
A
Figure 1. Removing Customer Connection Panel Cover
(2016–Present)
Figure 2. Removing Customer Connection Panel Cover
(2013–2015 Units)
Installing the Battery Heater
(9kW Models)
WARNING
1. See Figure 3. Using a clean towel, wipe the bottom of the
battery and battery tray (A) to remove any dirt, oil, or other
contaminants.
Figure 3. Placing the Battery Heater (9 kW)
Battery Heater Kit
Remove the customer
002917
A
002916
(000138a)
B
A
002772
2. Install battery heater (B) by removing the protective
backing from the adhesive side and placing on the battery
tray. The connector should face the rear of the enclosure.
3. See Figure 4. Plug the connector into one of the Y-harness
sockets (C). If the empty Y-harness socket (D) will not be
connected to an oil filter heater, coil the wires and secure
with a plastic wire tie.
Figure 4. Routing Heater Wires (9 kW)
4. Pass the lead wires through the customer connection panel
grommet (E).
5. Proceed to Connecting Lead
Installing the Battery Heater
(11-22kW Models)
WARNING
1. See Figure 5. Using a clean towel, wipe the bottom of the
battery and battery tray (A) to remove any dirt, oil, or other
contaminants.
Figure 5. Placing the Battery Heater (11-22 kW)
2. Install battery heater (B) by removing the protective
backing from the adhesive side and placing on the battery
tray. The connector should face the rear of the enclosure.
3. See Figure 6. Plug the connector into one of the Y-harness
sockets (C). If the empty Y-harness socket (D) will not be
connected to an oil filter heater, coil the wires and secure
with a plastic wire tie.
D E
C
002773
Wires.
(000138a)
B
A
002777
2
