- Page 1 100 Watt Single Channel AMPLIFIER PART NUMBER PAV1100 Compatible with 70V/100V speakers and systems pulseaudio1.com | vanco1.com | 800.626.6445...
-
Page 2: Dear Customer
DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. THIS PRODUCT IS 100% INSPECTED AND TESTED IN THE UNITED STATES TO VERIFY PERFORMANCE PARAMETERS. -
Page 3: Package Contents

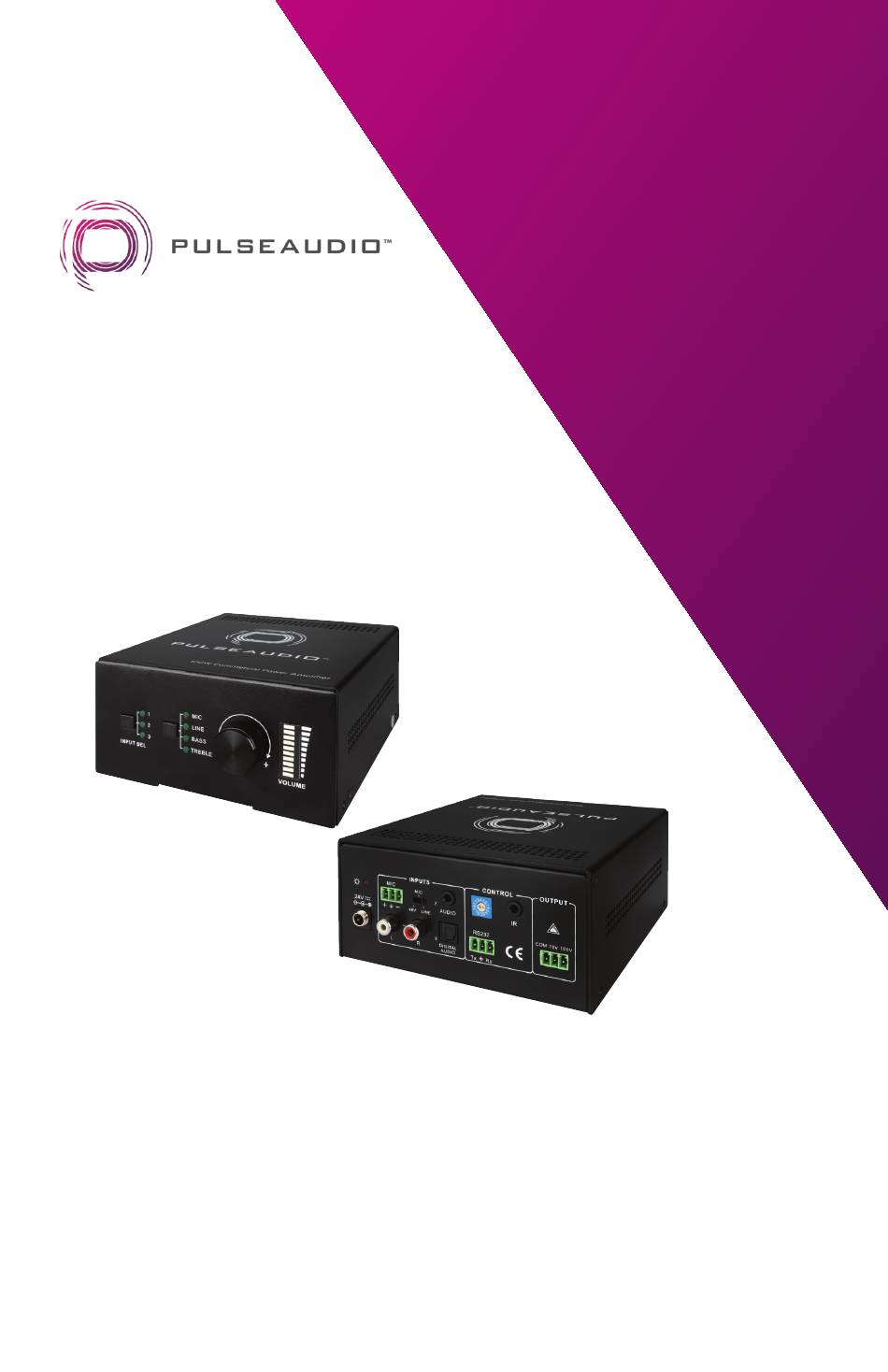

INTRODUCTION The Pulse Audio PAV1100 is a 100 Watt Class-D power amplifier with output alternatively at 70V or 100V. Featuring stereo inputs (a 3.5mm jack for line in and two RCA for L&R audio), one digital input and a balanced MIC input. -
Page 4: Specifications
SPECIFICATIONS Audio Input Audio Output Input (2) stereo audio Output (1) mono amplifier (1) MIC (1) Digital Fiber Audio Input Connector (2) RCA Ouput Connector (1) 3-pole 3.81mm captive screw connector (1) 3.5mm jack (1) 3-pole Input Impedance > 10K ohm Output Tpe Constant voltage 70V or 100V... - Page 5 PANEL DESCRIPTIONS FRONT PANEL Input Selection Button (sequential order) • 1 – Analog RCA • 2 – Analog 3.5mm/Aux • 3 – Digital Toslink EQ Selection Button (sequential order) Rotary Settings Dial to control volume, bass, treble, etc. levels • Set EQ Selection to the desired setting to adjust level Volume/Level control (can be PUSHED to MUTE and UNMUTE audio)
-
Page 6: Back Panel
“downloads” IR Input: Part # PAV140-IR is needed (sold separately), to control the PAV1100 via IR; this allows the PAV1100 to be hidden or enclosed while still controlling the unit via IR remote Power Port: Connect the included power adapter (DC24V) -
Page 7: Connect And Operate
CONNECT AND OPERATE... - Page 8 Ensure PAV1100 amplifier is powered off Connect an analog (3.5MM stereo or RCA) and/or digital (optical) audio cable between the audio output of the source device and the appropriate audio input IF USING A MICROPHONE: Move the Mic Input Switch to the appropriate setting...
- Page 9 • By default, the RS-232 ID selector is set to 0 • Setting the ID selector to any of the other values will prevent the PAV1100 from accepting any RS-232 commands in the incorrect format • NOTE: For additional documentation, please visit the product page at www.vanco1.
- Page 10 RS-232 CONTROL Communication Protocol: RS232 Baud Rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none Command Function Description Feedback Code 1A1. Switching the audio to input 1 A: 1 -> 1 2A1. Switching the audio to input 2 A: 2 ->...
- Page 11 NOTICE The letter inside bracket [ ] is the variable code, which is able to be changed The bracket [ ] is not included to the actual RS232 commands Any dot “.” after the letters is part of the commands ID coding: •...
-
Page 12: Troubleshooting
TROUBLE SHOOTING Problems Causes Solutions No output audio No signal at input/output end Check input/output signal by an osciloscope or a multimeter Failed cable connection Change for another cable Broken unit Send to the dealer for repair POWER indicator does not work Failed power connection Make sure the power cord or respond to any operation... -
Page 13: Technical Support
The PAV1100 has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipment, the PAV1100 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 14: Limited Warranty
LIMITED WARRANTY With the exceptions noted in the next paragraph, Vanco warrants to the original purchaser that the equipment it manufactures or sells will be free from defects in materials and workmanship for a period of two years from the date of purchase. -
Page 15: Liability Statement
LIABILITY STATEMENT Every effort has been made to ensure that this product is free of defects. The manufacturer of this product cannot be held liable for the use of this hardware or any direct or indirect consequential damages arising from its use. It is the responsibility of the user and installer of the hardware to check that it is suitable for their requirements and that it is installed correctly. - Page 16 ® Vanco International 506 Kingsland Drive Batavia, Illinois 60510 call: 800.626.6445 | fax: 630.879.9189 visit: www.vanco1.com A brand from Learn more at pulseaudio1.com...
