- Page 1 40 Watt Single Channel AMPLIFIER PART NUMBER PAV140 Compatible with 70V/100V speakers and systems pulseaudio1.com | vanco1.com | 800.626.6445...
-
Page 2: Dear Customer
DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. THIS PRODUCT IS 100% INSPECTED AND TESTED IN THE UNITED STATES TO VERIFY PERFORMANCE PARAMETERS. -
Page 3: Package Contents

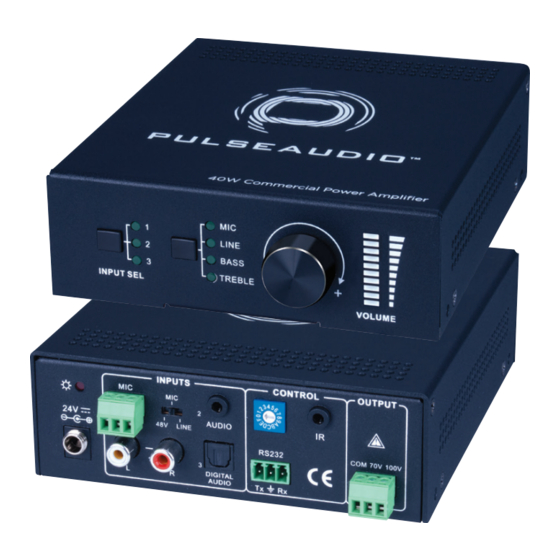

FEATURES The PulseAudio PAV140 is an amplifier that produces 40 Watts with Class-D power that is able to output 70V or 100V. Features two stereo inputs (3.5mm jack for line in and (2) RCA for L&R), one digital input and one balanced MIC input, with integrated ducking functionality, EQ control, and MIC mixing. -
Page 4: Front Panel
PANEL DESCRIPTIONS FRONT PANEL BACK PANEL... - Page 5 Input Selection Button (Toggle) EQ Selection Button (Toggle) Rotary Settings Dial Volume/Level control (can be pushed to mute audio) Power Indictor: Turns red when power is on Microphone Input Port: 3-pole captive screw connector for microphone input; the dial switch on the right side is to select the mirco input kind, including 48V (for condenser microphone), MIC (for dynamic microphone) and LINE (for line audio) Audio Inputs: 3.5mm mini jack for 2 channel audio input...
-
Page 6: Connect And Operate
CONNECT AND OPERATE... - Page 7 RS232 port a. By default, the RS232 ID selector is set to 0 b. Setting the ID selector to any of the other values will prevent the PAV140 from accepting any RS232 commands not in the correct format.
- Page 8 RS232 CONTROL Communication Protocol: RS232 Baud Rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none Command Function Description Feedback Code 1A1. Switching the audio input to input 1 A: 1 2A1. Switching the audio to input 2 90Wx2 3A1.
- Page 9 NOTICE The letter inside bracket [ ] is the variable code, which is able to be changed The bracket [ ] is not included to the actual RS232 commands Any dot “.” after the letters is part of the commands ID coding: •...
-
Page 10: Troubleshooting And Maintenance
The PAV140 has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipment, the PAV140 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 11: Technical Support
TECHNICAL SUPPORT In case of problems, please contact Vanco Technical Support by dialing 1-800-626-6445. You can also email technical support issues to techsupport@ vanco1.com. When calling, please have the Model Number, Serial Number (affixed to the bottom of the unit) and Invoice available for reference during the call. - Page 12 ® Vanco International 506 Kingsland Drive Batavia, Illinois 60510 call: 800.626.6445 | fax: 630.879.9189 visit: www.vanco1.com A brand from Learn more at pulseaudio1.com...
