- Page 1 MICROPHONE PREAMPLIFIER PART NUMBER PA-MICPRE Small, simple, and easy to use microphone pre-amplification solution vanco1.com | 800.626.6445...
-
Page 2: Dear Customer
DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. THIS PRODUCT IS 100% INSPECTED AND TESTED IN THE UNITED STATES TO VERIFY PERFORMANCE PARAMETERS. -
Page 3: Package Contents
Phantom power option is provided for use with a condenser microphones. For any applications requiring a microphone to be added, the PA-MICPRE is a great solution that is simple and easy to use! Microphone Preamplifier Part # PA-MICPRE •... -
Page 4: Panel Descriptions

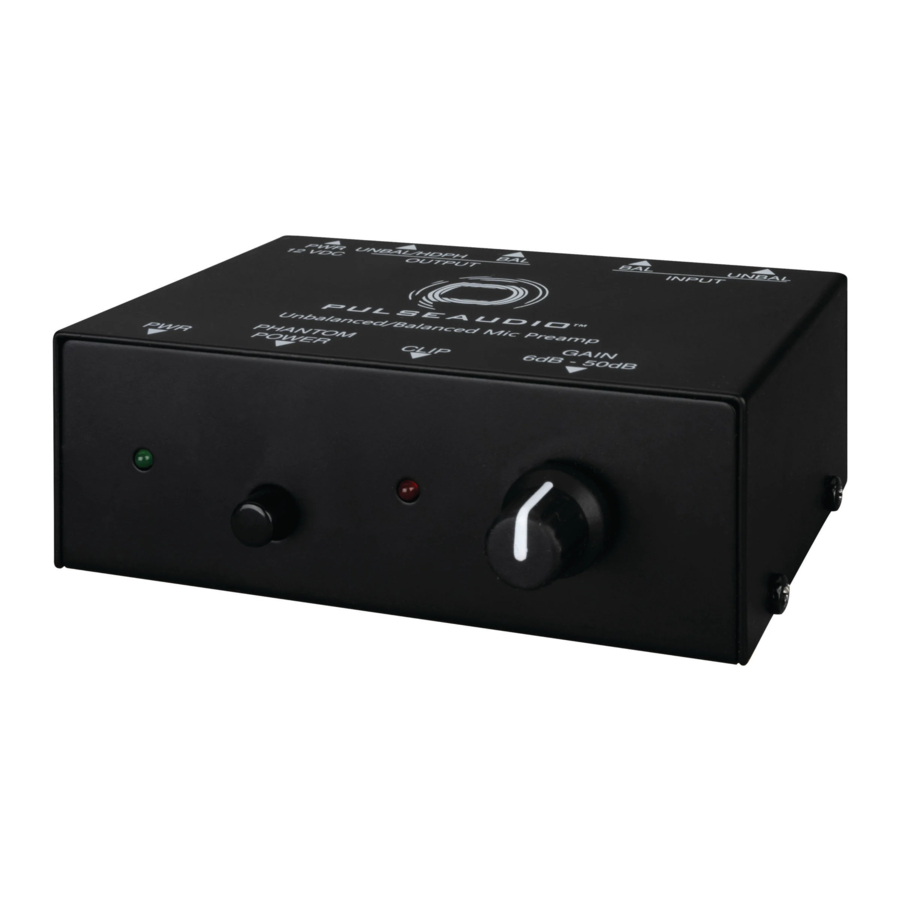

PANEL DESCRIPTIONS FRONT PANEL BACK PANEL Power LED 36V Phantom Power (enabled with button depressed) Clip indicator Gain dial 1/4” Unbalanced Input XLR Female Balanced Input XLR Male Balanced Output 1/4” Unbalanced Output 12V Power Input... -
Page 5: Connect And Operate
XLR or 1/4” Input Note: If using a condenser microphone, make sure the Phantom Power button is depressed Connect the output of the PA-MICPRE to the amplifier using the XLR or 1/4” outputs Apply power to the PA-MICPRE and amplifier... -
Page 6: Specifications
Dimension ............4.4” Wx 2.8” H x 1.5”D Weight ..............0.8 lbs SAFETY AND NOTICE The PA-MICPRE has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipment, the PA-MICPRE should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 7: Technical Support
TECHNICAL SUPPORT In case of problems, please contact Vanco Technical Support by dialing 1-800-626-6445. You can also email technical support issues to techsupport@ vanco1.com. When calling, please have the Model Number, Serial Number (affixed to the bottom of the unit) and Invoice available for reference during the call. - Page 8 ® Vanco International 506 Kingsland Drive Batavia, Illinois 60510 call: 800.626.6445 | fax: 630.879.9189 visit: www.vanco1.com A brand from Learn more at vanco1.com...
