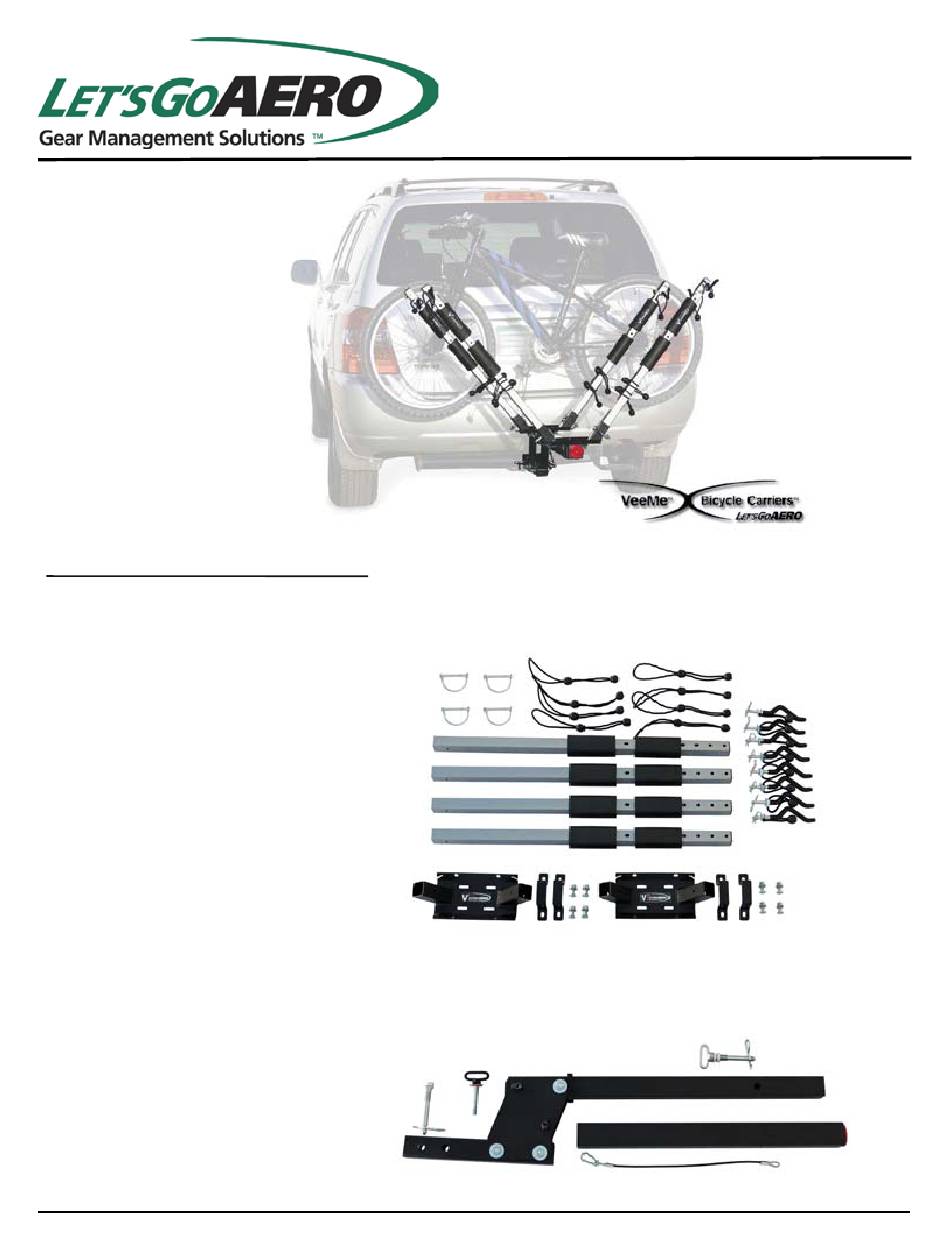

Parts List
Description
(2) WingMan V2 Assemblies, containing:
WingMan Base Plate
Hat Brackets
Carriage Bolts & Hardware sets
Wing with Pads
Wire Lock Pin
Double Toggles
(8) Wheel Cradle Assemblies, containing:
Wheel Cradle
Toggle Balls
Hair Pin Clip
U-Clip
Teleporter Assembly, containing
Teleporter Shank Tube and Tilt Tube
Telescope Tube
Silent Hitch Pin® with Handle
Silent Hitch Pin®
Tilt Pin (black handle)
Safety Cable w/ Biner
Copyright © 2013 Let's Go Aero, Inc.
V4 Teleporter Bike Carrier
Qty
2
4
8
4
4
8
8
8
8
8
1
1
1
1
1
1
WingMan Assemblies
Teleporter Assembly
Part No. VME-V4
User Manual
VME-V4 - v1
Advertisement
Table of Contents
Related Manuals for LetsGoAero VME-V4
Summary of Contents for LetsGoAero VME-V4
- Page 1 V4 Teleporter Bike Carrier Part No. VME-V4 User Manual Parts List Description (2) WingMan V2 Assemblies, containing: WingMan Base Plate WingMan Assemblies Hat Brackets Carriage Bolts & Hardware sets Wing with Pads Wire Lock Pin Double Toggles (8) Wheel Cradle Assemblies, containing:...
- Page 2 Slide Wings into the WingMan Base pockets and tance between the hubs of the bike wheels and secure the Wings to the Base with the Wire Lock attach the wheel cradles to the Wings with the Hair Pins. Pin Clips to match this distance. VME-V4 - v1...
- Page 3 Telescope Tube prior to use. When the Tilt Pin is snug, the spring tension of the Side plates keeps the Tilt Pin tight. Use a 3/4” wrench or ap- propriate tool to tighten the Tilt Pin if necessary. VME-V4 - v1...
- Page 4 Authorization is required prior to return. Please contact Let’s Go Aero toll-free, at 877-464-2376 or 719-630-3800, or via email to support@letsgoaero.com to get an RMA number. No warranty is given for LGA products purchased outside of the United States and Canada.
