ASSEMBLY, INSTALLATION, AND OPERATION INSTRUCTIONS
To register your product, visit the LetsGoAero.com/registration
For More Information & Accessories, Visit our Website - www.LetsGoAero.com
For Technical Support & Product Questions Contact Us at 877-464-2376 or 719- 630-3800
Let's Go Aero, Inc. 4474 Barnes Road Colorado Springs, CO 80917, USA
Patent and trademark protected. Patent Number 8,889,456; Patents Pending.
NOTICE: All Manual information is subject to change without notice. Revised editions
will be available for free download at LetsGoAero.com. Manual information is considered
factual until made obsolete by a revised version.
Follow this QR-Code or visit
LetsGoAero.com/manuals to check for an updated version:
Copyright© 2019, Lets Go Aero, Inc., All rights reserved.
TB-B00987-102119Rev

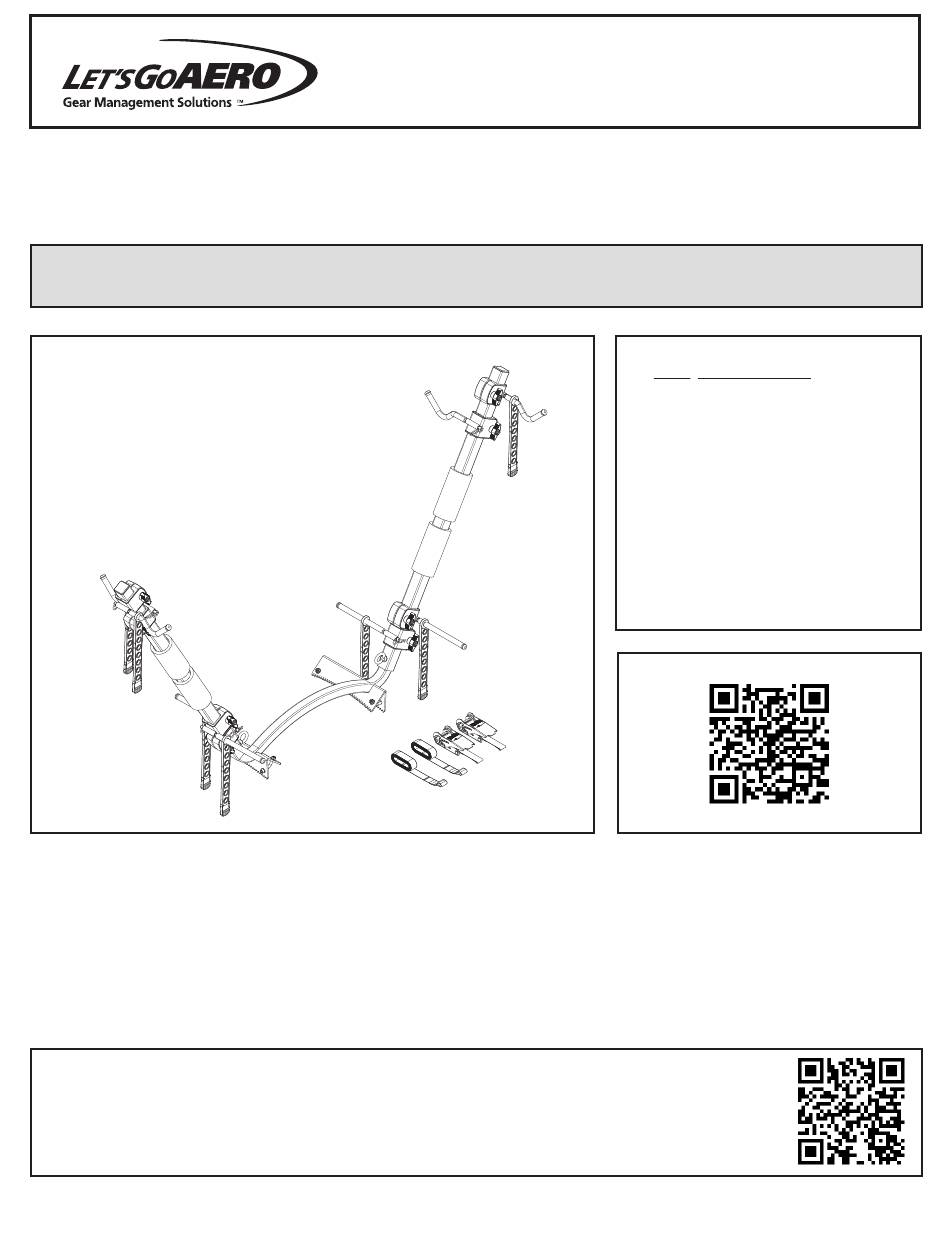

Spare Tire Mount V-Rack™ Carrier for Two Bikes
PRODUCT MANUAL
Maximum load weight limit is 35 lbs per bicycle.
For Rear Mounted Spare Tires.
Email: SUPPORT@LETSGOAERO.COM
Page 1 of 8
TireBiter
Part No. B00987
PARTS
QTY. DESCRIPTION
A
1
BASE
B
4
ANGLE BOLT
C
8
1/4" WASHER
D
4
1/4" NYLOCK NUT
E
2
RATCHET ASSEMBLY
F
2
LONG WEBBING STRAP
G
2
RATCHET COVERS
H
2
WING SUPPORT ARMS
J
8
CRADLE HOUSING
K
4
UPPER WHEEL CRADLE
L
4
LOWER WHEEL CRADLE
M
8
RUBBER STRAPS
N
8
SMALL RETAINER CLIPS
O
2
RING PIN
Watch the Assembly Video:
www.LetsGoAero.com/Videos
Revision Date: 10/21/19
™
