AXIS T8344 Power On/Off Plug

User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the T8344 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Axis T8344

  • Page 1: User Manual

    AXIS T8344 Power On/Off Plug User Manual...
  • Page 2: Table Of Contents

    AXIS T8344 Power On/Off Plug Table of Contents Solution overview ......... . .
  • Page 3: Solution Overview

    AXIS T8344 Power On/Off Plug Solution overview Solution overview The device is Z-Wave® enabled and fully compatible with any Z-Wave enabled network. The device can be set up in a Z-Wave network to communicate directly with other end devices such as lighting controllers, or to report directly to a Z-Wave controller like...
  • Page 4: Product Overview

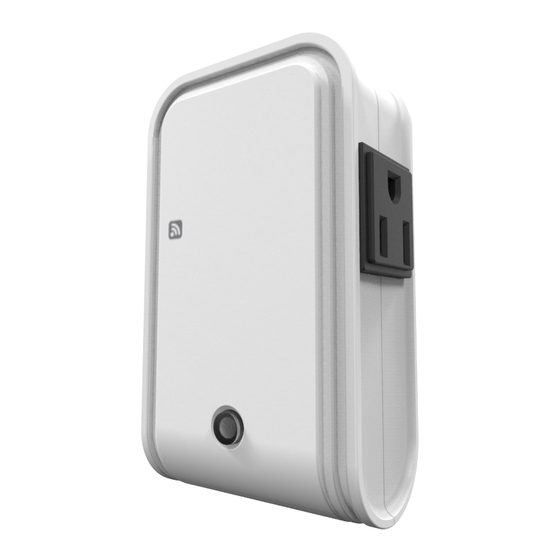

    AXIS T8344 Power On/Off Plug Product overview Product overview 1. Link button/LED indicator 2. Pass-through outlet 3. Controllable outlet...
  • Page 5: How To Add A Device To A Z-Wave Network

    AXIS T8344 Power On/Off Plug How to add a device to a Z-Wave Network How to add a device to a Z-Wave Network Auto inclusion The detector supports the auto inclusion feature where it will automatically enter Inclusion mode when first powered up.
  • Page 6: How To Test The Z-Wave Device

    AXIS T8344 Power On/Off Plug How to test the Z-Wave device How to test the Z-Wave device From the Z-Wave Controller’s interface, turn on the newly added On/Off plug (refer to the Controller’s user manual for instructions). The LED indicator on the On/Off plug should light up.
  • Page 7: How To Program The Z-Wave Device

    This has the effect that when the detector triggers, all devices associated with detector will be operated. Note Association-group support can vary among Z-Wave Controllers. The AXIS M5065 supports Z-Wave Association Group 1. Group 1 commands: •...
  • Page 8 AXIS T8344 Power On/Off Plug How to program the Z-Wave device Group Profile Command Class & Command Group Name (UTF-8) (List) N bytes General Binary Switch Report Lifeline Notification Report Device Reset Locally Notification Control Basic Set On/Off control (Button1) Basic Basic Get: Inquire about the status of the device.
  • Page 9: Troubleshooting

    AXIS T8344 Power On/Off Plug Troubleshooting Troubleshooting Actio- Description n/Sta- indication The Z-Wave controller could not find the device and did not provide a node ID. 2-second node ID Status 2-second off. Factory 1. Press the link button 3 times within 1.5 seconds to put the unit into exclusion mode.
  • Page 10: Specifications

    AXIS T8344 Power On/Off Plug Specifications Specifications To find the latest version of the product’s datasheet, go to the product page on axis.com and locate Support & Documentation. Specifications Operating voltage AC100-120V, 50/60Hz Maximum load 1400W (US), 1200W (JP) Range...
  • Page 11 User Manual Ver. M1.5 AXIS T8344 Power On/Off Plug Date: January 2018 © Axis Communications AB, 2017 - 2018 Part No. T10117076...
