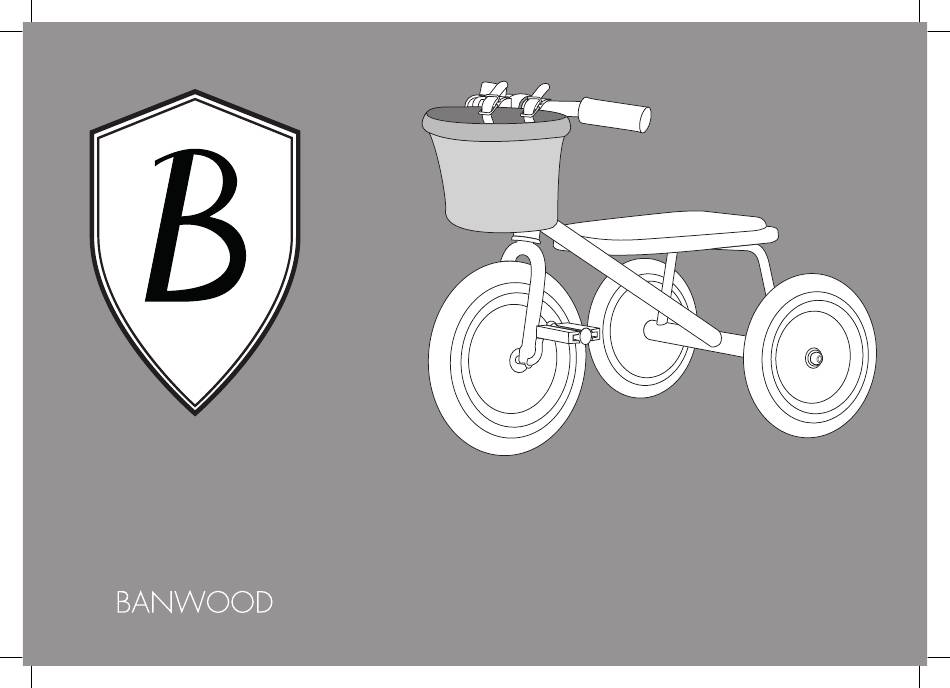

- Page 1 TRIKE Warning! Assembly by an adult. Contain sharp point, sharp edge or small parts before assembly. w w w . b a n w o o d . c o m...
- Page 2 También discounts Banwood products. reciben descuentos especiales en los Register at banwood.com to join the productos de Banwood. Regístrese Riders and take advantage of our en banwood.com para unirse a los membership benefits. ciclistas y aproveche nuestras ventajas...
- Page 3 Your trike comes partially assembled. The following instructions are designed to guide Tools / Herramientas you through the final assembly as well as the adjustment of the trike. This guide include Allen key Llave Allen information about those components that are uninstalled or are intended to be adjustable.
- Page 4 WHAT’S IN The box ¿Qué incluye la caja? Extra Helper Left wheel Right wheel Before assembled Antes de montar...
- Page 5 TRIKE ASSAMBLY STEPS / PASOS PARA EL MONTAJE DEL TRICICLO (Balls looking up)
- Page 6 (Balls down)
-
Page 7: Montaje Del Manillar
FITTING THE STEM Insert the stem into the headset, make sure the headset over the safety line of the stem. Using the Allen key provided, fasten the bolt on the top of the stem. MONTAJE DEL MANILLAR Inserte el manillar en el cuadro del triciclo y una ver insertado ajuste con la llave allen el tornillo hasta que quede perfectamente ajustado. - Page 8 COMPLETE FRONT SUMMARY / RESUMEN DE LA PARTE FRONTAL (Balls down) (Balls up) Place in this position...
- Page 9 RIGHT WHEEL LEFT WHEEL...
- Page 10 BACK VIEW WARNING (Complete wheel sumary) To avoid damaged F1 and F2 please don’t hit directly on F1 and F2, please, use the “helper” between the hammer and F1/F2. INCORRECT (Inside) CORRECT Helper...
- Page 11 FITTING THE STEM / ASEGURE EL MANILLAR CON EL TORNILLO INCORRECT CORRECT...
-
Page 12: Basket Installation
BASKET INSTALLATION Strap the tape on the basket to the handlebar, adjust it to a perfect position. MONTAJE DE LA CESTA Fije la cinta en la cesta al manillar, ajústela a una posición adecuada. - Page 13 PUSH BAR USAGE / USO DE BARRA DE EMPUJE F + E...
-
Page 14: Safety Notice
· This is a wheeled toy and required adult supervision. · The toy should be used with caution since skill is required to · The trike has no brake system. The rider should stop the trike avoid falls or collisions causing injury to the user or third parties. -
Page 15: Care And Maintenance
· For wooden parts, wipe with a clean, damp cloth. Use mild soap on stubborn marks. Avoid rubbing and products · Keep your trike in a dry place when not in use. containing ammonia. · Regularly check and tighten securily all bolts. - Page 16 w w w . b a n w o o d . c o m i n f o @ b a n w o o d . c o m...
