USER MANUAL
DOWN-DRAFT HOOD
GB
IE
IE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATFILT3 and is the answer not in the manual?

Questions and answers

Related Manuals for Apelson ATFILT3

Summary of Contents for Apelson ATFILT3

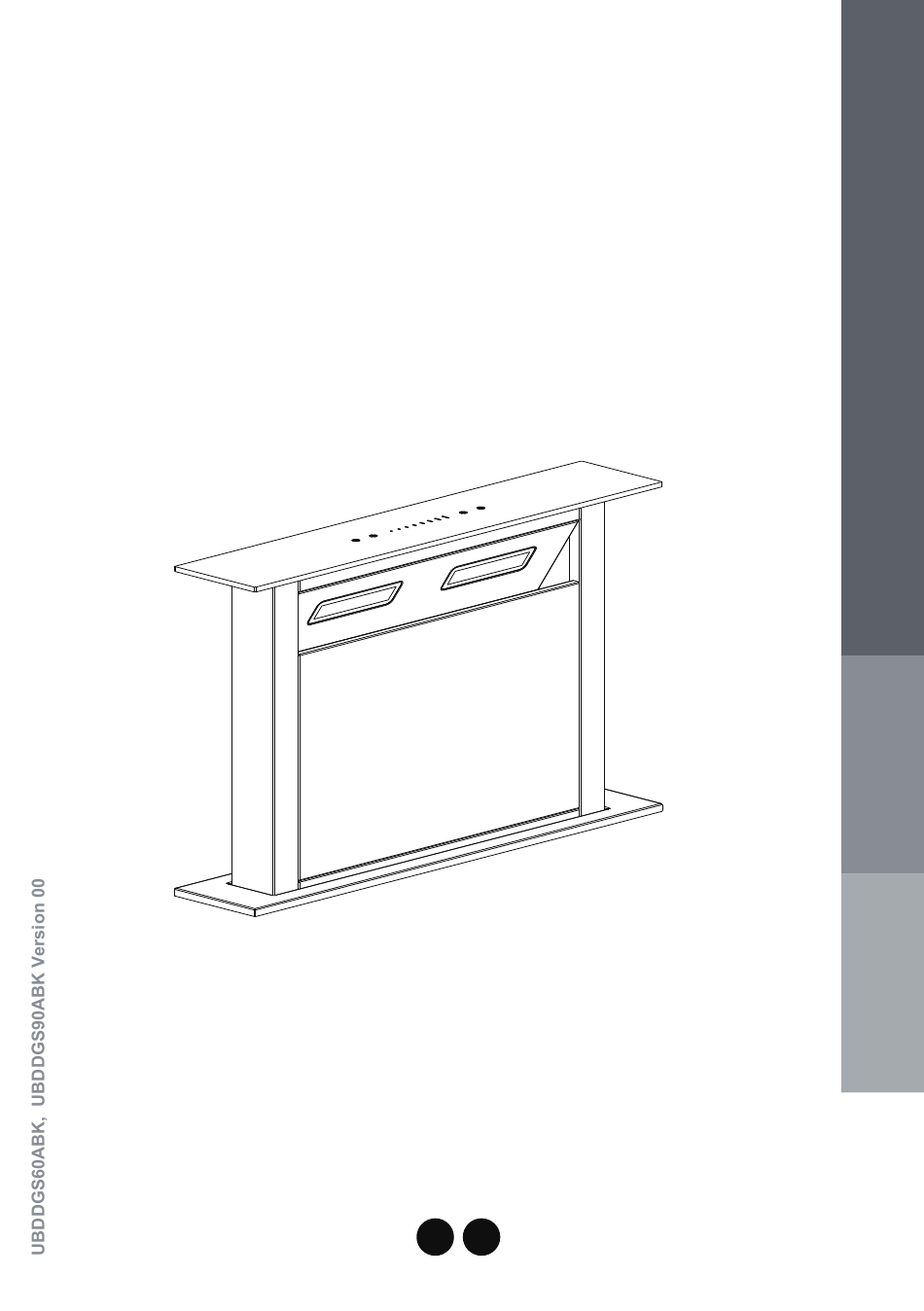

  • Page 1 USER MANUAL DOWN-DRAFT HOOD...
  • Page 2 [01] x 1 VENT PACK 150mm [09] x 1 Cooker hood...

  • Page 3: Table Of Contents

    Let's get started... These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started... Safety Before you start more detail... Product functions Switching on/off Care and maintenance Troubleshooting Recycling and disposal Technical and legal information Appendix Installation...

  • Page 4: Safety

    Safety These instructions are for your safety. Please read through them thoroughly prior to installation and retain them for future reference. Warning : For use with Gas Hobs and for the user not to touch the front panel due to heat •...
  • Page 5 Safety the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children less than 8 years.
  • Page 6 Safety Warning: When the range hood and appliances supplied with energy other than electricity are simultaneously in operarion,the negative pressure in the room must not exceed 4 Pa (4x10 bar). Please dispose of the packing material carefully. Do not use flammable sprays in close vicinity to the appliance.
  • Page 7 Safety voltage and frequency coincide with that indicated on the appliance nameplate. Warning: The hood may stop working during an electrostatic discharge (e.g. lightning). This involves no risk of damage. Switch off the electricity supply to the hood and reconnect after one minute.

  • Page 8: Before You Start

    Before you start Things to check before you start To avoid the risks that are always present when you use an electrical appliance it is important that this cooker hood is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners.
  • Page 9 Before you start Accessories not supplied Recirculation ATFILT3 for 60cm product; Steel fixed wire ATFILT4 for 90cm product. CARBON FILTER ORDERING HOTLINE 0344 800 1128 (UK) 014475261 (IE)

  • Page 10: In More Detail

    Operation Product functions • This appliance extracts the air of the kitchen to remove the odours and keep an optimum level of air quality inside the room, it also allows you to illuminate the cooking area. Switching on/off • Switch on the appliance at the switched fused connection unit. The appliance is ready for use.

  • Page 11: Care And Maintenance

    Carbon fi lter m at Steel fixed w ire 60cm product: 3pcs 90cm product: 4pcs 1 X ACTIVE CHARCOAL FILTER MAT(SUPPLIED). MODEL NUMBER: ATFILT3 for 60cm product; ATFILT4 for 90cm product. CARBON FILTER ORDERING HOTLINE 0344 800 1128 (UK) 014475261 (IE)
  • Page 12 Care and maintenance Active charcoal filter replacement 1 MONTH Active charcoal filters: Replace every 3 months. 3 MONTH Note: 1. Please do not put anything which can block the up & down of the hood to avoid the damage of the hood and body injury. 2.Please keep the power off when clean the hood.

  • Page 13: Troubleshooting

    Troubleshooting Troubleshooting Hood doesn’t No power supply. Check the plug. work. Check the main switch. Aluminum grease filters Clean the filters. See Care and Poor airflow are dirty. maintenance section. Motor running, Repair to be carried out by Butterfly valve jammed. but no airflow qualified service personnel only.

  • Page 14: Recycling And Disposal

    Recycling and disposal Technical and legal information Recycling and disposal Environmental protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. The symbol on the product or its packaging indicates that this product cannot be treated as normal household waste.

  • Page 15: Technical And Legal Information

    Technical and legal information Wiring All installation work must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate. WARNING: THIS APPLIANCE MUST BE EARTHED. Mains Supply could be connected to the Mains Voltage by Direct Connection DOUBLE POLE SWITCHED FUSED SPUR OUTLET...
  • Page 16 Technical and legal information Technical and legal information The Manufacturer declines all liability for damage caused to persons and objects due to incorrect or improper installation of the appliance. Electrical Requirements Any permanent electrical installation must comply with the latest I.E.E. regulations and local electricity company regulations.
  • Page 17 Installation VENT PACK Ø150mm VENT PACK Ø150mm DUCTED OPTION RECIRCULATION OPTION For Gas hobs 65-80mm For Electric hobs >40mm Mark and cut a hole in the worktop using the dimensions shown above. (Unit: mm)
  • Page 18 Put the hood into the hole of the cabinet slowly. Use screws and fixing bracket to fix the hood. For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual. Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
  • Page 19 [09] Connect the casing and hood. The wind direction are up, down, left, right, the user can select according to the space of the cabinet. Ensure the external vent outlet has some form of backdraft shutter i.e. gravity flaps to prevent air blowing back into the room. [08] x 1 VENT PACK Ø150mm [10] x 1...
  • Page 20 Plug in the cooker hood and fix the decorative glass. For recirculating option refer to Care and maintenance section. Note: For electrical connection see Technical and legal information section. Note: Do not touch the decorative front glass panel during or after the operation of the hood to avoid burns.
  • Page 21 Appendix... Information for EU66 (A)Information of the cooker Hood Symbo l Valu e Unit UBDDGS60ABK Model identification Annual Energy Consumption kWh/a 52.4 hood Time increase factor Fluid Dynamic Efficiency 26.0 hood Energy Efficiency Index 61.2 hood Measured air flow rate at best 272.8 efficiency point Measured air pressure at best...
  • Page 22 Appendix... Information for EU66 (A)Information of the cooker Hood Symbo l Valu e Unit UBDDGS90ABK Model identification Annual Energy Consumption kWh/a 48.2 hood Time increase factor Fluid Dynamic Efficiency 28.0 hood Energy Efficiency Index 56.8 hood Measured air flow rate at best 285.7 efficiency point Measured air pressure at best...
  • Page 24 Apelson Appliances UK Limited Unit 3 Normandy Landings Pope St Castleford WF6 2AG...
