Summary of Contents for Apelson DDCH90SS

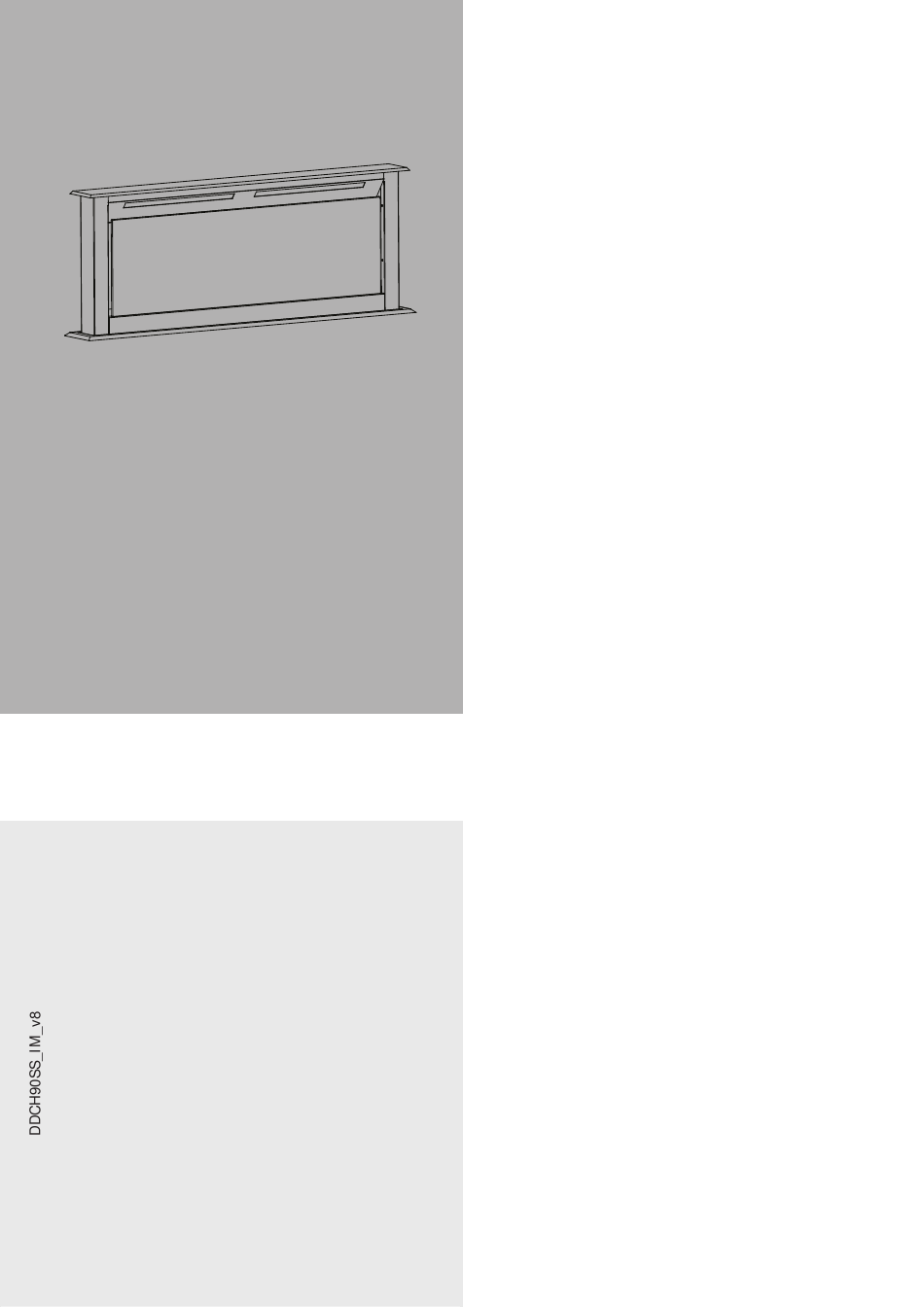

- Page 1 USER MANUAL DDCH90SS DOWN-DRAFT HOOD Customer Care 0344 800 1128...
-
Page 2: Table Of Contents
If in doubt, do not use the when you move house, make sure you also pass on this appliance but contact Apelson on 0344 800 1128. manual so that the new owner can become familiar with Decide on the appropriate location for your product. -
Page 3: Safety Information
IMPORTANT INFORMATION DDCH90SS SAFETY INFORMATION These instructions are for your safety. Please read through them thoroughly prior to installation and retain them for future reference. • All installation work must be carried out by a competent person or qualified electrician. - Page 4 IMPORTANT INFORMATION DDCH90SS • Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules. An all-pole disconnection switch having a contact separation of at least 3mm in all poles should be connected in fixed wiring.
- Page 5 IMPORTANT INFORMATION DDCH90SS Warning: Consult local regulations regarding fumes outlets. Do not connect the hood to a fume, ventilation or hot air duct. Confirm that room ventilation is appropriate with the local authorities. Make sure the maximum air extraction flow rate for the appliances in the room does not exceed 4 Pa (0.04 mbar).
-
Page 6: Environment Information
IMPORTANT INFORMATION DDCH90SS ENVIRONMENTAL INFORMATION TECHNICAL AND LEGAL INFORMATION Waste electrical products should not be disposed of TECHNICAL INFORMATION: with household waste. Please recycle where facilities Power supply: 220-240V~, 50Hz exist. Check with your Local Authority or retailer for Power consumption - Fan: 198W recycling advice. -
Page 7: Your Hood
YOUR HOOD DDCH90SS YOUR HOOD CONTROL PANEL Light on and off Extractor fan speed ‘+’ button Extractor fan speed ‘-’ button t f i outlet will lift or go down depending on the starting Digital display position... -
Page 8: Accessories Not Supplied
FIRST USE/SETTING UP YOUR HOOD DDCH90SS We recommend that you read the instructions in this owner’s manual carefully before use for the best performance and to extend the life of your appliance, as it will provide you with all the instructions you require to ensure its safe installation, use and maintenance. -
Page 9: Care And Maintenance
CARE AND MAINTENANCE DDCH90SS ALUMINIUM FILTERS WARNING DOUBLE POLE SWITCHED FUSED SPUR OUTLET Always switch off the electricity supply before performing maintenance work. In the event of a FUSE fault, contact customer services. USE A 30 AMP FUSE improve the cleaning process. -
Page 10: Installation
INSTALLATION DDCH90SS Insert the hood body into cabinet slowly. provided must install the appliance. The manufacturer declines all responsibility for improper installation, which may harm persons and animals and damage property. CAUTION The power supply to the appliance must be switched off before any adjustments or maintenance work is undertaken. - Page 11 INSTALLATION DDCH90SS Fix the bracket onto the cabinet using 8 screws. Fix the power box using four screws and connect the wire accordingly IMPORTANT Do not need to fix the top two brackets if the cabinet is not wood based .
- Page 12 INSTALLATION DDCH90SS ELECTRICAL REQUIREMENTS Any permanent electrical installation must comply with the latest I.E.E. Regulations and local electricity company contractor who is on the roll of the National Inspection Council for Electrical Installation Contracting (NICEIC) should undertake the electrical installation.
-
Page 13: Troubleshooting
TROUBLESHOOTING DDCH90SS FAULT CAUSE SOLUTION Check the plug Hood doesn’t work No power supply Check the main switch Contact customer service. High temperature safety device activated the manufactures instructions After running for a while, motor stop working Distance between the cooker hood... -
Page 14: Information For Eu66
INFORMATION FOR EU66 DDCH90SS (A)Information of the cooker Hood Symbol Value Unit Model identification DDCH90SS Annual Energy Consumption 60.5 kWh/a hood Time increase factor Fluid Dynamic Efficiency 15.6 hood Energy Efficiency Index 77.5 hood Measured air flow rate at best 312.8... -
Page 15: Useful Contacts
USEFUL CONTACTS DDCH90SS USEFUL CONTACTS TECHNICAL SUPPORT Apelson Appliances UK LTD Phone: 0344 800 1128 Email: uksupport@apelson.co.uk Web: www.spareszone.co.uk SPARES Apelson Appliances UK LTD Phone: 0344 800 1128 Email: uksupport@apelson.co.uk Web: www.spareszone.co.uk SERVICE AND GUARANTEE Apelson Appliances UK LTD Phone: 0344 800 1128 Email: uksupport@apelson.co.uk... - Page 16 APELSON APPLIANCES UK LTD Unit 3 Normandy Landings Pope St Castleford WF6 2AG...
