Bassett INSPIRED NAVARRE BP-NAVLC Assembly Instructions

Lounge chair

Item# BP-NAVLC

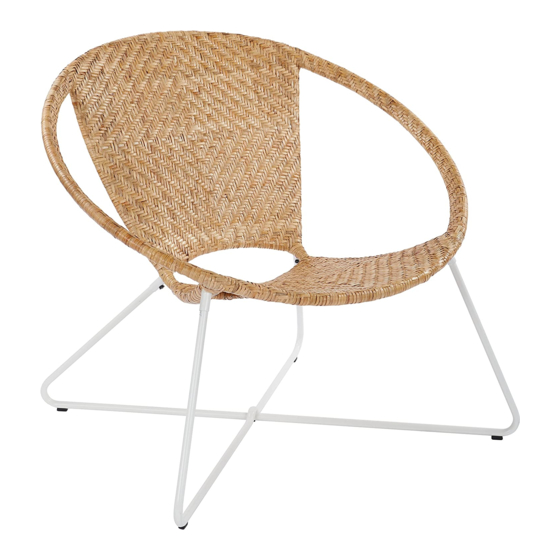

NAVARRE LOUNGE CHAIR

ASSEMBLY INSTRUCTIONS

IF PARTS ARE MISSING OR DAMAGED, DO NOT RETURN TO STORE

To order missing or replacement parts, contact us via e-mail parts@officestar.net, by Fax 1-909-930-5629, or toll free parts

number 1-800-950-7262, Monday through Friday 8:00 a.m. - 5:00 p.m. Pacific Time.

Table of Contents

Need help?

Do you have a question about the INSPIRED NAVARRE BP-NAVLC and is the answer not in the manual?

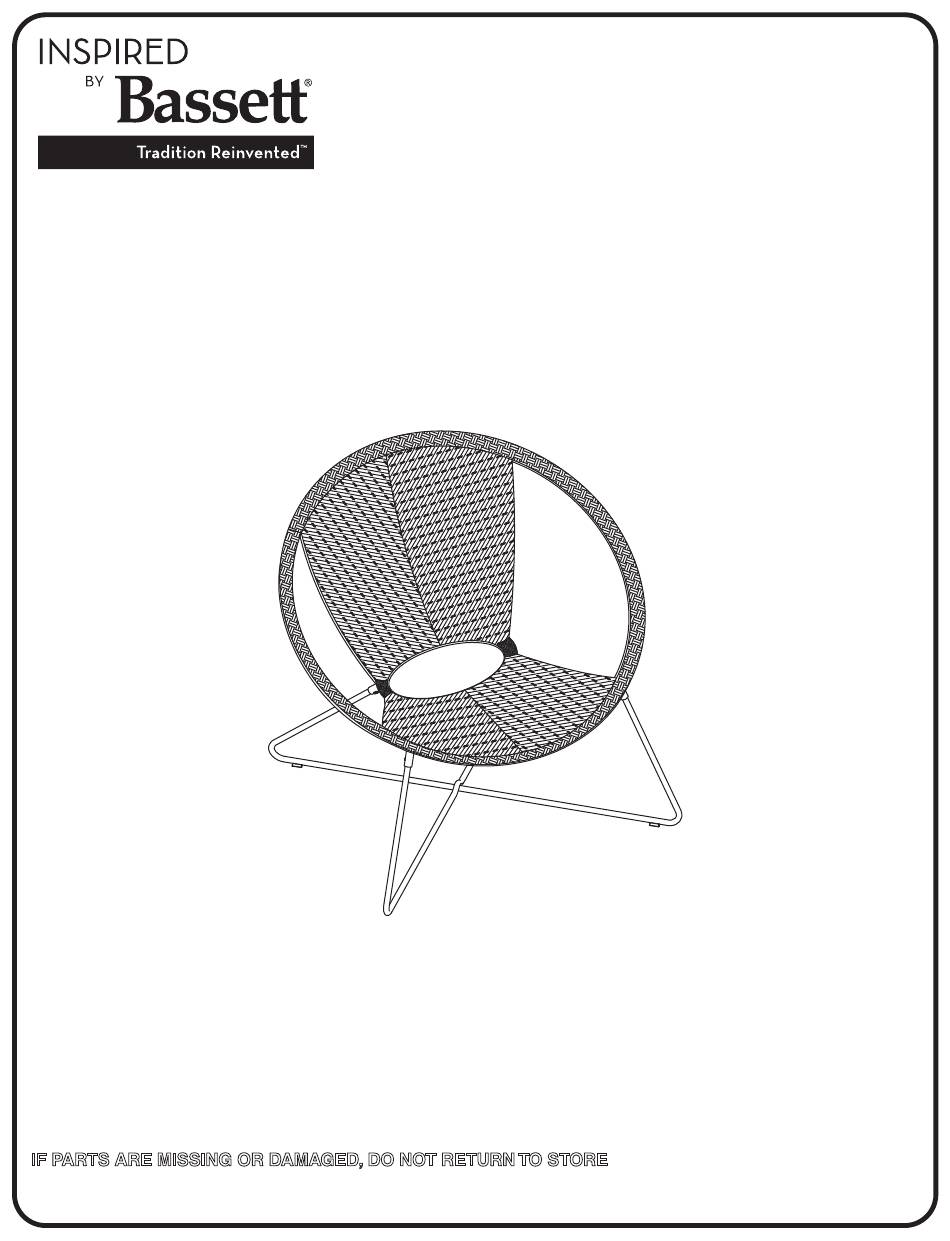

Page 1 Item# BP-NAVLC NAVARRE LOUNGE CHAIR ASSEMBLY INSTRUCTIONS IF PARTS ARE MISSING OR DAMAGED, DO NOT RETURN TO STORE To order missing or replacement parts, contact us via e-mail parts@officestar.net, by Fax 1-909-930-5629, or toll free parts number 1-800-950-7262, Monday through Friday 8:00 a.m. - 5:00 p.m. Pacific Time.
Page 2 To make a warranty claim, contact Customer Service, provide model number, sales receipt and description of the problem. It is the customer’s responsibility to prepay freight on any components returned to the factory. INSPIRED by Bassett will pay return freight on ®...
Page 3 PARTS LIST (2) Left Leg (1 PC) (1) Seat (1 PC) (3) Right Leg (1 PC) HARDWARE LIST DRAWING DESCRIPTION SIZE QTY. 1/4’’ x 2/5’’ 4 PCS Bolt 1/4’’ x 2/5” Screw Sleeve 1 PC & 2/5” x 1/2” Lock Washer 1/4”...
Page 4 STEP 1: Place Seat (1) upside on a soft non-marring surface. Insert Left Leg (2) into Seat (1). STEP 2: Insert Right Leg (3) into Seat (1). Secure Legs (2 & 3) to Seat (1) using four Lock Washers (C) and four Bolts (A). FULLY TIGHTEN BOLTS (A) USING ALLEN WRENCH (D).
