Anritsu WiMAX IQproducer MG3700A Product Introduction

Vector signal generator
Hide thumbs Also See for WiMAX IQproducer MG3700A:
Table of Contents

Advertisement

Quick Links

Download this manual
Product Introduction
MX370105A
TM
Mobile WiMAX IQproducer

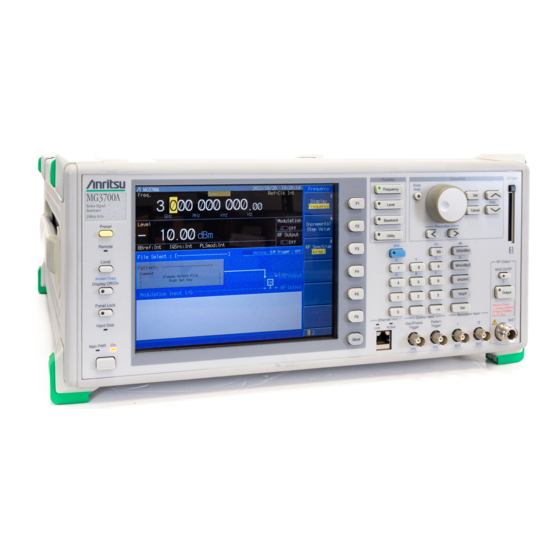

MG3700A
Vector Signal Generator

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WiMAX IQproducer MG3700A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Anritsu WiMAX IQproducer MG3700A

Summary of Contents for Anritsu WiMAX IQproducer MG3700A

  • Page 1 Product Introduction MX370105A Mobile WiMAX IQproducer MG3700A Vector Signal Generator...
  • Page 2 For MG3700A Vector Signal Generator MX370105A Mobile WiMAX IQproducer Product Introduction V3.00 ANRITSU CORPORATION Slide 1 MX370105A-E-L-1 Ordering Information Model/ Remarks Name Order No. — Mainframe — Indispensa MG3700A Vector Signal Generator bility — Options — MG3700A-001 Rubidium Reference Oscillator Aging rate: ±1 ×...
  • Page 3 What is Mobile WiMAX IQproducer? The MX370105A Mobile WiMAX IQproducer is GUI-driven PC application software for setting parameters and generating waveform patterns in accordance with the IEEE802.16e-2005 Wireless MAN-OFDMA MAC/PHY standard. Parameters are set freely at the PC to generate waveform data. The generated waveform data is transferred to the MG3700A using a Compact Flash card or via a LAN and the MG3700A main frame outputs the required waveform by selecting the waveform data.

  • Page 4: Table Of Contents

    Operation Image Setup Slide 6 Starting IQproducer Slide 7 IQproducer Main Screen Slide 7 Editing Parameters Slides 8-16 Generating Waveforms Slide 17 Transferring Waveform Pattern Slides 18-19 Outputting Waveform Pattern Slide 20 Saving/Recalling Parameters Slide 21 Receiver Requirement Test of IEEE802.16e Standard Slide 23 Merits Slides 24-32...

  • Page 5: Starting Iqproducer

    Starting IQproducer Start IQproducer as follows: Start > Programs > Anritsu Corporation > IQproducer for MG3700A Main screen Start IQproducer Main Screen When IQproducer starts, the following screen is displayed. Choose Mobile WiMAX from the [System] pull-down menu. Slide 7...

  • Page 6: Slide 9

    Editing Parameters: MIMO Function The following MIMO parameter can be set on the Main screen. MIMO can be set using STC/MIMO of Downlink_Zone by the setting Number of Tx Antennas in Common parameters to 2. Either Matrix A or Matrix B can be selected. [Reference] MIMO Description in WiMAX Forum material.

  • Page 7: Slide 11

    Editing Parameters: Ranging, Fast-Feedback The Ranging and Fast-Feedback parameters can be set at Uplink_Zone on the Main screen. Settings • Initial/Handover Ranging Region • Initial/Handover Ranging Burst • BW Request/Periodic Ranging Region • BW Request/Periodic Burst • Fast-Feedback Region • Fast-Feedback Burst Initial/Handover Ranging Region, Burst BW Request/Periodic...
  • Page 8 Editing Parameters: Segment Edit Screen 1/4 Excellent Operability 1 < > The magnified or reduced Zone or Burst can be edited using the mouse cursor. Segment Edit Screen Segment Edit Screen Click with mouse. Magnified/Reduced Slide 13 MX370105A-E-L-1 Editing Parameters: Segment Edit Screen 2/4 Excellent Operability 2 <...
  • Page 9 Editing Parameters: Segment Edit Screen 3/4 Excellent Operability 3 < > Parameters for the clicked area are displayed on the Main screen. Click with mouse. Parameters for selected item displayed on Main screen Slide 15 MX370105A-E-L-1 Editing Parameters: Segment Edit Screen 4/4 Excellent Operability 4 <...

  • Page 10: Slides

    Generating Waveform: Calculation Clicking the [Calculation] icon starts creating the waveform pattern after parameter setting. It also creates a file for saving the waveform pattern in following path: C:¥Program Files¥Anritsu Corporation¥IQproducer¥MWiMAX¥Data Calculation: Creates waveform Calculation: Creates waveform pattern pattern Name of waveform pattern package: (31 characters max.)

  • Page 11: Slide 20

    Transferring Waveform Pattern Select waveform pattern to transfer to HDD of MG3700A. Select when loading waveform pattern into memory at same time as transferring. Start transfer. Slide 19 MX370105A-E-L-1 Outputting Waveform Pattern (When waveform pattern not loaded into memory as shown on previous page) [Expanding waveform pattern from HDD to memory] (1) Baseband (2) F1: Load Pattern to Memory...
  • Page 12 Saving/Recalling Parameters The numerical values and settings for each item can be saved as a parameter file for instant recall. Recall Save Recall Save File Save Screen File Recall Screen Slide 21 MX370105A-E-L-1 MG3700A Vector Signal Generator & MX370105A Mobile WiMAX IQproducer Slide 22 MX370105A-E-L-1...
  • Page 13 Receiver Requirement Test of IEEE802.16e Standard The IEEE802.16e measurement items in clause 8.4.13 are as follows: Item Measurement Item Outline Support 8.4.13.1.1 Receiver sensitivity - BER <D610^6 OK One MG3700A unit can - Add AWGN generate wanted signal and - Repeated fixed pattern (SQPSK, S16QAM, AWGN/BER can be measured S64QAM) defined for each modulation type for fixed data with BER option.
  • Page 14 [Merit 1] Wanted Signal + Interference Signal Common Parameters When using as wanted signal + interference signal: When Bandwidth = 10 MHz to 28 MHz, Set “Oversampling Ratio" to "4" or “8". Setting the Oversampling Ratio to 2 does not provide a sufficient frequency offset when a bandwidth of 10 MHz to 28 MHz is used as the wanted signal + interference signal.
  • Page 15 [Merit 2] BER Measurement using Test Message 2/6 MG3700A-031 High-speed BER test function supports the BER measurement that uses test message of WiMAX. The figure below shows the BER measurement screen of MG3700A. MG3700A BER Measurement Screen MG3700A BER Setting Screen Measurement using test messages is performed by selecting User Define in When F3: Load User Pattern is clicked, the pattern...
  • Page 16 [Merit 2] BER Measurement using Test Message 4/6 High-Speed BER Test Function (MG3700A-031) 1/3 BER Equipment feature upgrades, such as extension of input bit rate range, by adding optional BER equipment. Comparison of standard BER measurement function and option BER measurement function This can be us ed for WLAN and next-generation high- 1 Kbps to 20 Mbps 100 bps to 120 Mbps...
  • Page 17 [Merit 2] BER Measurement using Test Message 6/6 High Speed BER Test Function (MG3700A-031) 3/3 Remote command compatibility Standard BER MG3700A-031/131 Measurement Function Command High Speed BER Test Function F+E32unction (Ver. 2.02 or later) BER Measurement Commands Clear BER Measurement Bit Count BERCOUNTCLR SyncLoss Count BERSYNCLOSS?
  • Page 18 Appendix MX370105A Mobile WiMAX IQproducer Parameter Setting Range Slide 33 MX370105A-E-L-1 Parameter Setting Range 1/10 Common Parameter Setting Range: Frame Duration = Tree Items Setting range Continuous Common Number of Tx Antennas 1, 2 Number of Frames 1 to Maximum number of Frame saved in MG3700A ARB memory Cannot be set.
  • Page 19 Parameter Setting Range 2/10 Common Parameter Setting Range: Frame Duration = Tree Items Setting range Continuous Filter Filter Type Non, Gaussian, Root Nyquist, Nyquist, Ideal Roll Off/BT 0.1 to 1.0: Cannot be set when Filter Type = Non, Ideal. Filter Length 1 to 1024: Cannot be set when Filter Type = Non, Ideal.
  • Page 20 Parameter Setting Range 4/10 Downlink [PHY/MAC] Parameter Setting Range: Tree Items Settign range Downlink MAC Massage Data Status Enable, Disable DL-MAP Data Status Enable, Disable DL-MAP Type 16 bit repeat, PN9fix, PN15fix, S_QPSK, S_16QAM, S_64QAM, DL-MAP, Compressed DL-MAP, User File (Compressed DL-MAP can not be changed when UL-MAP is added to MAC Message, .
  • Page 21 Parameter Setting Range 6/10 Downlink [PHY/MAC] Parameter Setting Range: Tree Items Settign range Zone # DL-Burst 0 to 15 MAC PDU Data Status Enable, Disable 0 to 31 MAC PDU Length Display only Payload Data Length 0 to 2041 byte (when CI = No CRC) 0 to 2037 byte (when CI = With CRC) 0 to 2047 byte (when CI = Without Header &...
  • Page 22 Parameter Setting Range 8/10 Uplink [PHY/MAC] Parameter Setting Range: Tree Items Settign range Uplink Data Status Enable, Disable Zone 0 to 7 Data Status Enable, Disable Permutation PUSC, PUSC(w/o SC rotation), AMC(6x1), AMC(3x2), AMC(2x3), AMC(1x6) STC/MIMO Display only OFDMA Symbol Offset 0 to 255 symbol (at Zone#0: 0) No.
  • Page 23 Parameter Setting Range 10/10 Uplink [PHY/MAC] Parameter Setting Range: Tree Items Settign range Zone 0 to 7 Data Status Enable, Disable Request/Perio OFDMA Symbol Offset "OFDMA Symbol Offset at Zone" to 255 symbol dic Ranging OFDMA Subchannel Offset 0 to 126 (when PUSC and PUSC(w/o SC rotation)) Region 0 to 120 (without PUSC and PUSC(w/o SC rotation)) No.
  • Page 24 • Anritsu Corporation Italy India 5-1-1 Onna, Atsugi-shi, Kanagawa, 243-8555 Japan Anritsu S.p.A. Anritsu Pte. Ltd. Phone: +81-46-223-1111 Via Elio Vittorini 129, 00144 Roma, Italy India Branch Office Fax: +81-46-296-1264 Phone: +39-6-509-9711 Unit No. S-3, Second Floor, Esteem Red Cross Bhavan, •...
