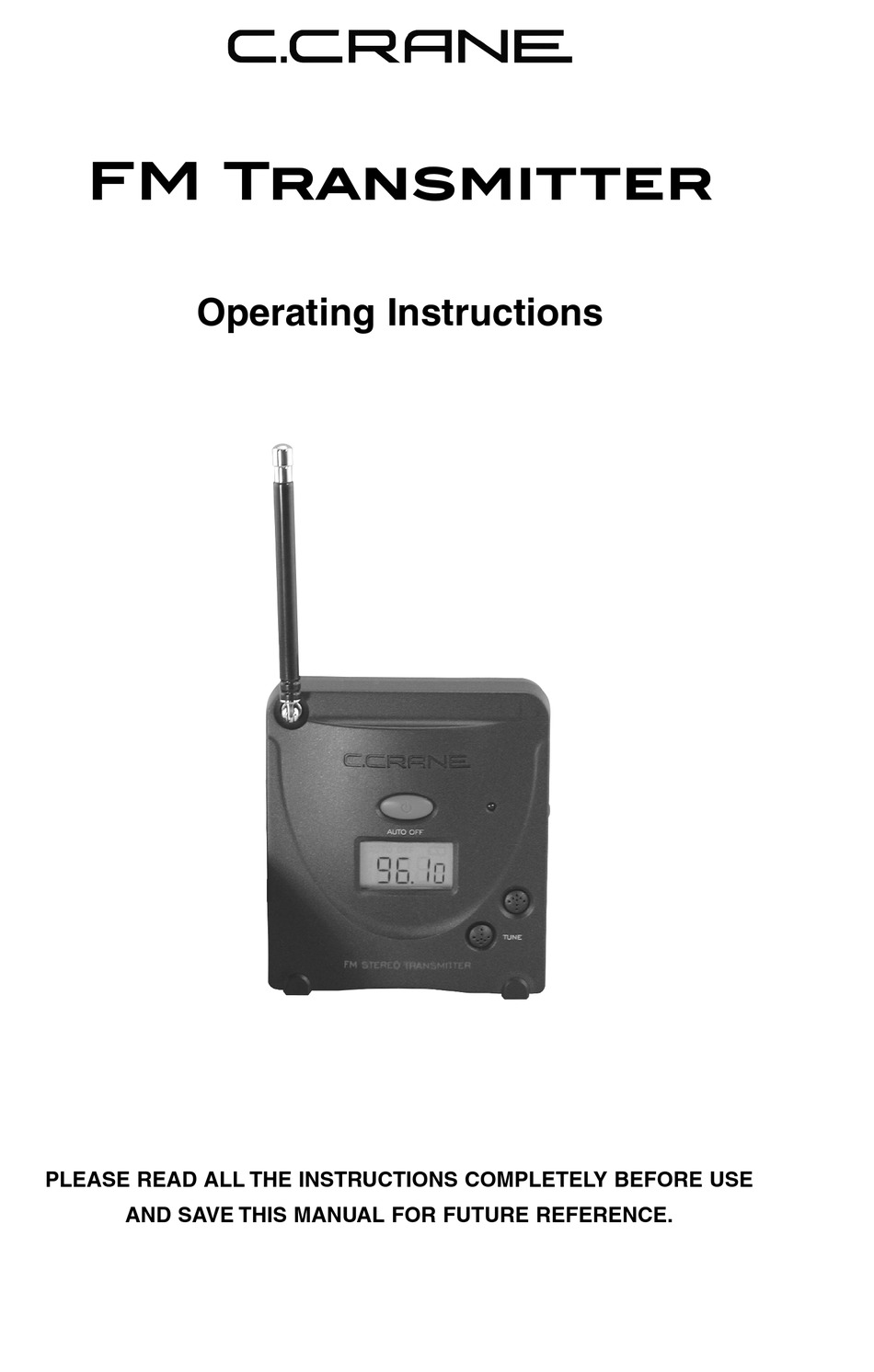

Page 1: Operating Instructions
FM Transmitter Operating Instructions PLEASE READ ALL THE INSTRUCTIONS COMPLETELY BEFORE USE AND SAVE THIS MANUAL FOR FUTURE REFERENCE. -
Page 2: Before Use
5 Volt Power Adapter, and Cigarette Lighter Splitter. Patent #US D483,024 S Copyright © 2004 by C. Crane Company, Inc., Fortuna, CA 95540 Phone: 1-800-522-8863 All rights reserved. No part of this booklet may be reproduced, in any form or means whatsoever, without permission in writing from C. -
Page 3: Table Of Contents
Table of Contents Introduction ... 4 Audio Sources ... 4 Location of Controls ... 6 Connection to Power ... 7 Battery Installation ... 7 Tuning ... 8 Tips to Make It Work Better ... 9 Troubleshooting Guide ... 10 Safety Instructions ... 13 Service Information ... -
Page 4: Introduction
Introduction Thank you for purchasing the FM Transmitter. It transmits high-fidelity audio from any audio source such as Computer, TV, or CD player to any FM radio receiver. Superior engineering and construction tech- niques were used to bring you the highest quality FM transmitter possi- ble. - Page 5 Audio Sources (Cont.) FM Transmitter From MP3 to a radio: Connect the plug that is attached to the FM Transmitter to the Line Out or headphone jack of the MP3 player. Tune your radio or car stereo to the transmitting frequency. From a portable radio to a pocket radio: Connect the plug that is attached to the FM Transmitter to the Line Out or...
-
Page 6: Location Of Controls

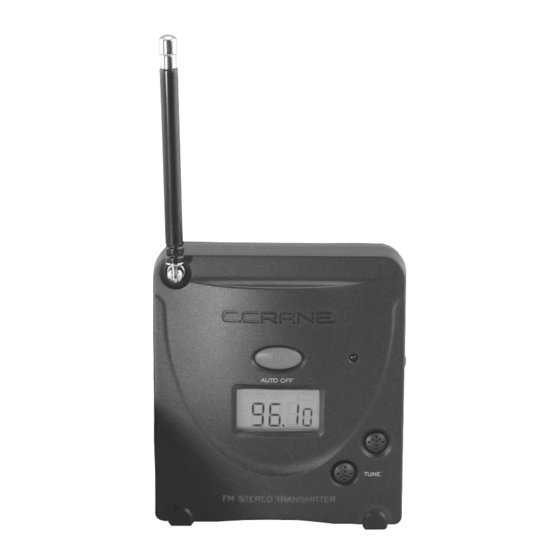

Location of Controls 1) Power Button/Timer 2) Audio Input Indicator 3) Input Level Control 4) Up/Down Tuning Page 6 Control Identification 5) Frequency Display 6) DC Input Jack 7) Telescopic Antenna FM Transmitter... -
Page 7: Connection To Power
Connection to Power The FM Transmitter will operate on the included AC adapter. It will also operate on (2) “AA” size Alkaline batteries. Battery Installation 1) Open the cover by pushing down on the textured tab firmly and pushing the cover off toward the side of the unit, the same direction the textured arrow is pointing. -
Page 8: Tuning
Tuning To transmit audio from the FM Transmitter, it is best to find a clear FM frequency that is not being broadcast on and free from interference. 1) Start with a radio and scan through the entire FM band (using a digital radio will be easiest). -
Page 9: Tips To Make It Work Better
Tips To Make It Work Better Location Optimum placement for the FM Transmitter is usually away from other electronic devices and objects. The higher the transmitter is located the better. The transmitter can be helped by placing it on something that will act as a ground plane like a metal filing cabinet or a refrigerator. -
Page 10: Troubleshooting Guide
Trouble Shooting Guide Audio is distorted: Try adjusting the input level on the side of the FM Transmitter (see page 8, #3). If that doesn’t help, try adjusting the volume of your audio source. No Audio: 1) Verify that the power on the FM Transmitter, your audio source, and your receiver is on. - Page 11 Location / Frequency Log If you use the FM Transmitter in multiple locations, this log will help you remember the different frequency settings. Location Frequency FM Transmitter Page 11...
- Page 12 Notes Page 12 FM Transmitter...
-
Page 13: Safety Instructions
Safety Instructions READ BEFORE OPERATING EQUIPMENT Read and understand all safety and operating instructions before the FM Transmitter is operated. Retain Instructions: The safety and operating instructions should be retained for future reference. Heed Warnings: All warnings on this appliance and all operating instructions should be followed. - Page 14 Safety Instructions If the transmitter is stored for long periods of time, unplug it from the wall outlet and remove the batteries. This will prevent damage caused by lightning or power line surges and battery acid from old batteries leaking inside of the transmitter. Never attempt to service the FM Transmitter yourself.
-
Page 15: Service Information
Service Information If your unit requires service call C. Crane Company at 1-800-522-8863. FM Transmitter Warning: To reduce the risk of fire or shock hazard, do not expose this product to rain or moisture. - Page 16 Model: FM TRANSMITTER THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS. 1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
