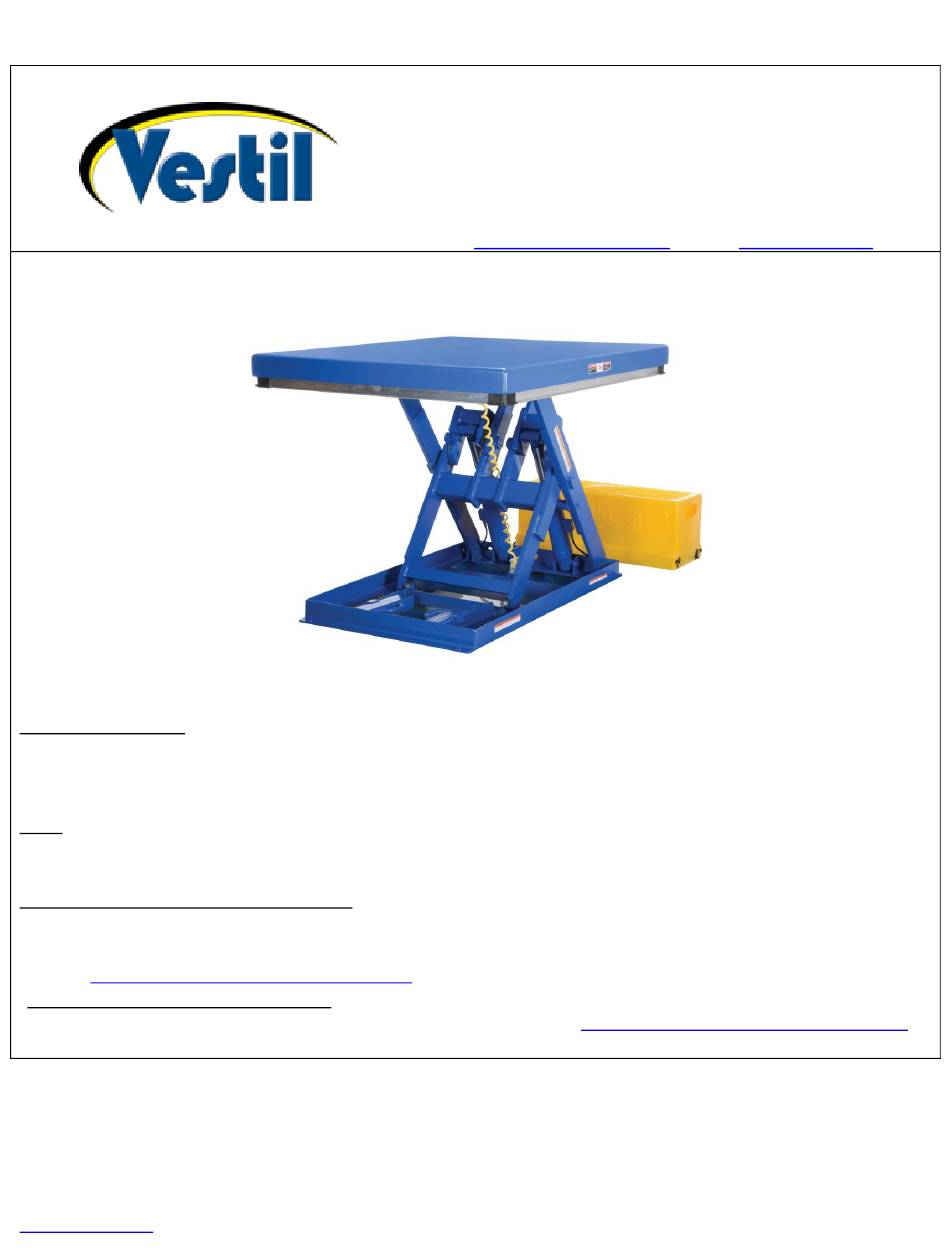

Operator's Manual

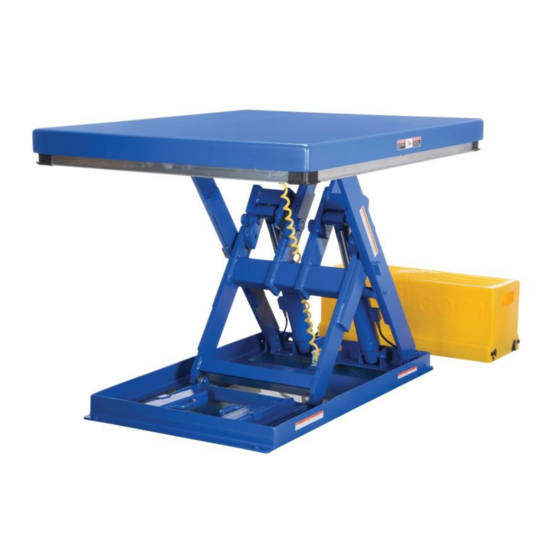

EHLTX-Series Low Profile Electric Hydraulic Scissors Lift Table
Receiving instructions:
After delivery, remove the packaging from the product. Inspect the product to determine whether it sustained
damage during transport. If damage is discovered, record a complete description of it on the bill of lading and file a claim
with the carrier immediately! If the product is undamaged, discard the packaging.
NOTE:
The end user is solely responsible for confirming that product design, use, and maintenance comply with laws,
regulations, codes, and mandatory standards applied where the product is used.
Replacement Parts and Technical Assistance:
If you have questions that are not addressed in these instructions, or to order replacement parts, labels, and
accessories, call (260) 665-7586 and ask for the Service and Parts Department. You can also reach Service and Parts
online at http://www.vestilmfg.com/parts_info.htm.
Electronic Copies of Instruction Manuals:
Additional copies of this instruction manual may be downloaded from https://www.vestil.com/page-manuals.php.
Table of Contents
2/2/21
Vestil Manufacturing Corp.
A company dedicated to solving loading dock and material handling
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free: (800) 348-0868
http://www.vestil.com/
Instruction Manual
Model EHLTX-3-39
Copyright 2021, Vestil Manufacturing Corp.
EHLTX, MANUAL.DOCX
problems since 1955.
Fax: (260) 665-1339
email:
info@vestil.com
Page 1 of 32

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EHLTX-Series and is the answer not in the manual?

Questions and answers

Related Manuals for Vestil EHLTX-Series

Summary of Contents for Vestil EHLTX-Series

  • Page 1 (260) 665-7586 and ask for the Service and Parts Department. You can also reach Service and Parts online at http://www.vestilmfg.com/parts_info.htm. Electronic Copies of Instruction Manuals: Additional copies of this instruction manual may be downloaded from https://www.vestil.com/page-manuals.php. Table of Contents Copyright 2021, Vestil Manufacturing Corp.

  • Page 2: Signal Words

    HAZARDS Vestil Manufacturing strives to identify all foreseeable hazards associated with the use of its products. However, material handling is dangerous and no manual can address every risk. The end user is ultimately responsible for exercising sound judgment at all times in the use of this product.
  • Page 3 Periodically lubricate pivot points with bearing grease.  Keep the product dry and clean at all times. Always use this product indoors.  Use only factory-approved replacement parts. Contact Vestil Manufacturing to order replacement or spare parts.  Contact the manufacturer for SDS information.

  • Page 4: Item Description

    EXPLODED PART VIEWS AND BILLS OF MATERIAL EHLTX Top-Level Bill of Materials ITEM DESCRIPTION BASE ASSEMBLY PLATFORM PERIMETER TOE GUARD ASSEMBLY POWER UNIT * See separate illustrations and tables for detailed parts lists Table of Contents Copyright 2021, Vestil Manufacturing Corp. Page 4 of 32...
  • Page 5 Operator’s Manual 2/2/21 EHLTX, MANUAL.DOCX Table of Contents Copyright 2021, Vestil Manufacturing Corp. Page 5 of 32...
  • Page 6 Operator’s Manual 2/2/21 EHLTX, MANUAL.DOCX Table of Contents Copyright 2021, Vestil Manufacturing Corp. Page 6 of 32...
  • Page 7 EXTERNAL RETAINING RING, PHOSPHATE FINISH, 1 1/8" 1.1.23 428277 3/4sz EXTERNAL HEAVY DUTY SPIRAL RING 1.1.24 27-612-006 WELDMENT, PIN, DECK HINGE 27-537-003 WELDMENT, MAIN. PROP 01-531-002 VELOCITY FUSE, 2 GPM Table of Contents Copyright 2021, Vestil Manufacturing Corp. Page 7 of 32...
  • Page 8 Operator’s Manual 2/2/21 EHLTX, MANUAL.DOCX Table of Contents Copyright 2021, Vestil Manufacturing Corp. Page 8 of 32...
  • Page 9 Operator’s Manual 2/2/21 EHLTX, MANUAL.DOCX Table of Contents Copyright 2021, Vestil Manufacturing Corp. Page 9 of 32...
  • Page 10 64255 Ø0.25 x 2 LG SPRING PIN 64311 PIN, SPRING Ø 3/8 X 1 1/2" LG 68021 EXTERNAL RETAINING RING, PHOSPHATE FINISH, 1-1/8" 27-612-006 WELDMENT, PIN, DECK HINGE Table of Contents Copyright 2021, Vestil Manufacturing Corp. Page 10 of 32...
  • Page 11 24008 4-40 X 1/2 BHCS 24189 8-32 FHSCS 33004 FLAT WASHER, USS, ZINC PLATED, Ø1/4" 37018 NYLON LOCK NUT,GRADE 2, ZINC FINISH,1/4"-20 * Item attaches separately to platform. Table of Contents Copyright 2021, Vestil Manufacturing Corp. Page 11 of 32...

  • Page 12: Motor Voltage

    208-230 VAC 1 Ø 99-660-159-002 (EHLTX-####-1-39, EHLTX-####-2-39) 230/460 VAC 3Ø 99-660-163-004 115 VAC 1 Ø 99-660-160-001 3000 lb, 3500 lb 208-230 VAC 1 Ø 99-660-160-002 (EHLTX-####-3-39, EHLTX-####-3.5-39) 230/460 VAC 3Ø 99-660-164-004 Table of Contents Copyright 2021, Vestil Manufacturing Corp. Page 12 of 32...
  • Page 13 Note: Overcurrent & short circuit protection and disconnect must be provided by end user. * NOTE: Pressure switch replaces limit switch in narrow-body EHLTX-####-3-39 and EHLTX-####-3.5-39 models. Pressure switch will be mounted on manifold. Table of Contents Copyright 2021, Vestil Manufacturing Corp. Page 13 of 32...
  • Page 14 Note: Overcurrent & short circuit protection and disconnect must be provided by end user. * NOTE: Pressure switch replaces limit switch in narrow-body EHLTX-####-3-39 and EHLTX-####-3.5-39 models. Pressure switch will be mounted on manifold. Table of Contents Copyright 2021, Vestil Manufacturing Corp. Page 14 of 32...
  • Page 15 Note: Overcurrent & short circuit protection and disconnect must be provided by end user. * NOTE: Pressure switch replaces limit switch in narrow-body EHLTX-####-3-39 and EHLTX-####-3.5-39 models. Pressure switch will be mounted on manifold. Table of Contents Copyright 2021, Vestil Manufacturing Corp. Page 15 of 32...

  • Page 16: Motor Lead Connections

    Polarity across the thermostat leads may be reversed. When changing the motor voltage configuration, you must also change the configuration of the control transformer to match the motor voltage. Control Voltage Transformer (01129001 Rev. G). Table of Contents Copyright 2021, Vestil Manufacturing Corp. Page 16 of 32...
  • Page 17 SHCS, 3/8 - 16 x 1 LG. LOCK WASHER, HIGH 33688 COLLAR, 3/8 WASHER, FLAT, 3/8" 96056 NOMINAL, .406" I.D., YELLOW ZINC SAE ACCESSORIES, 99-034-037 ELECTRICAL, ROMEX .375" Table of Contents Copyright 2021, Vestil Manufacturing Corp. Page 17 of 32...
  • Page 18 CHECK VALVE, SIZE 08, 99-153-011 NOSE-IN/SIDE-OUT VALVE SOLENOID, 99-153-015 STANDARD, w/o COIL 1000-lb, 2000-lb FLOW CONTROL, PRES. 99-153-039 COMP., 1.5 GPM. 3000-lb, 3500-lb FLOW CONTROL, PRES. 99-153-040 COMP., 2.0 GPM. Table of Contents Copyright 2021, Vestil Manufacturing Corp. Page 18 of 32...

  • Page 19: Hydraulic Schematic

    A cable and hose bundle, 7’-6” in length, connects the EHLTX table to the external power unit. Contact the factory if different connections are needed. Table of Contents Copyright 2021, Vestil Manufacturing Corp. Page 19 of 32...
  • Page 20 The bottom views of representative EHLTX lift tables are shown. When installing in a floor pit, provide a clearance of at least 1/4” but no more than 7/8” clearance on all sides. Consider the routing of electric and hydraulic lines when designing your pit installation. Table of Contents Copyright 2021, Vestil Manufacturing Corp. Page 20 of 32...
  • Page 21 51” 53” 3” EHLTX-5153-2-39 EHLTX-5454-1-39 43 1/4” 35 1/4” 26 3/4" 54” 54” 3 1/2" EHLTX-5454-2-39 EHLTX-5656-1-39 43 1/4” 35 1/4” 26 3/4" 56” 56” 4 1/2" EHLTX-5656-2-39 Table of Contents Copyright 2021, Vestil Manufacturing Corp. Page 21 of 32...

  • Page 22: Installation

    6. Have a qualified electrician make the permanent connection from customer’s electric supply to the power unit. Table of Contents Copyright 2021, Vestil Manufacturing Corp. Page 22 of 32...
  • Page 23 9. Clean up any debris or spilled oil. Verify that all of the information, safety, and warning labels are in good condition. ACCESSORIES Vestil offers table skirts and approach ramps as accessories for your EHLTX lift table. Accordion skirt (ACC). Accordion skirts serve both functional and safety purposes Skirts keep debris from damaging the operating mechanism, hydraulic components, and electrical parts.
  • Page 24 Purely cosmetic changes, like damaged paint or powder coat, do not constitute changes from satisfactory condition. However, touchup paint should be applied to all affected areas as soon as damage occurs. Table of Contents Copyright 2021, Vestil Manufacturing Corp. Page 24 of 32...
  • Page 25 For applications involving side or end edge loading, consult the factory. This lift table is not approved for lifting personnel. Table of Contents Copyright 2021, Vestil Manufacturing Corp. Page 25 of 32...

  • Page 26: Operation

    Technical Service can be contacted by calling (260) 665-7586 and asking for the Service and Parts Department or by submitting questions online at http://www.vestilmfg.com/parts_info.htm. Table of Contents Copyright 2021, Vestil Manufacturing Corp. Page 26 of 32...

  • Page 27: Initial Inspection

    Proper functioning of any hand- or foot-operated mechanisms. 8. Unusual noises or movement during operation. 9. Condition of all information, safety, and warning labels. These should be clean and clearly legible. Table of Contents Copyright 2021, Vestil Manufacturing Corp. Page 27 of 32...
  • Page 28 Make sure the screen filter is in place and seated at the bottom of the threads on the valve body (illustration). 11. Reinstall the solenoid valve, tightening to 20 ft-lb of torque. Reattach the solenoid coil and the retaining nut. Table of Contents Copyright 2021, Vestil Manufacturing Corp. Page 28 of 32...

  • Page 29: Troubleshooting Guide

    Fluid level in reservoir is low. fill hole with the platform in the fully lowered move. Power unit not noisy. position. Pump is failing to produce pressure. Consult factory. Table of Contents Copyright 2021, Vestil Manufacturing Corp. Page 29 of 32...
  • Page 30 Flow control valve spool sticking. “Inspection and Maintenance” section. Remove and inspect valves. Clean per instructions in Platform lowers too quickly. Flow control valve spool sticking. “Inspection and Maintenance” section. Table of Contents Copyright 2021, Vestil Manufacturing Corp. Page 30 of 32...

  • Page 31: Labeling Diagram

    To order replacement labels, contact the technical service and parts department online at http://www.vestilmfg.com/parts_info.htm. Alternatively, you may request replacement parts and/or service by calling (260) 665-7586 and asking the operator to connect you to the Parts Department. Table of Contents Copyright 2021, Vestil Manufacturing Corp. Page 31 of 32...

  • Page 32: Limited Warranty

    After Vestil receives your request for warranty service, an authorized representative will contact you to determine whether your claim is covered by the warranty. Before providing warranty service, Vestil will require you to send the entire product, or just the defective part (or parts), to its facility in Angola, IN.
