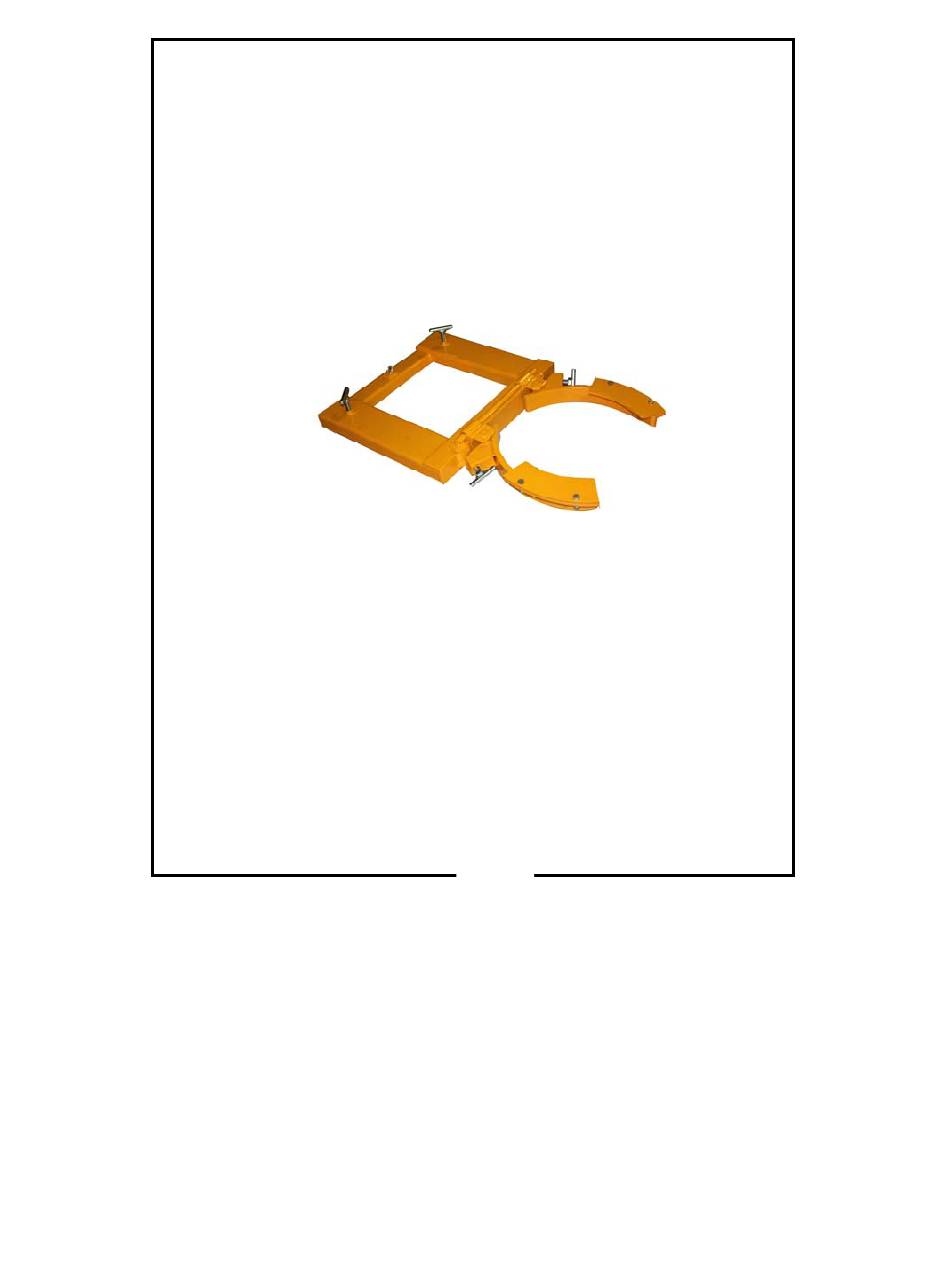

- Page 1 Instruction Manual DRUM GRAB : DGS-A-PSD ODEL UMBER Note: The Owner/Operator must read carefully and understand all the information presented here before operation.
-
Page 2: Table Of Contents
Contents Structure and relevant parts description………. Specification……………………………………… Unpacking………………………………………… General safety information……………………... Operation…………………………………………. Maintenance……………………………………… For warranty service…………………………….. For non-warranty service……………………….. - Page 3 THANK YOU FOR CHOOSING OUR DRUM GRAB. FOR YOUR SAFETY AND CORRECT OPERATION, PLEASE CAREFULLY READ THE MANUAL BEFORE USE. NOTE: All of the information reported herein is based on data available at the time of printing. The factory reserves the right to modify its own products at any time without notice or incurring in any sanction.
-
Page 4: Structure And Relevant Parts Description
1. STRUCTURE AND RELEVANT PARTS DESCRIPTION Item No. Description Remark Supportin rack Axle base Clam M20X90 T-BOLT LOAD RATING: 1500lbs/per drum, drum diameter：16⅜-24”... -
Page 5: Specification
2. SPECIFICATION Drum Fork Capacity diameter Model Drum Type Pockets weight (lbs / per drum) (Inch) (lbs) (Inch) DGS-A-P Single Drum 1500 16-23½ 3. UNPACKING When unpacking your unit, check carefully for shipping damage. If damage has occurred, file a claim with the delivering carrier within 24 hours and notify the dealer from whom the unit was purchased. -
Page 6: Operation
5. OPERATION (video clip of the operation for steel drums is available upon request) The following outlines the general operation of Drum Grabs. Differences for specific models follow this section. 1. Place unit on floor or flat surface easily accessible to fork truck. Be sure that “T”... -
Page 7: Maintenance
When jaws surround drum, raise forks until jaws rest under upper rolling rib. Drum can now be raised and moved where desired. (Fig.3) Figure 3 9. To release drums, return to floor, lowering drum grab slowly as you pull back. 10. - Page 8 NOTE: Do not send units to the factory for service without obtaining a “returned goods authorization number” from the service department. We will not be responsible for goods returned without proper authorization. This needs to be updated with detail user instructions 1.How and when to adjust the T-bolt? The T-Bolts are adjusted to the proper clamping angle because clamping different drum types requires different clamping angles and...
- Page 9 2. How to use with 30 & 55 gallon steel and plastic drums? Lifting steel drum: Remove clamping brackets. Steel drums are lifted from middle of the drum. Lifting plastic drum, install the clamping brackets. Plastic drums are lifted from under the top ring. 3.
- Page 10 (you) for warranty service. Who may request service? Only a warrantee may request service. You are a warrantee if you purchased the product from Vestil or from an authorized distributor AND Vestil has been fully paid.
