Installation Information
INSTALLATION CONSIDERATIONS
This section covers common installation issues seen by Service Technicians. Improper installation, though not a
valid service issue, has the potential to lead to a call for service. Installation related complaints could include, but
are not limited to: Unit leveling, unit movement, door misalignment, improper door and drawer sealing, internal frost
or condensation, exterior condensation, warm compartment temperatures, etc.
NOTE: If additional installation information is needed, refer to the complete Installation Guide, or contact Sub-Zero
Service Department.
UNIT COULD TIP UNDER CERTAIN LOAD CONDITIONS. FAILURE TO INSTALL ANTI-TIP COMPONENTS AND
EXTEND FRONT LEVELERS TO FLOOR ACCORDING TO INSTALLATION MANUAL CAN RESULT IN SERIOUS
INJURY OR DEATH.
Anti-Tip Components Installation (424-2)
If anti-tip bracket needs to be installed, follow these
steps (See Figure 2-1):
1. Locate and mark two wall studs at back of unit
installation location.
2. Identify and mark proper height to clear unit top.
Space between unit top and bottom of bracket must
NOT be more then 1/4" (6.1 mm)
3. Secure bracket to wall studs, located in step 1, mak-
ing sure screws extend 7/8" (22.2 mm) into each
wall stud. The bracket must extend a minimum of 3"
(76.2 mm) over unit.
4. Refer to Installation Guide provided with unit for any
additional information needed.
Anti-Tip Components Installation
(424FS-2, 427-2, 427R-2)
If anti-tip bracket needs to be installed, follow these
steps (See Figure 2-2):
1. Center anti-tip bracket at back of unit installation
location.
2. Secure bracket to wall studs or flooring, making sure
screws extend 7/8" (22.2 mm) into each wall stud or
flooring.
3. Refer to Installation Guide provided with unit for any
additional information needed.
#3758410 - Revision C - May, 2014
Wine Storage
Wine Storage
Wall Stud

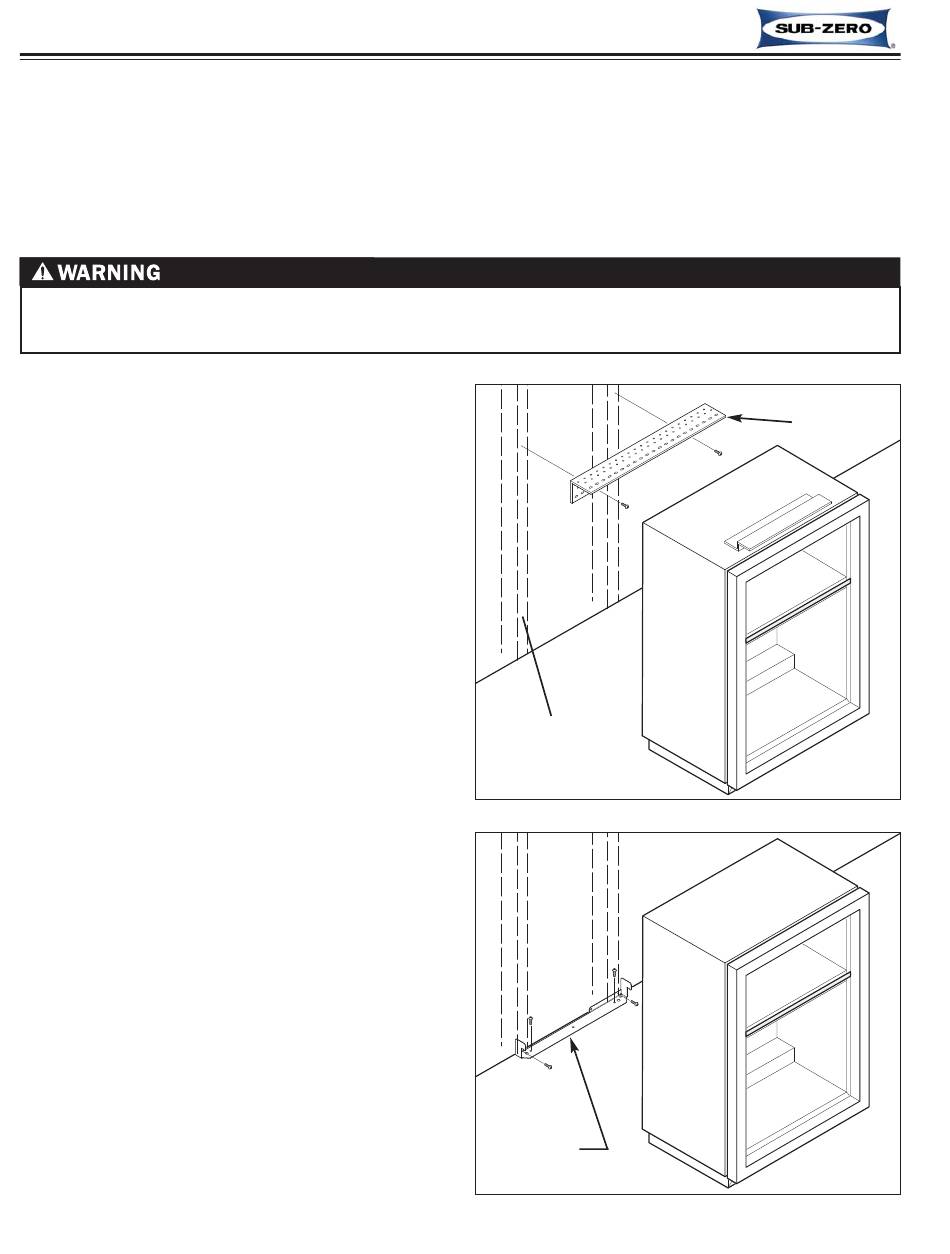

Figure 2-1. Anti-Tip Components
Bracket
Figure 2-2. Anti-Tip Components
2-2
Series
Series
2
2
(400-
)
(400-
)
Bracket
