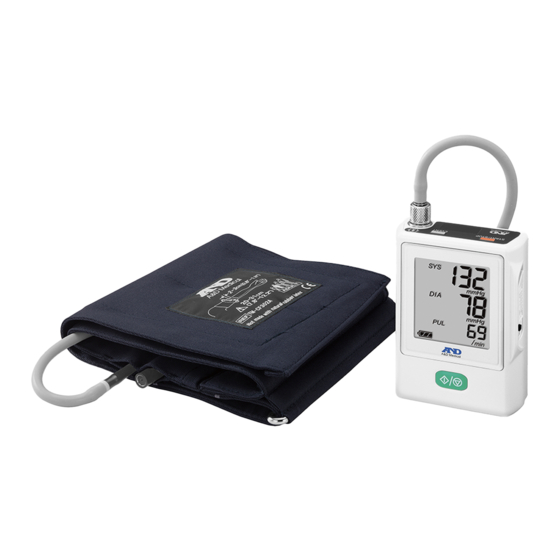

A&D TM-2440 Quick Start Manual

Ambulatory monitoring system
Hide thumbs Also See for TM-2440:
Table of Contents

Advertisement

Quick Links

A&D Ambulatory
Monitoring System
Quick Start Guide
TM-2440 and TM-2441
andmedical.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TM-2440 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for A&D TM-2440

Summary of Contents for A&D TM-2440

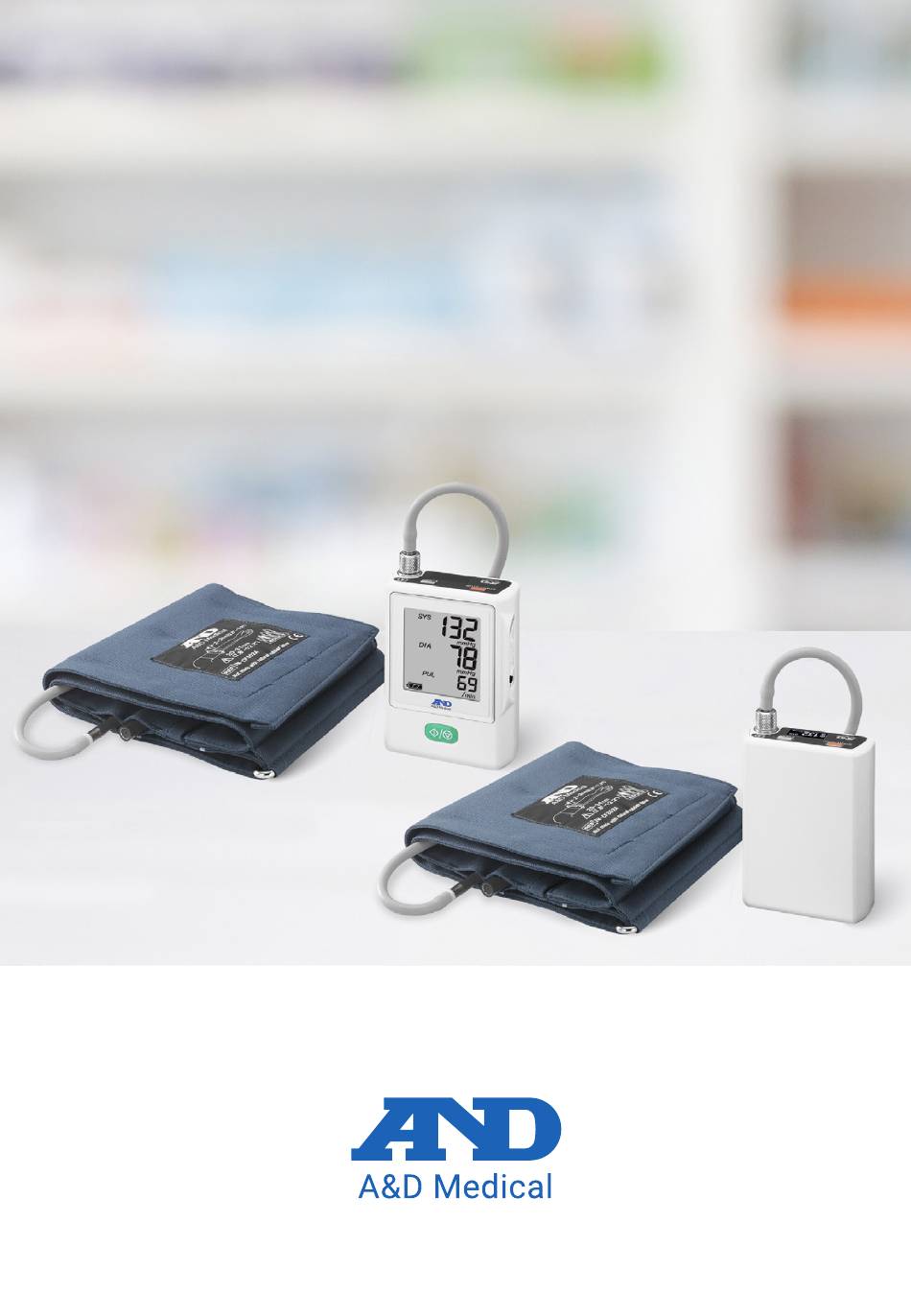

  • Page 1 A&D Ambulatory Monitoring System Quick Start Guide TM-2440 and TM-2441 andmedical.com...
  • Page 2 Step 1: Software installation 1. Insert the A&D Medical USB stick into your PC to start installation. 2. In your File Explorer, open your removable disc or USB drive. Find and open the Setup.exe application. 3. Click on Install. 4. Follow the guided instructions. This may take a few minutes. 5.
  • Page 3 3. Close the battery cover. Step 3: Connecting the monitor 1. Connect the micro USB cable between the monitor and computer. TM-2440 TM-2441 2. The buzzer will sound and OFF appears on the OLED display. The monitor enters its standby mode.
  • Page 4 4. Disconnect the micro USB cable from the device. 5. Turn the ABPM function ON. For the TM-2440 only, press and hold Event for at least three seconds. The icon should appear on the display.
  • Page 5 Step 5: Setting up the patient 1. Wrap the cuff around the patients’ upper arm (refer to below cuff guide). Have room to .5” (1-2 cm) insert two ngers Part Number Cuff Size TM-CF202A Small Cuff 5.9-8.7” (15-22 cm) TM-CF302A Medium Cuff 7.8-12.2”...
  • Page 6 1. Connect the micro USB cable between the monitor and computer. Please ensure you are using the cable that came with your monitor. TM-2440 TM-2441 2. Open the A&D Client application from your computer. 3. Click the Download icon. The download will begin.
  • Page 7 Step 7: Reviewing data and printing report 1. The datalist for all measurements appear. To enter a comment, double click here and enter comment To manually exclude a measurement from the report, click on the box and a check mark will appear 2.
  • Page 8 4B. To save as .PDF, choose Views. Then, click on the Export icon. Choose the file location and file name. Click Save As. It will automatically generate a .CSV and .PDF file and save it in the selected file location. Patient Tips 1.

This manual is also suitable for:

Tm-2441
