AMD ADA3800DAA5BV Product Data Sheet

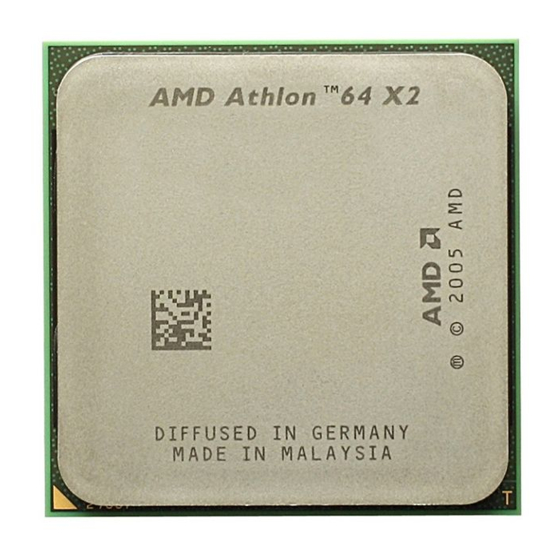

AMD Athlon™ X2
Dual-Core Processor
Product Data Sheet
• Compatible with Existing 32-Bit Code Base
– Including support for SSE, SSE2, SSE3, MMX™,
3DNow!™ technology and legacy x86 instructions
– Runs existing operating systems and drivers
– Local APIC on-chip
• AMD64 Technology
– AMD64 technology instruction set extensions
– 64-bit integer registers, 48-bit virtual addresses,
40-bit physical addresses
– Eight additional 64-bit integer registers (16 total)
– Eight additional 128-bit SSE/SSE2/SSE3 registers
(16 total)
• Dual-Core Architecture
– Discrete L1 and L2 cache structures for each core
• HyperTransport™ Technology to I/O Devices
– One 16-bit link supporting speeds up to 1 GHz (2000
MT/s) or 4 Gigabytes/s in each direction
• 64-Kbyte 2-Way Associative ECC-Protected
L1 Data Caches
– Two 64-bit operations per cycle, 3-cycle latency
• 64-Kbyte 2-Way Associative Parity-Protected
L1 Instruction Caches
– With advanced branch prediction
• 16-Way Associative ECC-Protected
L2 Caches
– Exclusive cache architecture—storage in addition
to L1 caches
– Up to 1 Mbyte per L2 cache
• Machine Check Architecture
– Includes hardware scrubbing of major
ECC-protected arrays
Publication # 43042
Issue Date: May 2007
• Power Management
–
–
–
Socket AM2 Specific Features
• Refer to the Socket AM2 Processor Functional
Data Sheet, order# 31117, for functional and
mechanical details of socket AM2 processors.
• Refer to the AMD NPT 0Fh Family Processor
Electrical Data Sheet, order# 31119, for
electrical details of socket AM2 processors.
• Electrical Interfaces
–
–
–
• Packaging
–
–
–
–
• Integrated Memory Controller
–
–
–
–
Revision: 3.00
Advanced Micro Devices
Multiple low-power states including C1E
System Management Mode (SMM)
ACPI-compliant, including support for processor
performance states
HyperTransport™ technology: LVDS-like
differential, unidirectional
DDR2 SDRAM: SSTL_1.8 per JEDEC
specification
Clock, reset, and test signals also use DDR2
SDRAM-like electrical specifications
Lidded micro PGA
31 x 31 grid array
1.27-mm pin pitch
Compliant with RoHS (EU Directive 2002/95/EC)
with lead used only in small amounts in specifically
exempted applications
Low-latency, high-bandwidth
144-bit DDR2 SDRAM controller operating at up
to 400 MHz
Supports up to four unbuffered DIMMs
ECC checking with double-bit detect and single-bit
correct
